Readable Clinical Information
IPS viewing angles, controlled brightness, AG or AR treatment and optical bonding help preserve waveform, numeric and image detail under changing room light.
Medical & Healthcare Displays
Display Interfaces Engineered for Clinical Use
Custom TFT LCD, touch, cover glass and bonded assemblies designed around clear reading, gloved operation, repeated cleaning and equipment-level electrical validation.
Glove & Fluid TouchWipe-Clean Front SurfaceOptical ClarityLong-Term Supply
ISO 13485Quality Management for Medical Device Programs
What Medical Equipment Requires
A medical display must remain usable beyond the first prototype.
The display is handled with gloves, viewed under strong clinical lighting, cleaned repeatedly and integrated into equipment with its own electrical and regulatory requirements.
Reliable Gloved Touch
PCAP firmware can be tuned for nitrile or latex gloves, stylus input, thicker cover glass and liquid rejection without making the interface unstable.
Cleaning-Compatible Surface
Antibacterial cover glass provides an easy-to-clean surface suited to clinical and surgical environments.
Controlled Product Lifecycle
Approved drawings, BOM control and PCN/EOL review support equipment programs that cannot redesign the display whenever a panel changes.
Cover Glass for Clinical Equipment
Why ordinary cover glass may not be enough.
Medical equipment adds repeated cleaning, frequent touch, strong room lighting and longer qualification cycles. The glass specification should reflect how the device will actually be used.
Designed mainly for basic protection
CleaningUsually specified for occasional wiping, without a defined clinical disinfectant or cycle requirement.
SurfaceStandard clear or printed glass; antibacterial and easy-clean properties are not normally included.
OpticalBasic transmittance and appearance, with limited control of glare under strong examination-room lighting.
IntegrationStandard outline and thickness, often without gasket, bonding or gloved-touch requirements.
Specified around hygiene and operation
CleaningMaterial and surface are selected around the specified disinfectant, wiping method and expected cleaning frequency.
SurfaceAntibacterial cover glass and optional AF easy-clean treatment support frequently touched clinical interfaces.
OpticalAG or AR treatment can control reflection while retaining the detail required for waveforms, values and images.
IntegrationStrengthened glass, custom edges, printing, optical bonding and sealed-front geometry are coordinated with touch performance.
The exact glass, coating and validation conditions are selected for each project; “medical” is not treated as a single universal material specification.
Typical Medical Equipment
Different devices require different display priorities.
The same “medical display” specification should not be copied across every device. Viewing distance, cleaning method, touch input and operating duty change with the application.
DISPLAY & TOUCH ASSEMBLYAPPLICATION CONTEXT
DISPLAY COMPONENT FOR PATIENT MONITORING

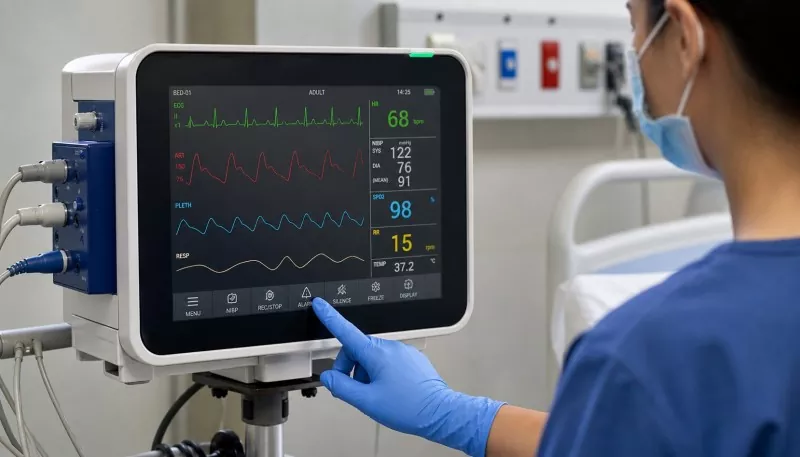

Bedside & Vital-Sign Monitors
IPS TFT and touch assemblies configured for wide-angle waveform reading, continuous operation and a sealed, wipe-clean interface.
THIN-BEZEL TFT + TOUCHAPPLICATION CONTEXT
DISPLAY COMPONENT FOR HEALTH WEARABLES

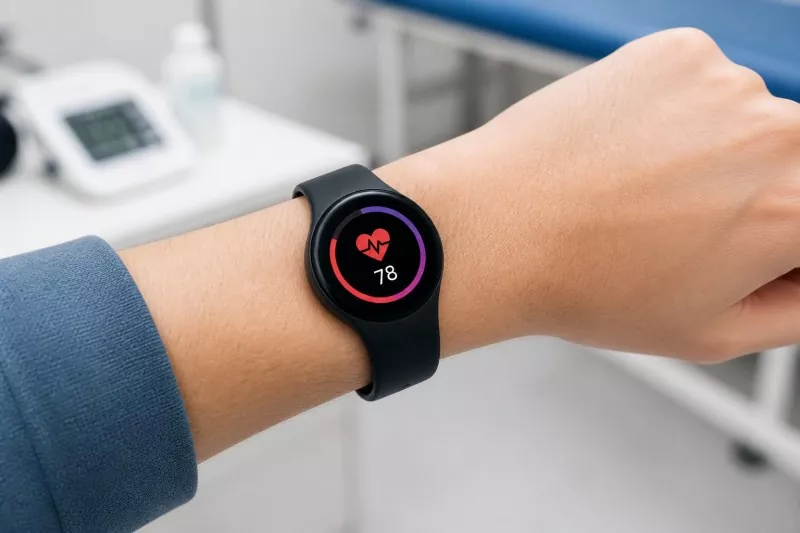

Wearable Health Monitoring
Thin-bezel round TFT and touch modules designed for a cleaner wearable appearance, low-power operation and compact mechanical integration.
DIAGNOSTIC TFT + CONTROLLER
DISPLAY COMPONENT FOR DIAGNOSTIC EQUIPMENT

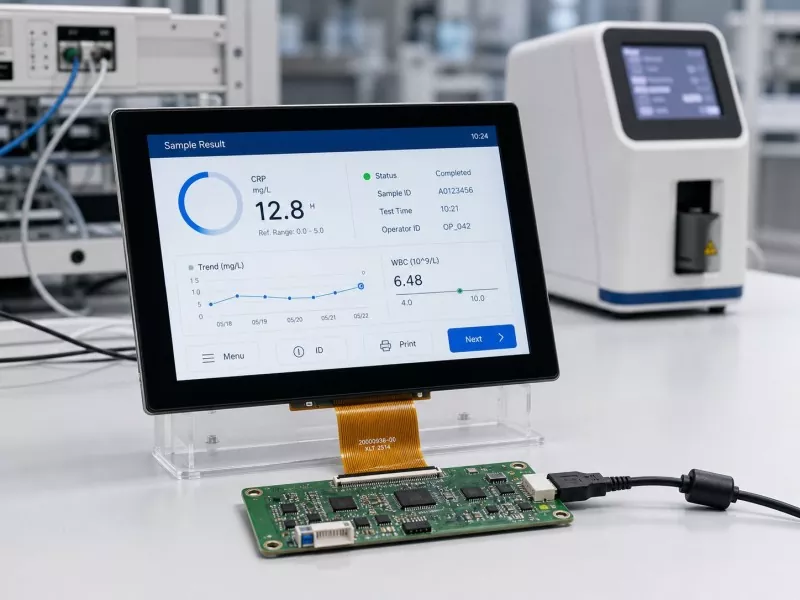

Analyzers & Diagnostic Equipment
High-contrast IPS TFT and touch assemblies configured with the required interface, controller and mechanical fit for clear result review and dependable instrument operation.
Validation Planning
Specifications are converted into checks before production.
The appropriate validation plan depends on the final device. We define the display-related checks together with the customer instead of presenting generic “medical-grade” claims without a test condition.
TOUCHGlove & liquid behaviorDefined glove material/thickness, droplets, palm rejection, stylus and intended gestures.
SURFACEHygiene & cleaningAntibacterial cover glass and an easy-to-clean front surface designed around the intended clinical environment.
OPTICALReadabilityLuminance, viewing angle, reflection, haze, color or grayscale requirements under stated lighting.

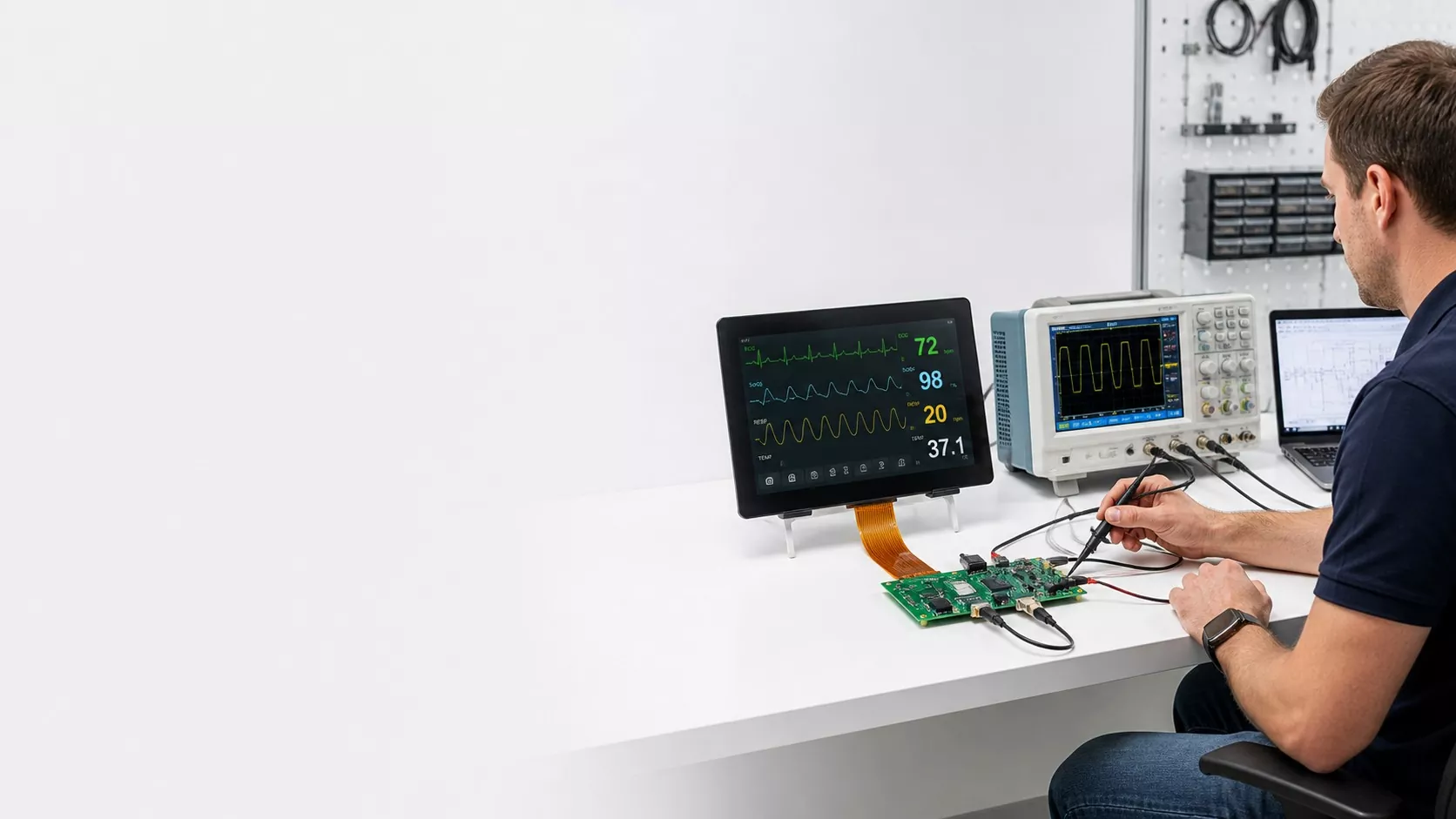

ELECTRICALSystem integrationInterface timing, grounding, shielding, EMI/EMC and ESD response within the complete equipment.
MECHANICALAssembly integrityStack-up, mounting, gasket compression, cover-lens tolerance and bonding appearance.
LIFECYCLEProduction continuityGolden sample, approved BOM, inspection criteria, PCN/EOL control and replacement evaluation.
Developing a medical display interface?
Share the equipment type, display size, glove and cleaning requirements, interface and project stage.
