Victronix VXT700WHA-04: a high brightness wide temperature 7.0-inch 800 x 480 TFT LCD module, and two numbers define it. It delivers 1000 cd/m2 typical surface luminance from a 27-LED backlight at 27 V and 180 mA for the stated 4.86 W, putting it in daylight-readable territory, and it carries an operating range of -30 to +85 C with storage at -40 to +90 C. Driven by HX5281 over LVDS on a 40-pin 0.5 mm Hirose FH52-40S-0.5SH connector, it is transmissive and normally black with an ALL viewing direction, 16.7M colours, contrast 800 minimum and 1400 typical, response 25 ms typical and 35 ms maximum, uniformity 80 per cent minimum. ESD is the strongest in the range at 8 kV contact and 15 kV air. Brightness is stated at 1000-1100cd/m2.

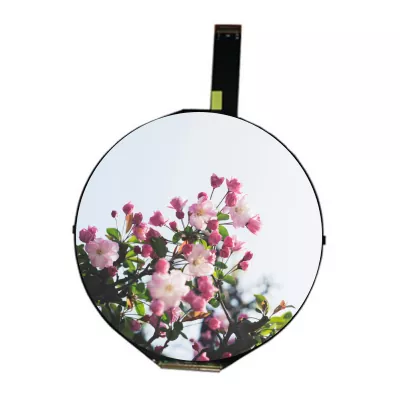

Victronix is a professional TFT module manufacturer and supplier in China. We have been in this field for 18 years and developed several models. This Victronix 3.4 inch 800x800 Round IPS TFT Module features 800×(RGB)×800 pixel resolution within an 87.6×87.6 mm active area, supporting up to 16.7 million colors for rich, detailed imagery. Combining exceptional optical performance with robust reliability, this display solution delivers crisp visuals across extreme operating conditions.

This 3.9-inch 480x128 TFT module is a bar display — a 3.75:1 stretched panel, the only one of its shape in our range — and the brightest module we make at 1000 cd/m² typical. A narrow strip suits a line of text, a row of readouts or a status bar, and 1000 cd/m² keeps it legible under strong light. It is transmissive with 16.7M colours, an ST7282A driver and an ALL viewing direction, so mounting can be decided mechanically. A full frame is only 120 KB, so most microcontrollers need no external RAM. Rated -20 to +70°C.

The VXT350HQS-01X-W is a 3.5-inch TFT LCD module with 320x240 QVGA resolution and an anti-glare top polarizer — the only module in our range that specifies one. Combined with all-direction viewing and no grayscale inversion, it stays readable wherever the operator stands and wherever the light comes from, without spending brightness or backlight life on the problem. Rated -30 to +85°C, with 24-bit RGB for video and a separate SPI channel for configuration.

The VXT430BPSA-04 is a 4.3-inch high-brightness TFT LCD module built for equipment that works outdoors or in harsh industrial environments. Two ratings define it: a bright backlight driven harder than standard, and a -30 to +80°C operating range that covers sealed enclosures in summer and unheated installations in winter. The brightness has a price — the same 16-LED array lasts 20,000 hours here against 50,000 in our standard-brightness module. Supplied without touch, with 24-bit RGB888 and 16 LEDs at 24 V.

The VXT430HPWA-03C is a 4.3-inch TFT LCD module with 480x272 resolution and integrated capacitive touch, wired as two independent subsystems: the display runs on its own 40-pin interface and VDD rail, while the FT5446 touch controller has a separate 6-pin FPC and its own VDD-CTP supply. That lets you power the display down and keep touch alive, or reset touch without touching the display. Rated 850 cd/m² and -30 to +85°C, it suits outdoor handheld terminals, field instruments and portable equipment.
