Standard TFT LCD Modules for Fast and Flexible Product Development
Victronix offers a broad range of standard TFT LCD modules for industrial equipment, medical devices, smart-home products, payment terminals, office automation, health-monitoring equipment and other embedded applications.
Our standard TFT LCD portfolio includes multiple display sizes, resolutions, viewing technologies and interface options. Customers can select suitable modules according to the required display area, system interface, viewing angle, brightness, operating temperature and mechanical dimensions.
Standard modules can also be integrated with capacitive or resistive touch screens, custom cover lenses, FPCs, connectors and controller boards. Our engineering team supports model selection, compatibility evaluation, sample testing and transition to mass production.
Customization Based on Standard TFT Platforms
Based on selected standard TFT LCD platforms, Victronix can evaluate customization of the backlight, FPC, connector, touch screen, cover lens and display assembly. Using an existing display platform can help reduce development time and tooling requirements compared with a fully customized display.
Benefits of Standard TFT LCD Module
Choose from proven standard TFT LCD platforms to simplify display selection, accelerate product evaluation and support flexible integration.
Products
- View as
15.6 inch 1920x1080 IPS TFT LCD
The VXT156HX1B-01 is a 15.6-inch VA TFT LCD combining high static contrast with a Full HD widescreen format. Wide viewing angles, an anti-glare surface and dual-channel LVDS support integration into indoor monitors and information terminals.
Read MoreSend Inquiry
7.0" 800x480 LVDS IPS TFT LCD Module, 40-pin
Where a display can be mounted is usually decided by mechanics, then corrected in software. The Victronix VXT700KWSA-01 removes that second step. Two dedicated pins — L/R on pin 33 and U/D on pin 34 — flip the image horizontally and vertically in hardware, so the same module works upright, upside down, behind a mirror, or viewed through a periscope without touching a line of framebuffer code or paying the performance cost of software rotation. The 7.0-inch 800x480 panel runs on an ST7277 driver over single-channel LVDS on a 40-pin connector, brightness is controlled by a dedicated LED_PWM pin, and STBYB puts the panel into standby for power-sensitive products.
Read MoreSend Inquiry

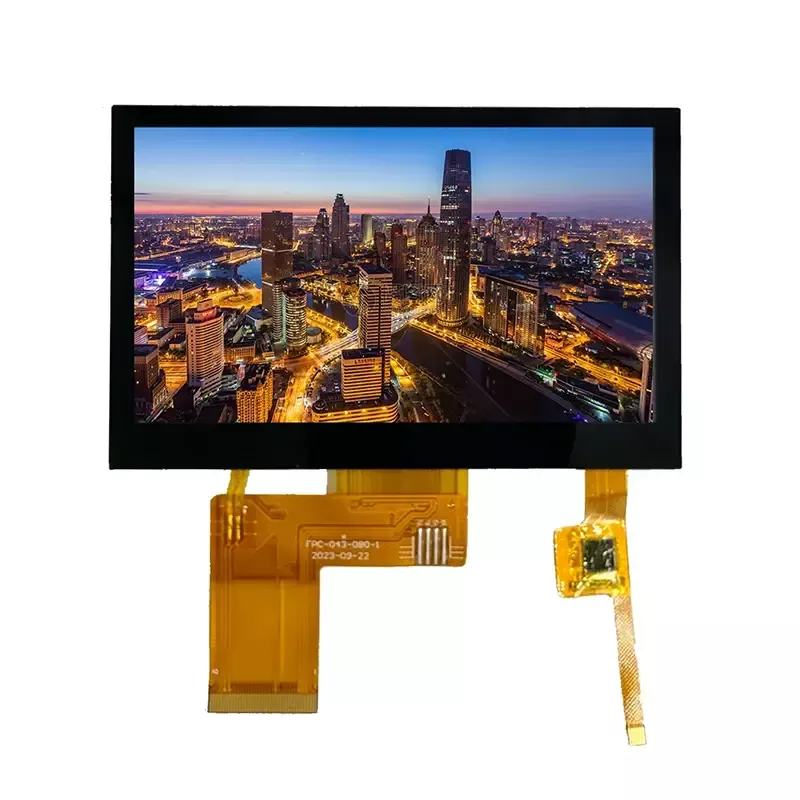

4.3" 480x272 Capacitive Touch TFT LCD Module
This Victronix 4.3 inch 480x272 IPS TFT Module with CTP is a high-performance 4.3-inch TFT LCD module designed for demanding embedded and industrial applications. Combining a bright display with responsive multi-touch functionality, this module delivers exceptional visual clarity and user interaction in a compact form factor.
Read MoreSend Inquiry

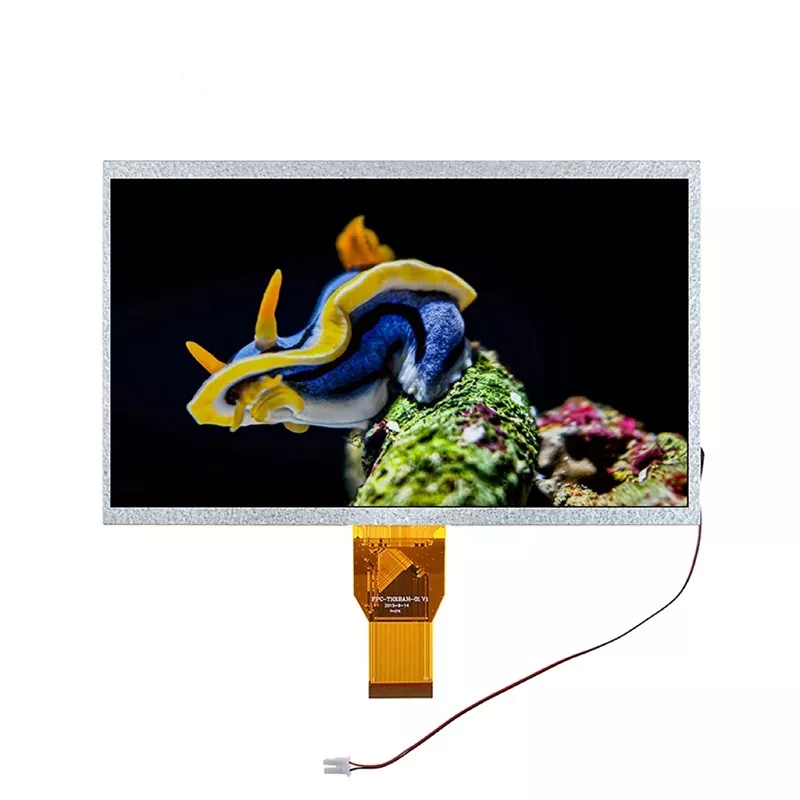

10.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-02
The VXT101MBAH-02 is a 10.1-inch TFT module with a 4-lane LVDS interface — the differential interface in our range. At 1024x600 with 16.7M colours, a parallel RGB bus would need around 28 signal lines switching at pixel-clock rates; LVDS carries the same payload over four data pairs and one clock pair, ten wires, with lower emissions and tolerance of real cable distance. It is a native 16:9 panel with a 222.72 x 125.28 mm active area, 380 cd/m² and 500:1 contrast. It needs five supply rails and 1.17 MB of external frame memory. Rated -20 to +70°C.
Read MoreSend Inquiry

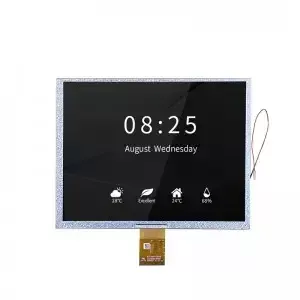

10.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-01
The VXTA40CAH-01 is a 10.4-inch TFT in 4:3 — the format industrial and medical equipment has been built around for twenty years. Its active area of 211.2 x 158.4 mm is the standard 10.4-inch size, so it drops into a cutout originally cut for a panel of this class, and legacy software written for 800x600 does not letterbox. It is bright at 650 cd/m² typical with a 520 minimum, uses an anti-glare polarizer for factory lighting, and ships without touch so it pairs directly with our 10.4-inch capacitive touch panel. The documentation is also unusually complete: ten reliability test items each citing its IEC and GB standard, a 50,000-hour MTBF, and inspection criteria given in millimetres. 24-bit RGB on 60 pins, -20 to +70°C.
Read MoreSend Inquiry

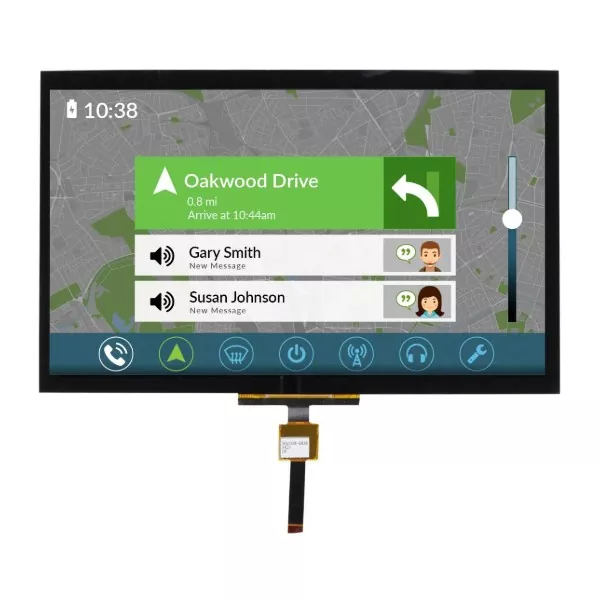

10.1 Inch 1280x800 IPS TFT LCD Module with Capacitive Touch MIPI - VXTA10BXH-01C
The VXTA10BXH-01C is a 10.1-inch 1280x800 TFT with an integrated capacitive touch panel, driven over 4-lane MIPI DSI. Against our 10.4-inch 800x600 module it carries 2.1 times the pixels through 35% fewer pins — 39 instead of 60, and 32 functional instead of 43 — because four differential pairs move the whole image. Touch is on the module with an FT5426, so there is no separate flex to route. The backlight has PWM in and PWM out, so dimming is handled on the module rather than in your firmware. It is 16:10 at 150 PPI, anti-glare, with 80° viewing in all four directions and no gray scale inversion — together the signature of an IPS cell. Contrast is 700 minimum. The document has real problems, listed here: an active-area figure that does not reconcile, a touch controller with no I2C pins, and a brightness figure with no minimum.
Read MoreSend InquiryNeed Help Selecting a Standard TFT LCD Module?
Tell us your required display size, resolution, interface, brightness, operating temperature, touch function and application. Our engineering team will help identify a suitable standard TFT LCD module or evaluate a customized alternative.
