Custom Touch Screen Solutions with Cover Lens and Display Integration
Victronix provides custom projected capacitive and resistive touch screens for industrial equipment, medical and health-monitoring devices, automotive systems, smart-home products, payment terminals, office automation and wearable applications.
Explore capacitive and resistive touch panels for embedded applications. Browse the models below and select a touch solution based on your display size, input method and operating environment. For a complete display assembly, TFT LCD integration is also available.
Products
- View as

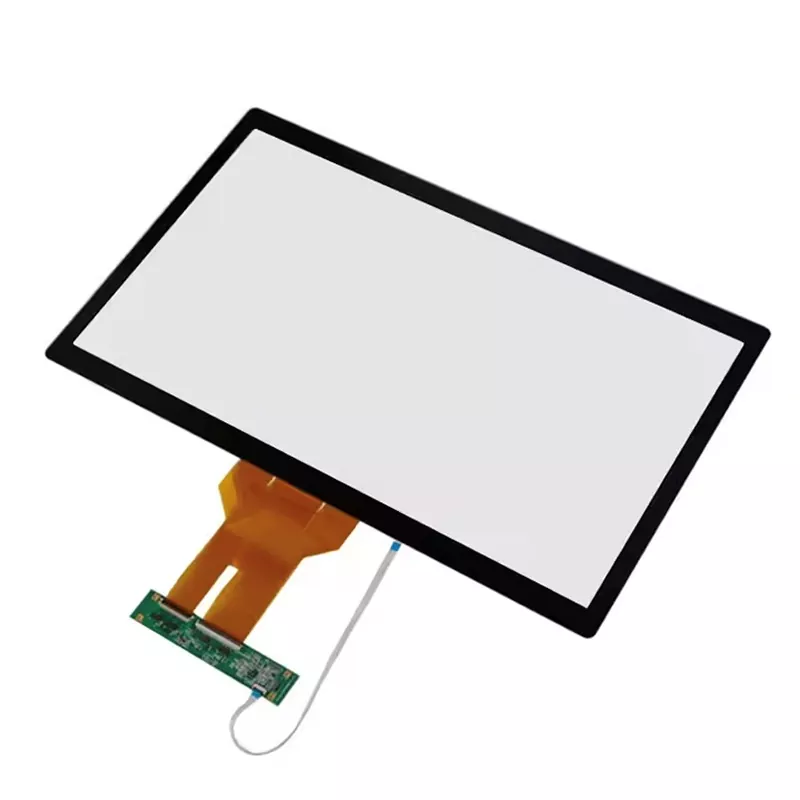

23.8 Inch G+G Capacitive Touch Panel with AGC or Corning Glass - CTP-VX238B5696-GG
The CTP-VX238B5696-GG is a 23.8-inch capacitive touch panel in G+G
construction, supplied as a standalone component for bonding to a display.
It is offered with either AGC or Corning cover glass, and the difference is
measurable — Corning withstands roughly two and a half to three times the
impact energy in drop-ball testing. Transmittance is at least 85% with ≥6H
surface hardness, response is ≤12 ms, and it runs from 2.8 to 3.3 V. Built
for kiosks, interactive displays, POS and self-service terminals.
Read MoreSend Inquiry

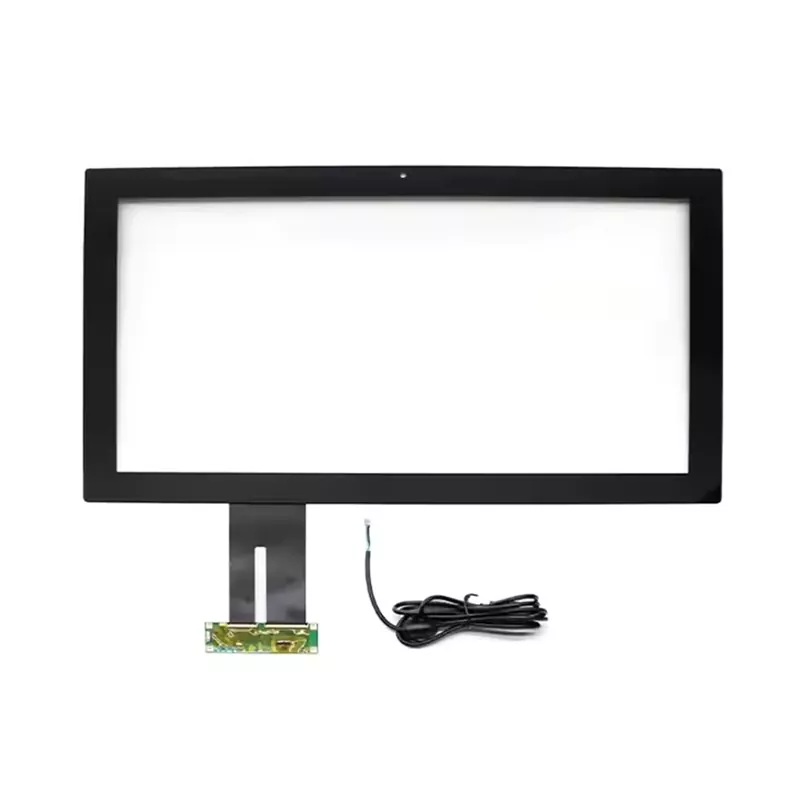

21.5 Inch G+G Capacitive Touch Panel for 1920x1080 Displays - CTP-VX215A5698-GG
The CTP-VX215A5698-GG is a 21.5-inch capacitive touch panel in G+G
construction, sized for 1920x1080 displays and for the enclosures, VESA
mounts and kiosk cabinets already built around that format. It adds touch
to an existing panel instead of replacing the whole assembly. Transmittance
is at least 85% with ≥6H surface hardness, response is ≤12 ms, and it runs
from 2.8 to 3.3 V. Suited to kiosks, POS, industrial HMI and education
displays, and to retrofitting touch onto existing 21.5-inch hardware.
Read MoreSend Inquiry

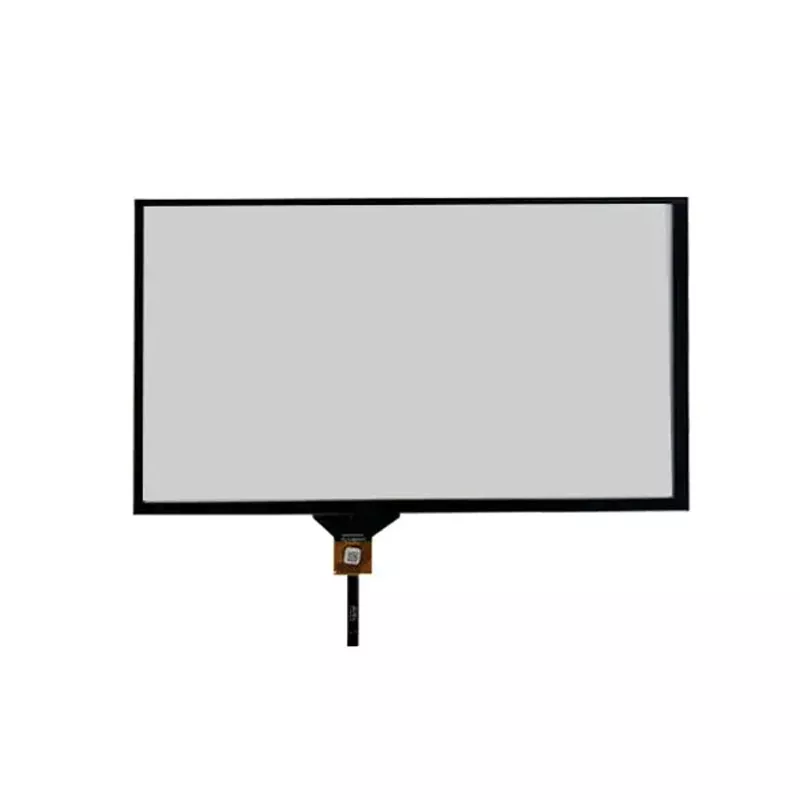

15.6 Inch G+G Capacitive Touch Panel for Portable and Laptop-Class Devices - CTP-VX156B5544-GG
The CTP-VX156B5544-GG is a 15.6-inch capacitive touch panel in G+G
construction, built for laptop-class and portable equipment rather than
fixed kiosks. Note for buyers: at 15.6 inches it is inspected in the
10.1–17 inch cosmetic tier, which is about 25% stricter than the tier used
for 21.5-inch and larger panels. Transmittance is at least 85% with ≥6H
hardness, response is ≤12 ms, and it draws just 12–14.5 mA — low enough for
battery-powered devices. Suited to portable terminals, medical carts,
industrial laptops and handheld HMI.
Read MoreSend Inquiry

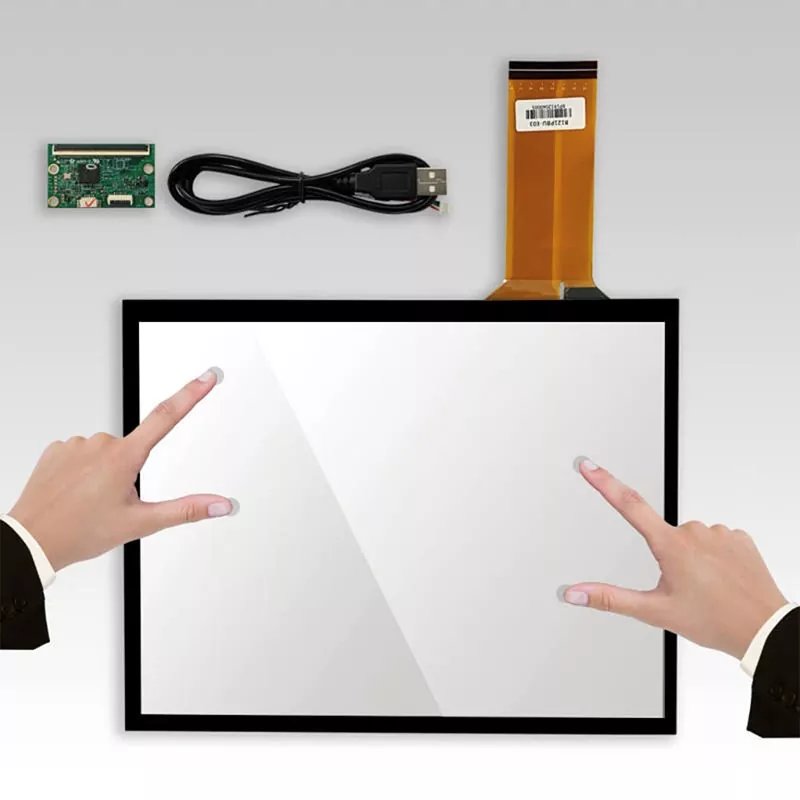

12.1 Inch G+G Capacitive Touch Panel with 1.8mm Cover Glass - CTP-VX121B5563-GG
The CTP-VX121B5563-GG is a 12.1-inch capacitive touch panel in G+G
construction with a 1.8 mm cover glass — the thickest in our range, about
1.6 times the usual 1.1 mm — bonded to the sensor with 0.2 mm SCA rather
than a foam gasket. That combination is built for unattended and
high-abuse installations. Transmittance is at least 85% with ≥6H hardness,
and the total stack is 2.7 mm. Suited to industrial HMI, outdoor kiosks,
transport terminals and medical equipment.
Read MoreSend Inquiry

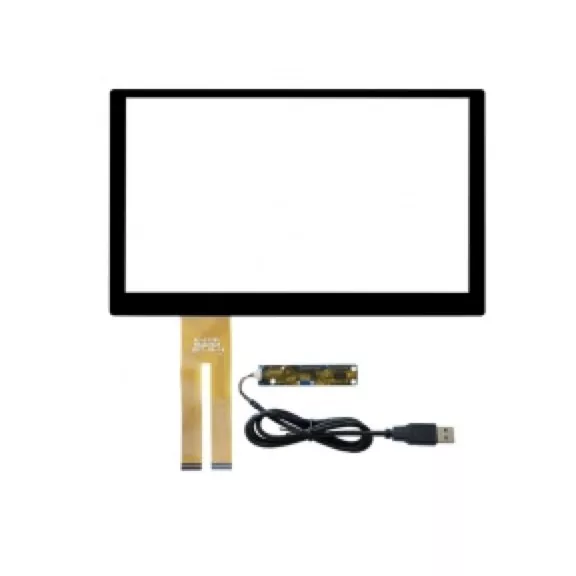

11.6 Inch G+G Capacitive Touch Panel for 1366x768 Displays - CTP-VX116B5741-GG
The CTP-VX116B5741-GG is an 11.6-inch capacitive touch panel in G+G
construction, sized for 1366x768 displays. Transmittance is at least 85% with ≥6H
hardness, response is ≤12 ms. Suited to portable terminals, industrial
tablets, POS, medical devices and vehicle displays.
Read MoreSend Inquiry

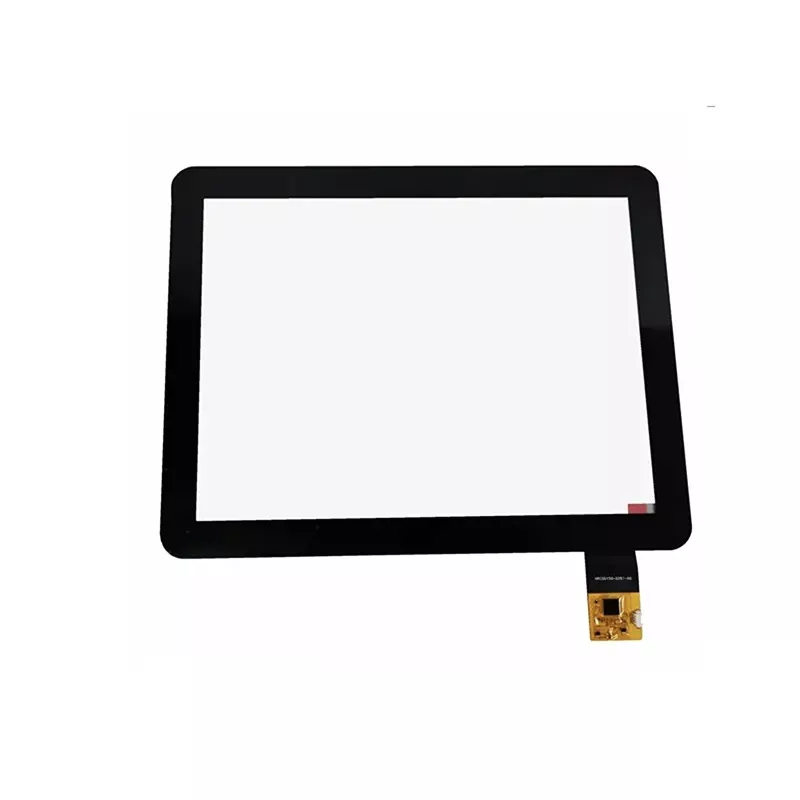

10.4 Inch G+G Capacitive Touch Panel for 1024x768 Industrial Displays - CTP-VX104B5747-GG
The CTP-VX104B5747-GG is a 10.4-inch capacitive touch panel in G+G
construction, sized for the 1024x768 industrial panels that a great deal of
equipment was built around — so it is usually bought as a replacement rather
than a new design. At 10.4 inches it sits just past the 10.1-inch boundary
in the inspection standard, making it one cosmetic tier more permissive than
sub-10-inch panels. Transmittance is ≥85% with ≥6H hardness, response ≤12 ms.
Suited to industrial HMI, medical devices, CNC controls and legacy upgrades.
Read MoreSend InquiryCapacitive and Resistive Touch Options
Projected capacitive touch panels support responsive finger input and multi-touch gestures with a compatible controller. Resistive touch panels respond to pressure and can be operated with a finger, gloved hand or suitable stylus.
The right technology depends on your operating environment, user interaction requirements and device structure. Glove operation, moisture tolerance and resistance to electrical interference should be evaluated for the selected configuration.
Customization for Your Product
Touch-screen customization options include cover glass dimensions, shape, thickness, border printing and surface treatments. FPC routing, connectors and controller configuration can also be reviewed to suit your enclosure and host system.
Anti-glare, anti-reflection and anti-fingerprint treatments are available for selected materials and processes. Our team can help evaluate suitable combinations for your application.
Touch Screen and TFT LCD Integration
We can help match the touch panel to your TFT LCD module, considering the active area, viewing area, mechanical dimensions and mounting requirements.
Integration options include custom cover glass, controller configuration and optical bonding. Please provide your display datasheet and mechanical drawing so we can review compatibility and assembly requirements.
Engineering Support from Samples to Production
Our engineering team supports requirement evaluation, sample development and integration testing before mass production. Sample evaluation helps confirm mechanical fit and touch performance in the finished device.
Please tell us about any special requirements, including glove use, moisture exposure, electrical noise, cleaning methods and operating temperature.
Discuss Your Touch Screen Project
Send us your required touch size, preferred touch technology, display model, cover glass drawing and host interface. Include your application, estimated quantity and target schedule so we can review suitable options and the next steps.
