1.3 Inch 240x240 Square TFT LCD Module 4-Wire SPI - VXT130HSS-02

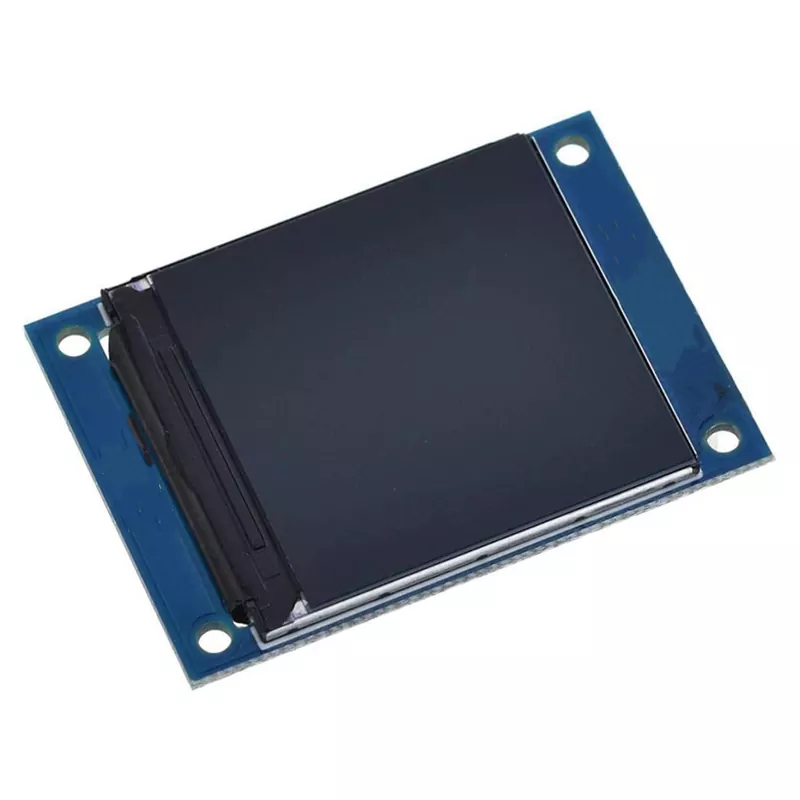

  • 1.3 Inch 240x240 Square TFT LCD Module 4-Wire SPI - VXT130HSS-021.3 Inch 240x240 Square TFT LCD Module 4-Wire SPI - VXT130HSS-02

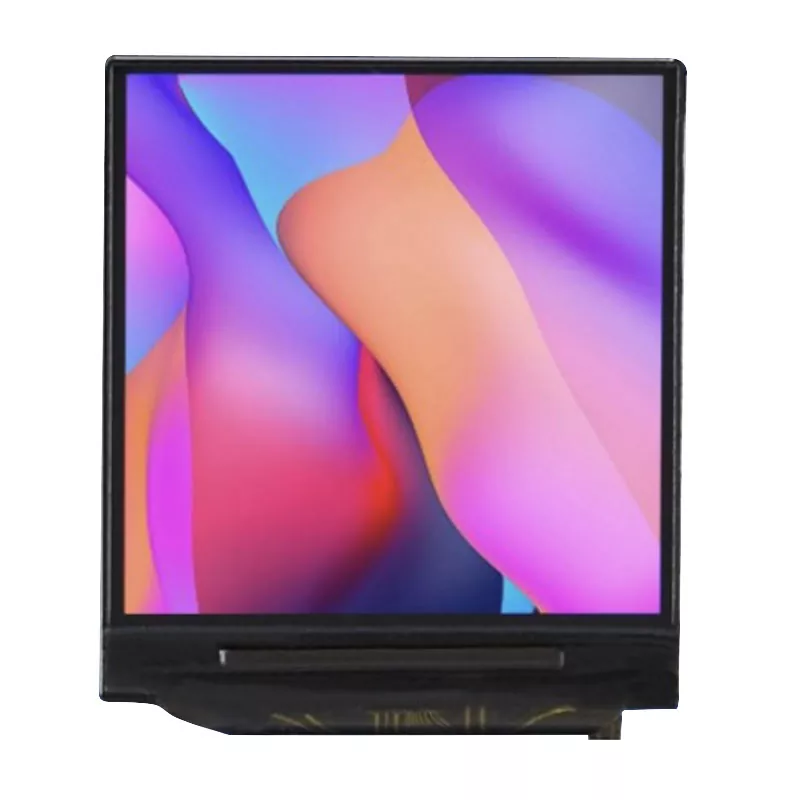

  • 1.3 Inch 240x240 Square TFT LCD Module 4-Wire SPI - VXT130HSS-021.3 Inch 240x240 Square TFT LCD Module 4-Wire SPI - VXT130HSS-02

1.3 Inch 240x240 Square TFT LCD Module 4-Wire SPI - VXT130HSS-02

This Victronix 1.3 inch 240x240 TFT Module is a high-quality 1.3 inch diagonal active area (23.4 mm × 23.4 mm) with 240×240 RGB resolution and a fine pixel pitch of 0.0975mm, delivering crisp visuals in a space-efficient footprint (26.16 mm × 29.13 mm × 2.30 mm).

Model:VXT130HSS-02

Send Inquiry    PDF DownLoad

Product Description

General Information

Item Value
Model VXT130HSS-02, VER.01
LCD type TFT / Transmissive
Controller ST7789V2 (Sitronix, COG)
Colours 262K — 18-bit (RGB666)
Viewing direction ALL — confirmed by four identical 80° angles
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C — properly wider
Module size 26.16 × 29.13 × 2.30 mm
Active area 23.40 × 23.40 mm — 5.48 cm² — exactly square
Pixel pitch 0.0975 × 0.0975 mm — exactly square
Resolution 240 × 240
Interface 4-Wire SPI — SCK 9, MOSI 10, MISO 11, D/C 12, CS 13
Backlight control LED_PWM 3, LED_EN 4
Supply VDD 2.4 / 3.3 / 3.4 V (analog); VDDIO 1.65 / 3.3 / 3.4 V (logic)
Brightness 800 min / 1000 typ / 1400 max cd/m²
Contrast 600 min / 800 typ
Response TON + TOFF 30 typ / 35 max ms — one row
Viewing angle 80° at all four directions — typical only
Uniformity 80% — column ambiguous
CIE 1931 All eight with min/typ/max — R 0.619/0.357, G 0.346/0.566, B 0.146/0.148, W 0.339/0.378
Backlight 3 LEDs — 3P1S, 3.1 V per LED, 20 mA each, 60 mA total
Backlight voltage 2.8 / 3.1 / 3.4 V
Backlight current 60 mA typical only
Backlight power 0.186 W — stated, matches exactly
Backlight life 30,000 min / 50,000 typ h
MTBF 50,000 hours

Where It Gets Used

  • Smart bracelets and fitness bands — a 240 × 240 square panel at 260.5 PPI, 0.186 W of backlight, and 112.5 KB of frame buffer.
  • Compact square smart watches — the square active area wastes nothing on a square or round UI.
  • High-brightness wearables for outdoor use — 800 cd/m² minimum with an anti-glare polarizer.
  • Wearable medical and monitoring devices — small, thin, low power, with TE for tear-free updates.
  • Handheld and portable instruments — testers, analysers and meters where the host has few pins and SPI is the only bus available.
  • Portable gas and environmental detectors — bright enough to read outdoors, small enough to wear.
  • Smart home control panels and control knobs — a small square display for status, icons and a compact menu.
  • Access control and intercom door stations — a compact panel for a keypad or directory view.
  • Appliance and equipment sub-displays — a secondary panel where 2.3 mm and 26 × 29 mm matter.
  • Any design where the host has run out of peripherals — four SPI wires plus two control lines, and no external frame memory.

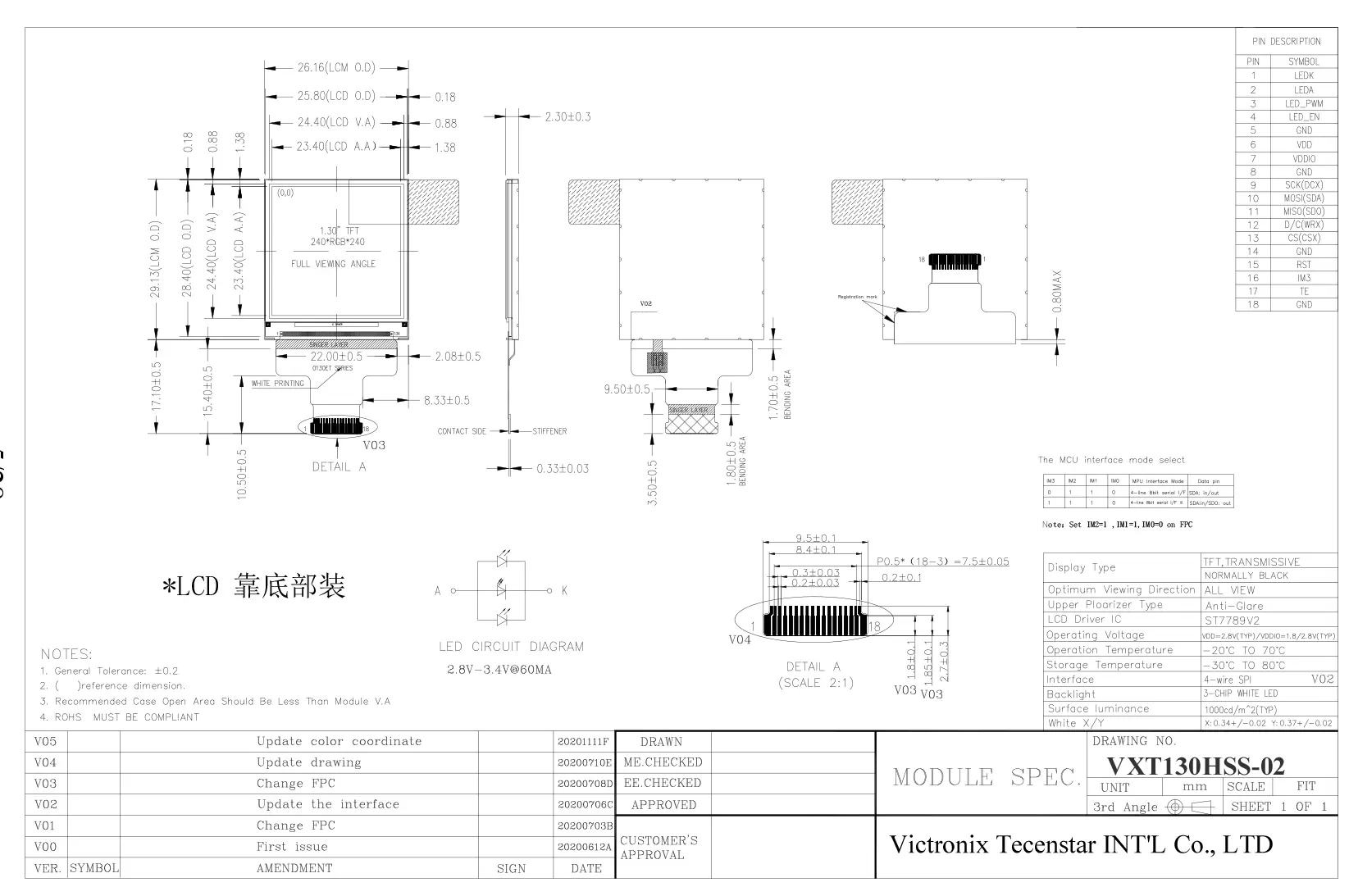

Outline Drawing

1.3 inch 240x240 TFT Module
