7 inch 800x480 High Brightness Wide Temperature TFT LCD Module 1000 cd/m2 LVDS - VXT700WHA-04

1000 cd/m² — What It Buys You

1000 cd/m² changes where this panel can be used. It is the difference between a display that washes out and one you can still read:

An outdoor kiosk or ticketing machine, behind a cover lens, in daylight.

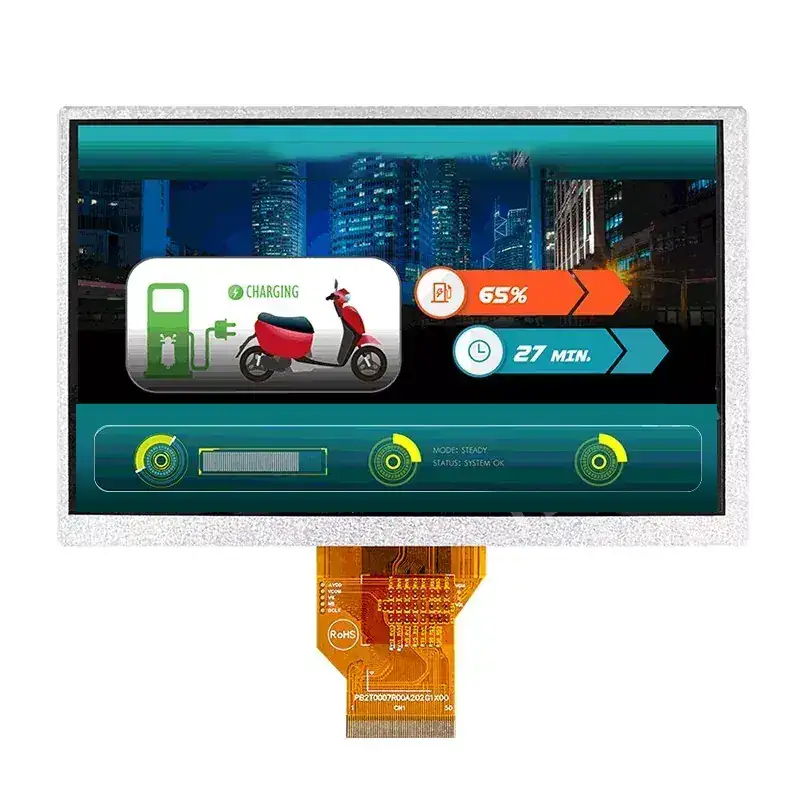

An EV charging station or outdoor payment terminal — unshaded by definition.

A vehicle or marine console behind glass, where solar gain is the enemy.

A factory floor panel under high-bay lighting.

Any enclosure where you would otherwise need a transflective panel.

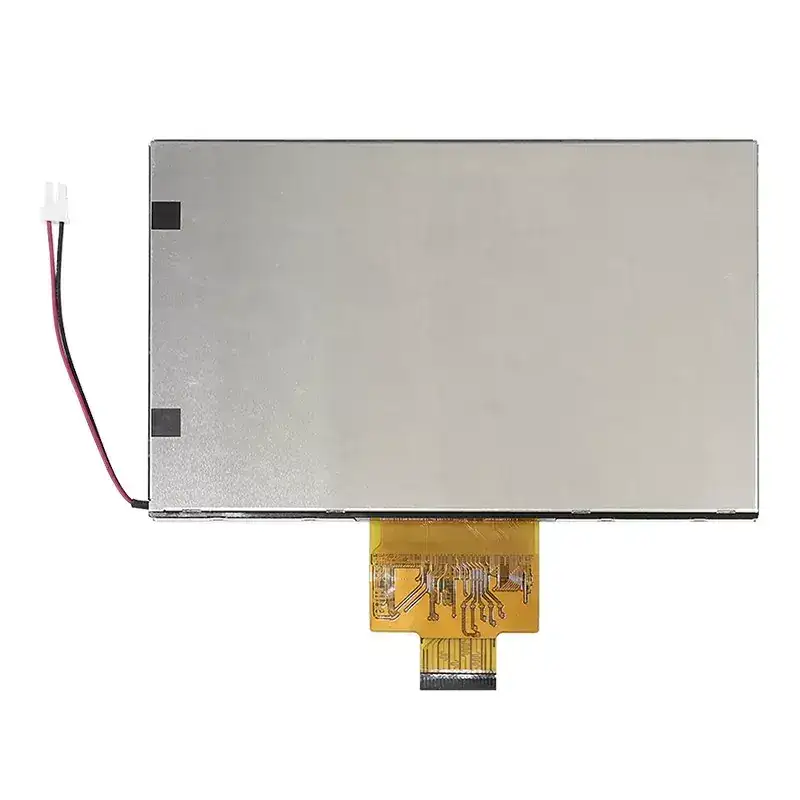

The cost is power. At 4.86 W the backlight is roughly sixteen times the 0.297 W logic figure. Budget for it, and for the heat it puts into a sealed enclosure — which is exactly why this module brings an NTC thermistor out on two pins.

Where It Gets Used

• Outdoor kiosks and ticketing machines — 1000 cd/m² behind a cover lens, in daylight.
• EV charging stations and outdoor payment terminals — unshaded by definition.
• Vehicle, truck and agricultural machinery consoles — solar gain behind glass.
• Marine instrument consoles — a sealed helm in direct sun.
• Factory automation panels under high-bay lighting, or near heat sources.
• Sealed enclosures with no airflow — with the NTC thermistor protecting the backlight.
• Cold stores, unheated warehouses and outdoor northern installations — the −30 °C floor is the point.
• Industrial HMI in hot environments — −30 to +85 °C, with the storage range properly wider.
• Test and measurement, medical and portable instruments — where 800:1 contrast and 71.7% NTSC help dense readouts.
• Retrofits of existing 7.0-inch 800 × 480 equipment — the standard WVGA size, with a brightness and temperature upgrade.

Wide Temperature — Done Correctly

Every one of the eleven reliability tests sits on or inside the module's own stated ratings. That is rare, and it tells you the rating and the test programme were produced together.

ESD is the strongest in this range: Contact ±8 kV, Air ±15 kV, at 330 Ω / 150 pF, 1 second, 9 points, 10 times per point — against ±2 kV human-body-mode on several modules here. Plus 100 G mechanical shock.
