10.1 Inch 1280x800 TFT LCD Module with CTP HDMI Interface - VXT101IEWA-03-B
  • 10.1 Inch 1280x800 TFT LCD Module with CTP HDMI Interface - VXT101IEWA-03-B10.1 Inch 1280x800 TFT LCD Module with CTP HDMI Interface - VXT101IEWA-03-B

10.1 Inch 1280x800 TFT LCD Module with CTP HDMI Interface - VXT101IEWA-03-B

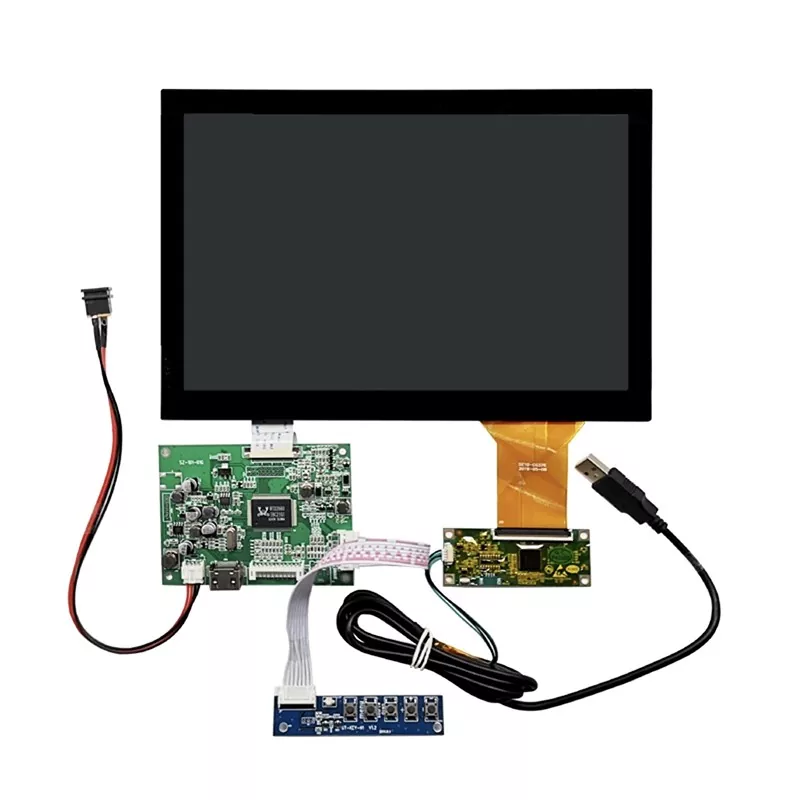

This Victronix 10.1 inch 1280x800 HDMI TFT Module is a high-performance 10.1 inch TFT-LCD module for superior visual clarity and responsive interaction. Designed with a crisp 1280×800 resolution, this module delivers sharp imagery and clear text, ideal for industrial control panels, embedded systems, digital signage, and interactive kiosks.

Model:VXT101IEWA-03-B

Send Inquiry    PDF DownLoad

Product Description

General Information

Item Value
Model VXT101IEWA-03-B
Title block description 10.1 inch TFT with CTP
LCD type 10.1 TFT, Normally black
Interface HDMI — 19-pin female, SMT, type A
HDMI signals TMDS Data 0/1/2 + clock, CEC, SCL, SDA, DDC/CEC GND, VDD, HPD
Viewing direction U/L/D/R 85/85/85/85
Driver IC "EK/9202"
Luminance 1060 cd/m² typical
Operating temperature −30 ~ +85 °C
Storage temperature −30 ~ +85 °C
Module outline 229.46 × 149.10 mm — tolerance reads ±0.3 or ±0.5
Active area 216.96 × 135.60 mm — 294.20 cm²
Pixel pitch 0.1695 × 0.1695 mm — exactly square
Resolution 1280 × 800
Thickness ≈ 5.80 mm
VHB tape 3M 5604, T = 0.4 mm
Backlight IF = 360 mA, VF = 19.6 ~ 22.4 V
Backlight power 7.56 W (derived, mid-range); 7.056 – 8.064 W span
FPC connector CN: F62240-H1210A — no pin-out


Why this matters more than any optical figure

Every other module in this range asks you to build something. The LVDS panels need an LVDS transmitter and the right data mapping. The RGB panels need 24 data lines and a peripheral that can drive them. The MCU and SPI panels need an initialisation sequence and a frame buffer.

This one needs a cable. Plug it into a Raspberry Pi, a mini PC, an Android box, an industrial SBC or a laptop, and it reads its EDID over the DDC channel and comes up.

Where It Gets Used

  • Single board computer projects — Raspberry Pi, Orange Pi and similar, where HDMI is the only display output available.
  • Portable and field monitors — 1060 cd/m² with a single 12 V rail, for site work and outdoor commissioning.
  • Industrial HMI and machine control panels — no driver board, no LVDS transmitter, no mapping to get wrong.
  • Kiosk and self-service terminals — HDMI plus a capacitive touch panel, with 85° viewing in every direction.
  • Vehicle and marine displays — a 12 V input matches a vehicle electrical system directly, and −30 to +85 °C covers the environment.
  • Medical carts and clinical terminals — plug-and-play with a standard host.
  • Control room and SCADA operator stations — HDMI distribution over standard cabling.
  • Test and measurement equipment — 1280 × 800 for waveforms and dense readouts, driven from any PC.
  • Digital signage and information displays — HDMI distribution, hot-plug capable.
  • Any project without display engineering resource — this is the module that removes the display interface from the critical path.


Outline Drawing

10.1 inch 1280x800 HDMI TFT Module
