10.1 inch HD Capacitive Touch IPS TFT Module
  • 10.1 inch HD Capacitive Touch IPS TFT Module10.1 inch HD Capacitive Touch IPS TFT Module

10.1 inch HD Capacitive Touch IPS TFT Module

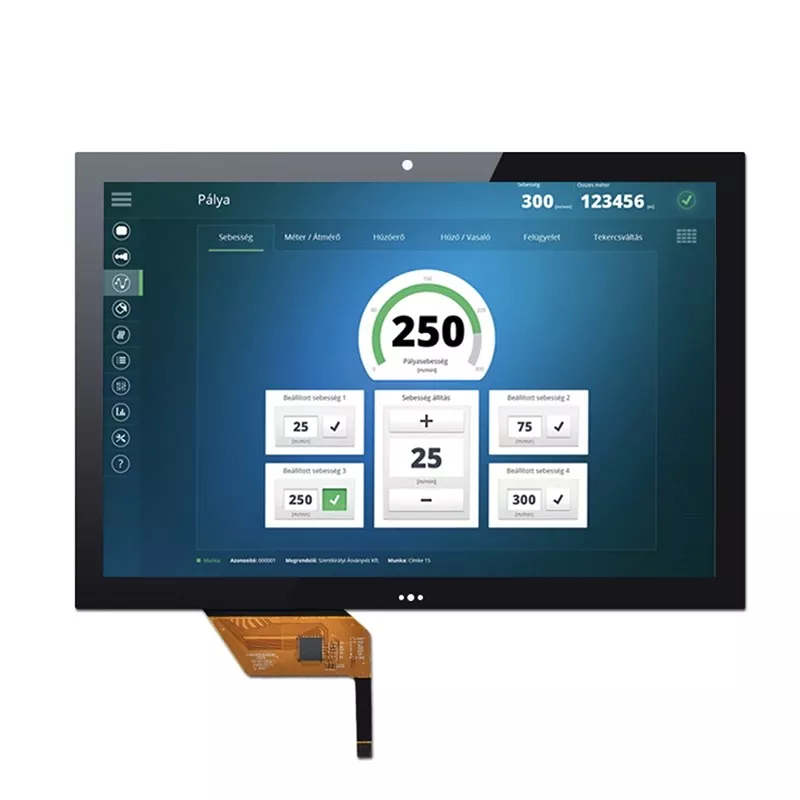

This Victronix 10.1 inch HD Capacitive Touch IPS TFT Module is a high-performance 10.1 inch TFT-LCD module integrating an IPS panel, capacitive touch (CTP), and LVDS interface for superior visual clarity and responsive interaction. Designed for industrial and embedded applications, this module delivers vibrant visuals, wide viewing angles, and robust reliability. As a professional manufacturer and supplier of TFT modules in China, Victronix 10.1 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT101QIH-07C

Send Inquiry    PDF DownLoad

Product Description

General Information

Item Value
Model VXT101QIH-07C
LCD type TFT / Transmissive
Display state NORMALLY BLACK
Display colours 16.7M — supported by 4 LVDS data channels
Viewing direction Free view / ALL VIEW — confirmed by four identical 80° angles
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C
Active area 216.96 × 135.60 mm — 294.2 cm² — confirmed on the drawing
Pixel pitch 0.1695 × 0.1695 mm — exactly square
Resolution 1280 × 800 (WXGA)
Interface LVDS — 4 data channels + 1 clock
CTP connector 6-pin, 0.5 mm pitch, 2.5 mm span — P0.5 × (6 − 1) = 2.5 ± 0.05
CTP driver GT928
Input thresholds VIL 0 to 0.2 VDD; VIH 0.8 VDD to VDD — 0.5 / 2.0 V at 2.5 V
Clock frequency 71 MHz typical — consistent with standard 1280 × 800 at 60 Hz
Brightness 250 cd/m² typical
Contrast 300 min / 500 typ
Response Tr 10 ms, Tf 15 ms — separately stated, asymmetric
Viewing angle 80° at all four directions — typical only
Uniformity 70% min
CIE 1931 All eight — W 0.28/0.33, R 0.51/0.34, G 0.31/0.56, B 0.15/0.14
Backlight 30 LEDs — 3S10P, 3.0 V per LED, 20 mA per string
Backlight voltage 9.0 V
Backlight control LED_PWM 27, CABC_EN 37


Where It Gets Used

  • Industrial HMI and machine control panels — 1280 × 800 with capacitive touch, and LVDS for the cable run.
  • Industrial panel PCs and operator stations — 1 megapixel is enough for a full SCADA screen.
  • Medical monitors and patient monitors — a 10.1-inch clinical format with a touch surface that can be wiped down.
  • Test and measurement equipment — 1,024,000 pixels for waveforms, traces and dense readouts.
  • POS and retail terminals — capacitive touch, 80° viewing from all sides for a customer-facing screen.
  • Kiosk, ticketing and vending terminals — a public touch surface with a 300:1 contrast floor.
  • Car rear-seat and headrest monitors — 16:10 and 80° viewing suit an off-axis viewer.
  • Marine and vehicle instrumentation — differential signalling, with tested vibration and shock.
  • Factory automation and process control consoles.
  • Laboratory and analytical instruments — all eight CIE coordinates published for colour work.

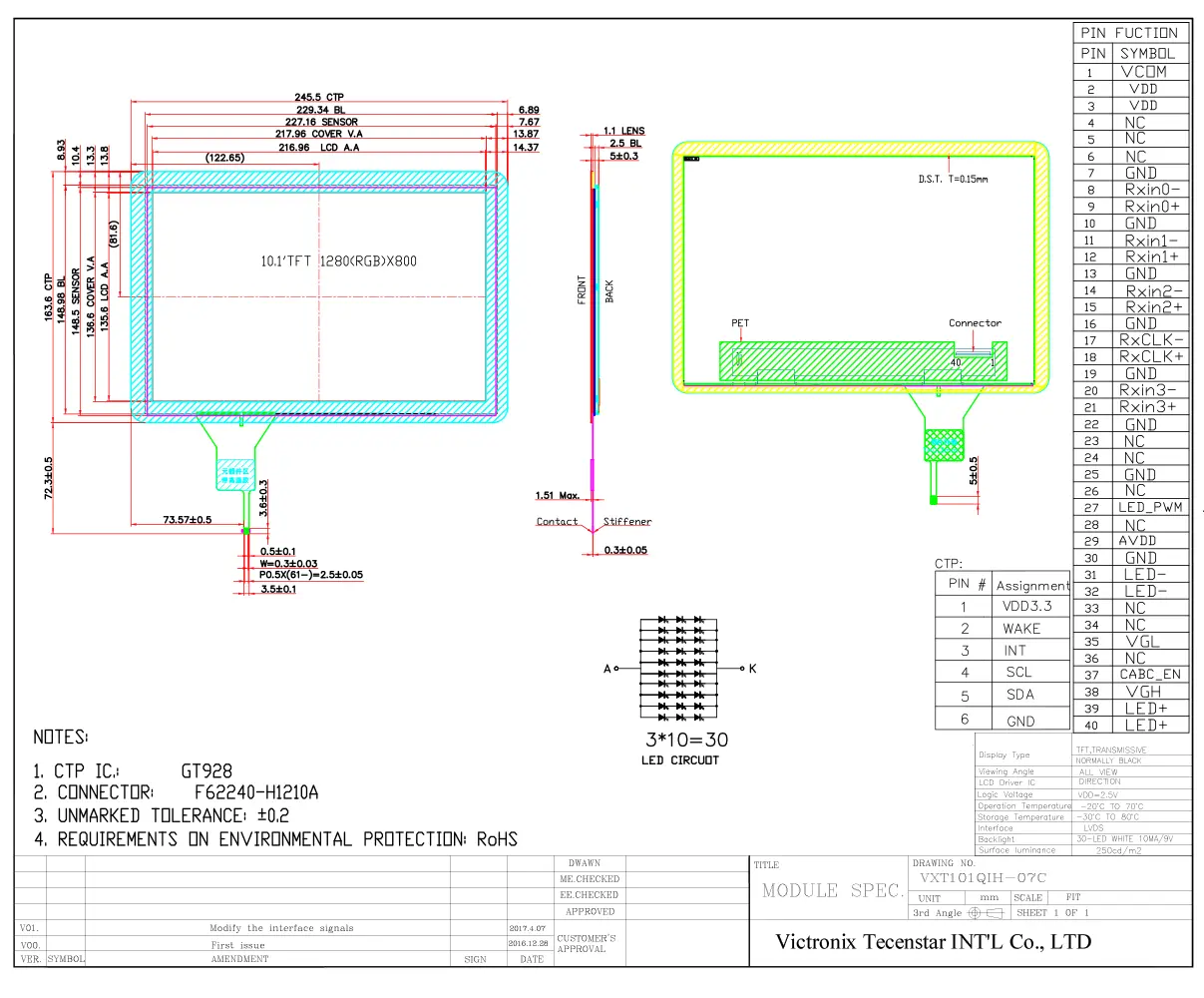

Outline Drawing

10.1 inch HD Capacitive Touch IPS TFT Module
