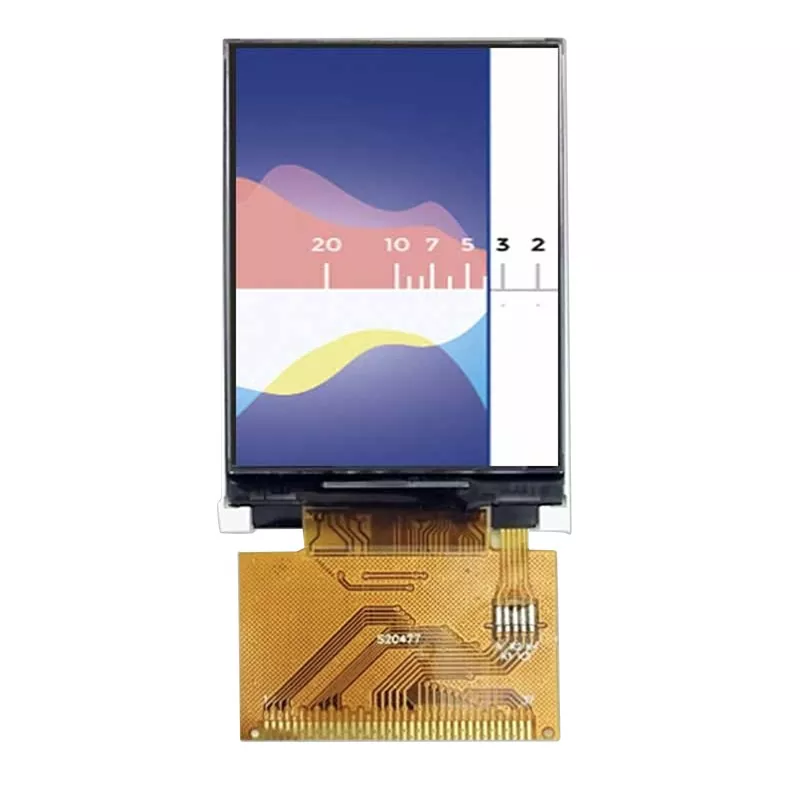

2.2 Inch 240x320 TFT LCD Module 18-Bit RGB + MCU + SPI Interface - VXT220TQI-03
  • 2.2 Inch 240x320 TFT LCD Module 18-Bit RGB + MCU + SPI Interface - VXT220TQI-032.2 Inch 240x320 TFT LCD Module 18-Bit RGB + MCU + SPI Interface - VXT220TQI-03

2.2 Inch 240x320 TFT LCD Module 18-Bit RGB + MCU + SPI Interface - VXT220TQI-03

This Victronix 2.2 inch 240x320 ILI9341V TFT Module is a high-quality 2.2 inch TFT LCD module designed for industrial, medical, and consumer electronics requiring vivid color performance and reliable operation. Featuring a 240 × 320-pixel resolution and 262K color depth, it delivers sharp visuals with an active display area of 33.84 × 45.12 mm (diagonal: 55.8 mm). As a professional manufacturer and supplier of TFT modules in China, Victronix 2.2 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT220TQI-03

Send Inquiry    PDF DownLoad

Product Description

General Information

Item Value
Model VXT220TQI-03, VER.01
LCD type TFT / Transmissive
Controller ILI9341V (ILITEK, COG)
Colours 262K — 18-bit bus, six per channel
Viewing direction 6 o'clock
Grey scale inversion 12 o'clock
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C
Module size 41.04 × 56.45 × 2.85 mm
Active area 33.84 × 45.12 mm
Pixel pitch 0.141 × 0.141 mm — exactly square
Resolution 240 × 320 — native portrait
Interface 18-bit RGB / MCU / SPI
RGB pins VSYNC 7, HSYNC 8, DOTCLK 9, ENABLE 10
MCU pins RD 30, WR 31, RS 32, CS 33
SPI pins SDI 29, SCL on RS 32, CS 33
RESET Pin 6 — hardware reset, active low
Connector 41-pin FPC, 0.8 mm pitch, 32 mm span — from the drawing
Supply VCI 2.5 / 2.8 / 3.3 V (analog); IOVCC 1.65 / 1.8–2.8 / 3.3 V (logic)
Brightness 200 cd/m² typical
Contrast 250 min / 350 typ
Response TON + TOFF 20 typ / 30 max ms — one row
Viewing angle θX± 40/45; θY+ 45/50; θY− 15/20 — severely asymmetric downward
Uniformity 80% min
Backlight 3 LEDs in parallel, 3.2 V, 15 mA each, 45 mA total
Backlight power 0.144 W — stated, matches exactly — lowest in this range
Backlight life 30,000 h — single figure, no separate typical
Backlight driver No boost needed — 3.2 V on a 3.3 V rail
MTBF 50,000 hours

Where It Gets Used


  • Portable medical devices — pulse oximeters, blood pressure monitors, portable ECG and patient monitors, where 180 PPI keeps small numerals and waveforms legible.
  • Handheld gas and environmental detectors — multi-gas monitors, VOC and air quality meters, at 0.144 W of backlight.
  • Handheld and portable field instruments — multimeters, analysers, calibrators and testers.
  • Portable water quality and laboratory meters — a 150 KB frame that fits on-chip RAM.
  • Industrial handheld terminals and portable programmers.
  • Point-of-sale and handheld payment terminals — a compact portrait surface.
  • Smart home and building sub-panels — a small status or control display.
  • Wearable and body-worn equipment — 2.85 mm with the iron frame removed.
  • Factory automation sub-panels and sensor displays — −20 to +70 °C covers indoor industrial ambient.

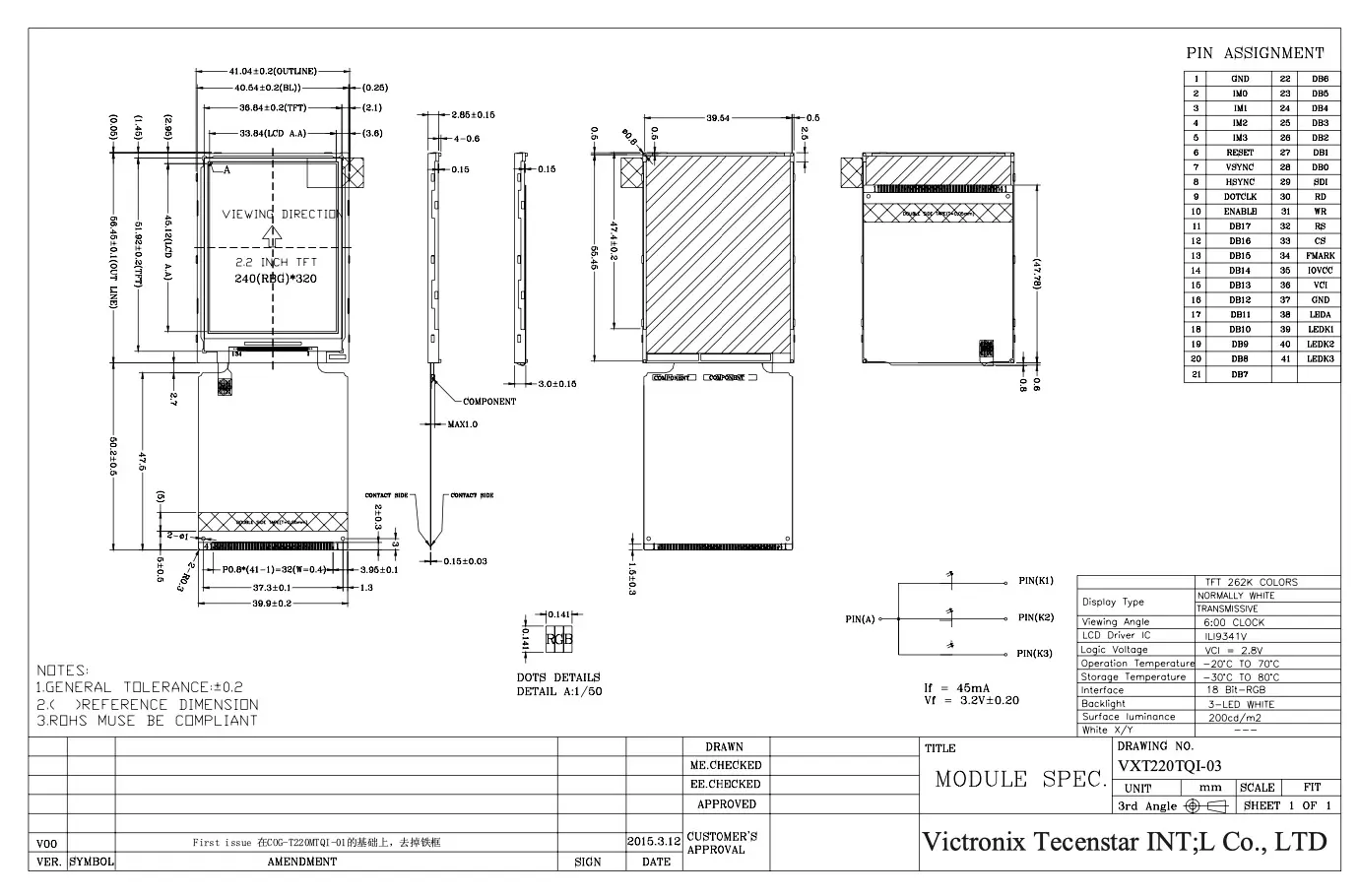

Outline Drawing

2.2 inch 240x320 Ili9341v TFT Module
