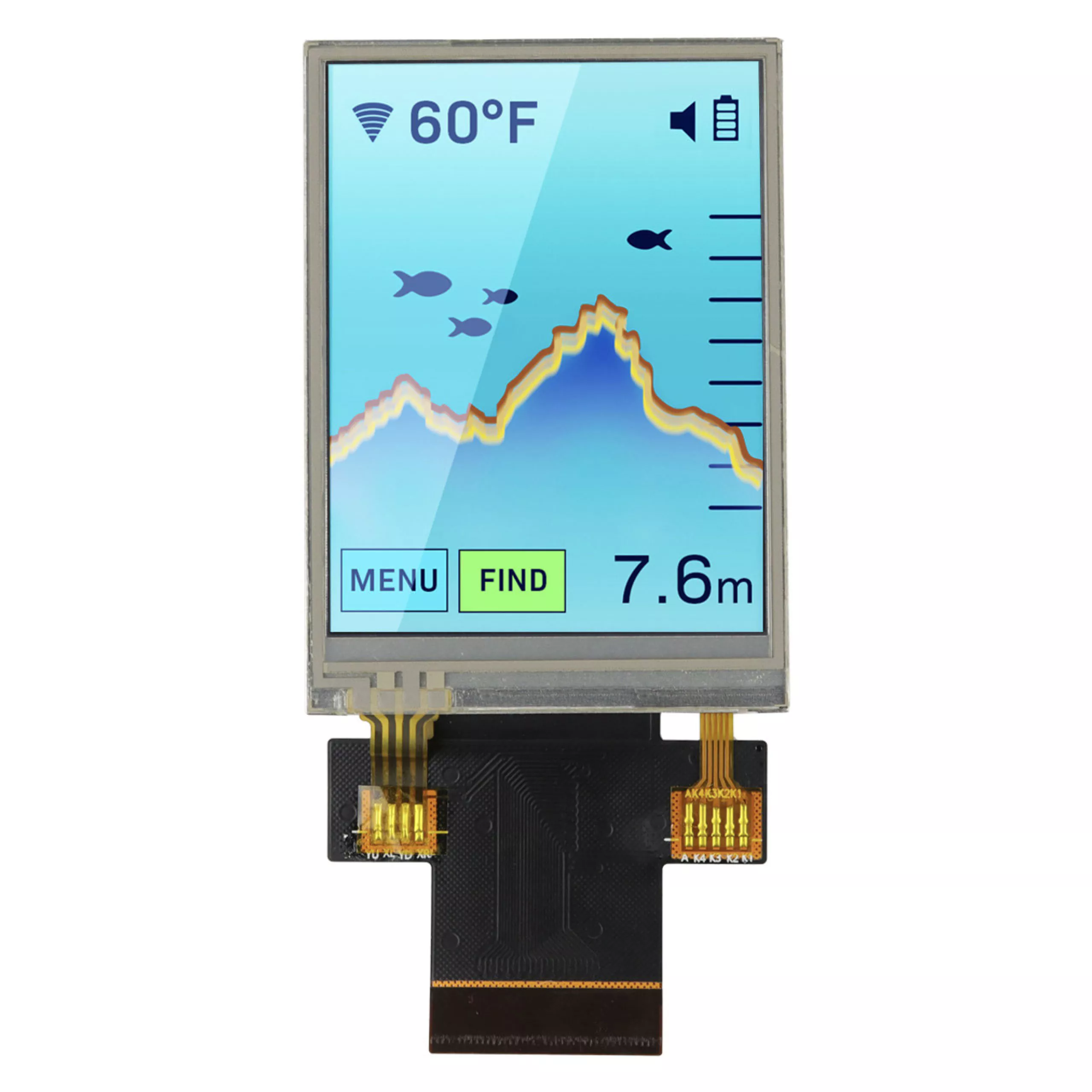

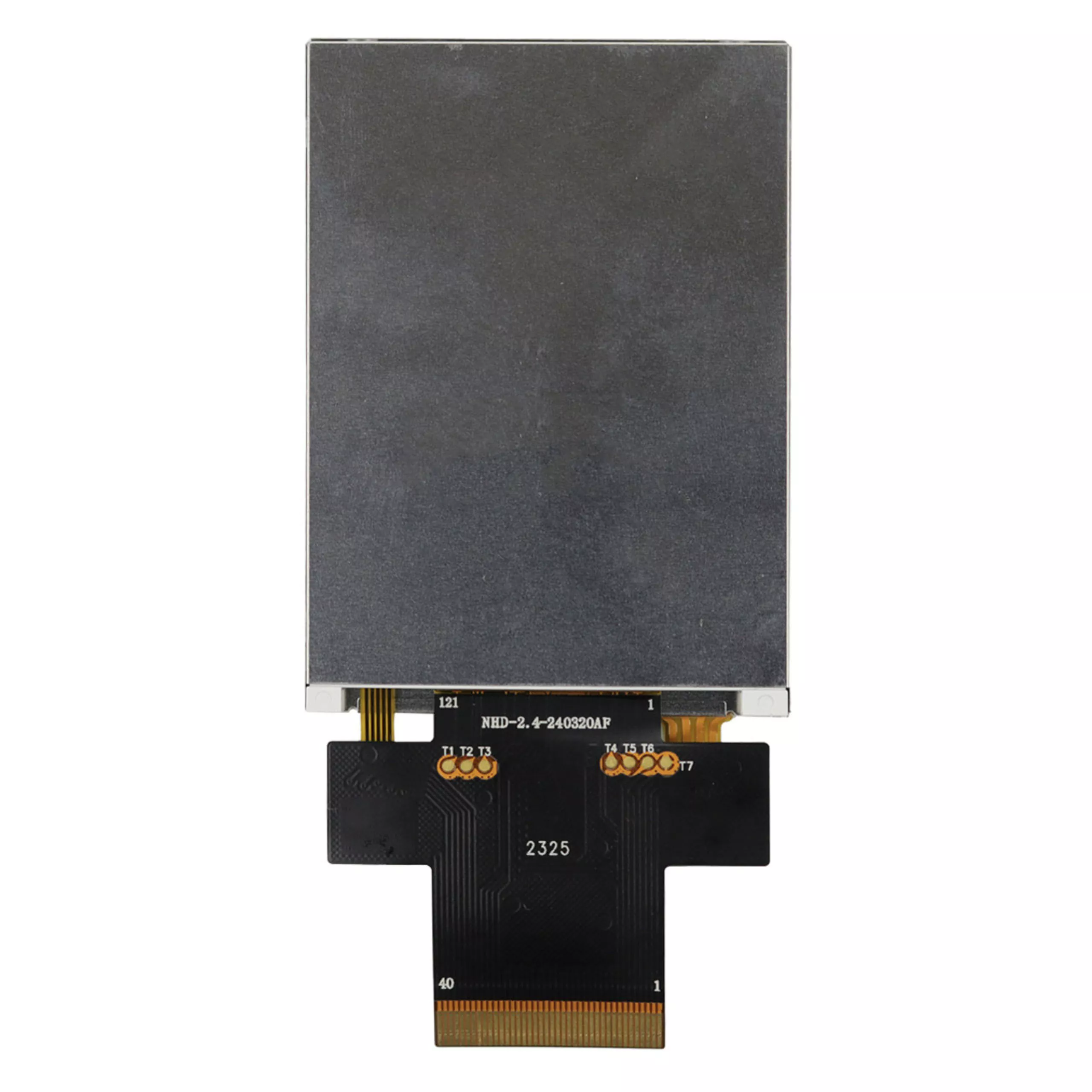

2.6 Inch 240x320 Portrait TFT LCD Module with Resistive Touch MCU/RGB + SPI - VXT260LQI-01P
  • 2.6 Inch 240x320 Portrait TFT LCD Module with Resistive Touch MCU/RGB + SPI - VXT260LQI-01P2.6 Inch 240x320 Portrait TFT LCD Module with Resistive Touch MCU/RGB + SPI - VXT260LQI-01P
  • 2.6 Inch 240x320 Portrait TFT LCD Module with Resistive Touch MCU/RGB + SPI - VXT260LQI-01P2.6 Inch 240x320 Portrait TFT LCD Module with Resistive Touch MCU/RGB + SPI - VXT260LQI-01P

2.6 Inch 240x320 Portrait TFT LCD Module with Resistive Touch MCU/RGB + SPI - VXT260LQI-01P

This Victronix 2.6 inch Resistive Touch IPS TFT Module. Featuring 280 cd/m² brightness (max 340 cd/m²), 500:1 contrast ratio, and anti-glare polarizer, this display ensures sunlight-readable clarity and true-color reproduction (CIE white point: x=0.288, y=0.325).

Model:VXT260LQI-01P

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Handheld and portable field instruments — 150 KB fits a microcontroller with no external RAM, and a free viewing direction means the reading is correct however the user holds it.
  • Medical devices and portable monitors — gloved operation, and a surface that can be wiped down.
  • Point-of-sale and payment terminals — signature capture with a pen, and a 4:3 portrait column for a list or a receipt.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Kiosk, vending and ticketing terminals — indoor, at 280 cd
  • Access control, intercom and door panels — a vertical interface in a narrow cut-out, with a touch keypad on the same flex.
  • Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, where the viewing angle is never ideal.
  • Smart home control panels — wall-mounted at any height, because there is no preferred direction.
  • Microcontroller projects and retrofits — 150 KB fits internal SRAM, an 8080 bus is widely supported, and the published timing makes configuration straightforward.
  • Microcontroller projects and retrofits — 150 KB fits internal SRAM, an 8080 bus is widely supported, and the published timing makes configuration straightforward.

General Specification

Item Contents Unit

Model

VXT260LQI-01P

LCD TYPE TFT/TRANSMISSIVE
MODULE SIZE (W*H*T) 46.00*69.00*4.30 MM
ACTIVE SIZE(W*H) 39.60*52.80 MM
PIXEL PITCH (W*H) 0.165*0.165 MM
NUMBER OF DOTS 240*320
DIVER IC ILI9341V
INTERFACE TYPE MCU RGB+SPI
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND VIEWING DIRECTION ALL O'CLOCK
GRAY SCALE INVERSION DIRECTION - O'CLOCK
BACKLIGHT TYPE 6-DIES WHITE LED
TOUCH PANEL TYPE RESISTIVE

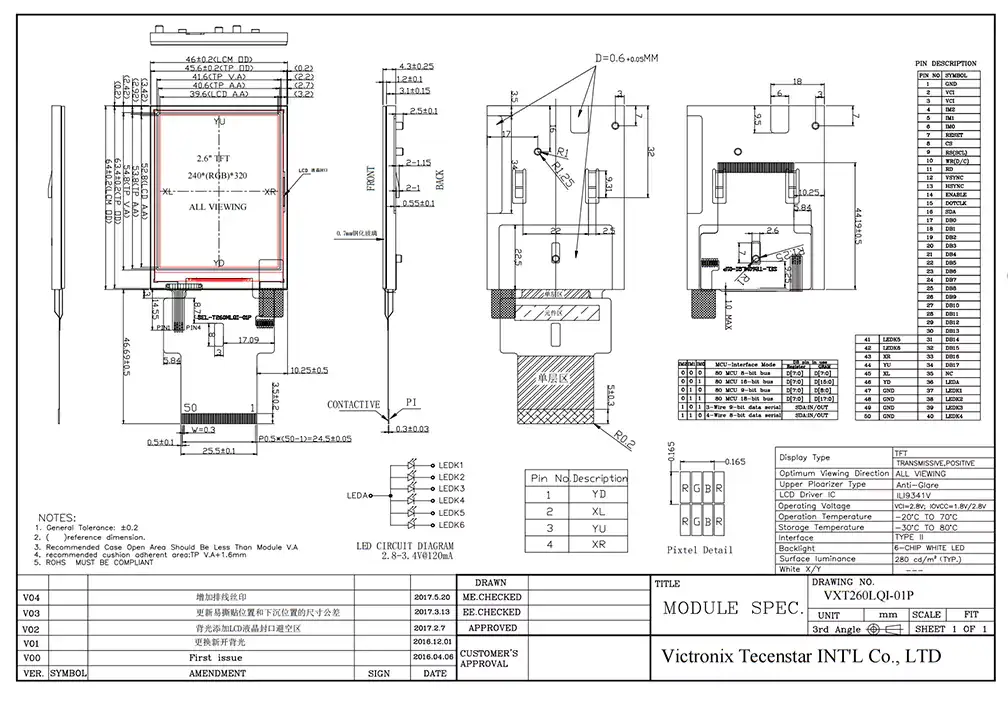

Mechanical Drawing
