2.7 Inch 240x320 Portrait TFT LCD Module SPI + 8-Bit RGB - VXT270ZQI-04
  • 2.7 Inch 240x320 Portrait TFT LCD Module SPI + 8-Bit RGB - VXT270ZQI-042.7 Inch 240x320 Portrait TFT LCD Module SPI + 8-Bit RGB - VXT270ZQI-04

2.7 Inch 240x320 Portrait TFT LCD Module SPI + 8-Bit RGB - VXT270ZQI-04

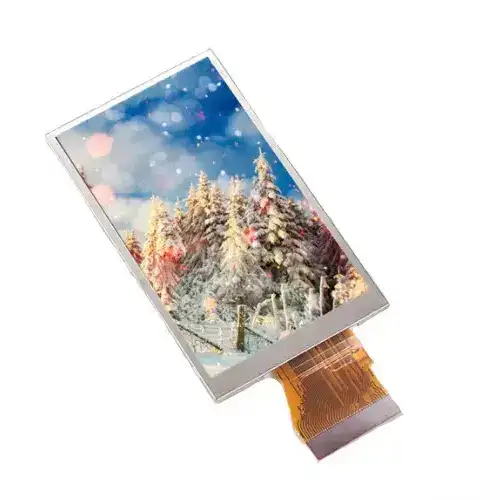

This Victronix 2.7 inch 240x320 TFT Module is a compact 2.7 inch TFT LCD module engineered for reliable performance in demanding applications. Featuring a sharp 240×(RGB)×320 resolution across a 40.5×54.0mm active area, this transflective display delivers vibrant 262K-color visuals with exceptional clarity.

Model:VXT270ZQI-04

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Handheld and portable field instruments — 150 KB fits a microcontroller, and 2.45 mm leaves room for a battery.
  • Industrial HMI and machine control panels — a 3 o'clock viewing direction is fine on a panel mounted at a known height and a known side.
  • Industrial HMI and machine control panels — a 3 o'clock viewing direction is fine on a panel mounted at a known height and a known side.
  • Point-of-sale and payment terminals — a 4:3 portrait column for a scrolling list or a receipt view.Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Kiosk, vending and ticketing terminals — indoor, at 350 cd/m².
  • Kiosk, vending and ticketing terminals — indoor, at 350 cd/m².
  • Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, at a fixed mounting orientation.
  • Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, at a fixed mounting orientation.
  • Microcontroller and application-processor projects with an RGB output — 8-bit RGB with syncs, and a small frame buffer.

General Specification

Item Contents Unit

Model

VXT270ZQI-04

LCD  TYPE TFT/TRANSMISSIVE
MODULE     SIZE(W*H*T) 45.70*62.60*2.45 MM
ACTIVE SIZE(W*H) 40.50*54.00 MM
PIXEL PITCH(W*H) 0.16875*0.16875 MM
NUMBER  OF  DOTS 240*320
DIVER IC ILI8961
INTERFACE   TYPE SPI+8 BIT RGB
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND    VIEWING    DIRECTION 3  O'CLOCK
GRAY  SCALE  INVERSION  DIRECTION 9  O'CLOCK
COLORS 262K
BACKLIGHT    TYPE 4-DIES WHITE LED

Brightness

350 cd/m²

TOUCH  PANEL  TYPE WITHOUT

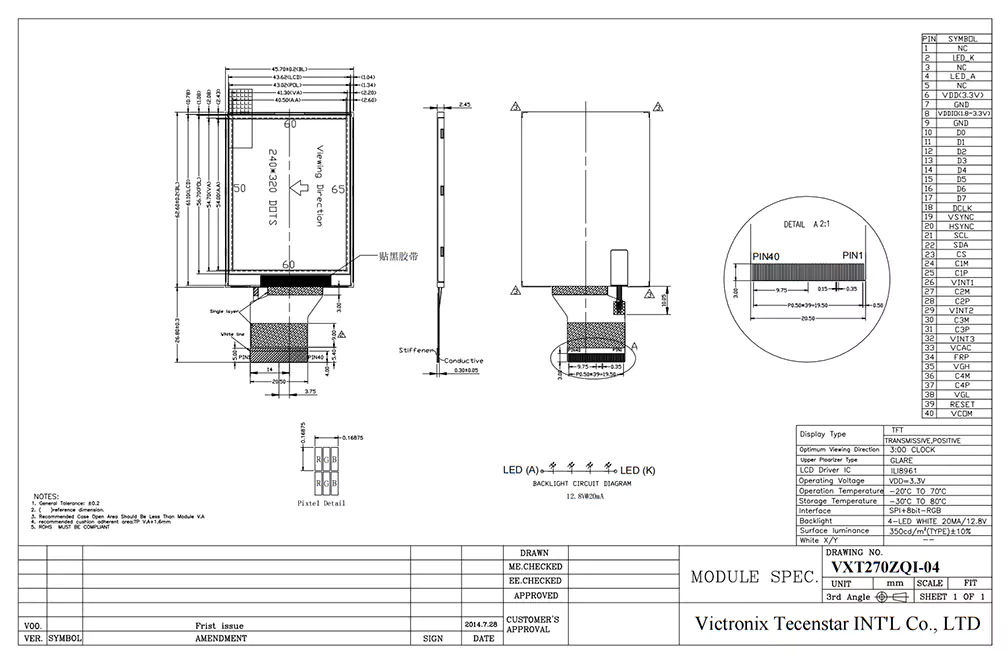

Mechanical Drawing
