2.76 Inch 480x480 Square TFT LCD Module RGB24 - VXT276MCSA-01
  • 2.76 Inch 480x480 Square TFT LCD Module RGB24 - VXT276MCSA-012.76 Inch 480x480 Square TFT LCD Module RGB24 - VXT276MCSA-01
  • 2.76 Inch 480x480 Square TFT LCD Module RGB24 - VXT276MCSA-012.76 Inch 480x480 Square TFT LCD Module RGB24 - VXT276MCSA-01

2.76 Inch 480x480 Square TFT LCD Module RGB24 - VXT276MCSA-01

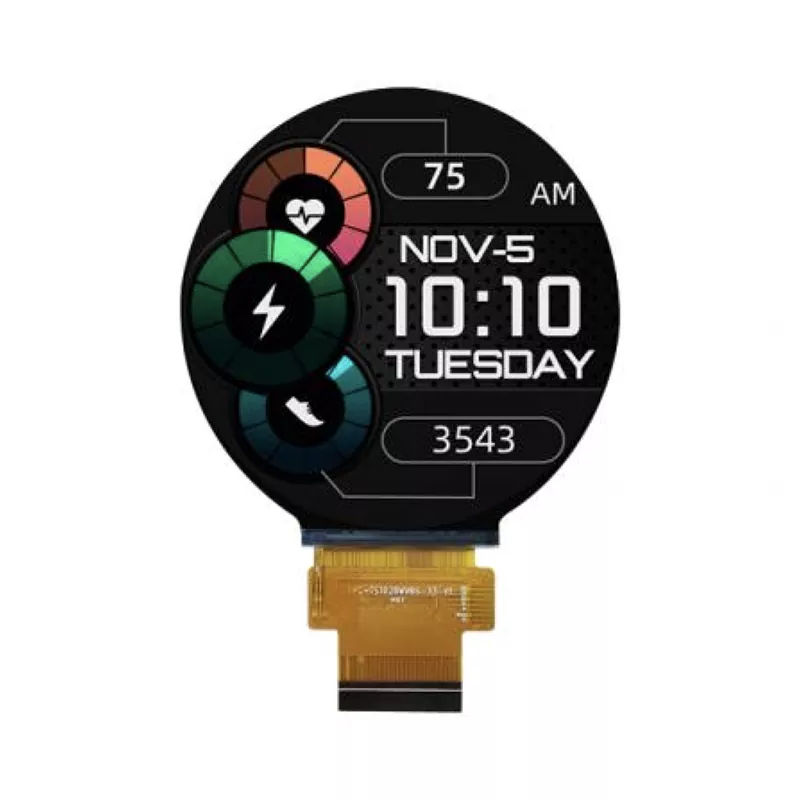

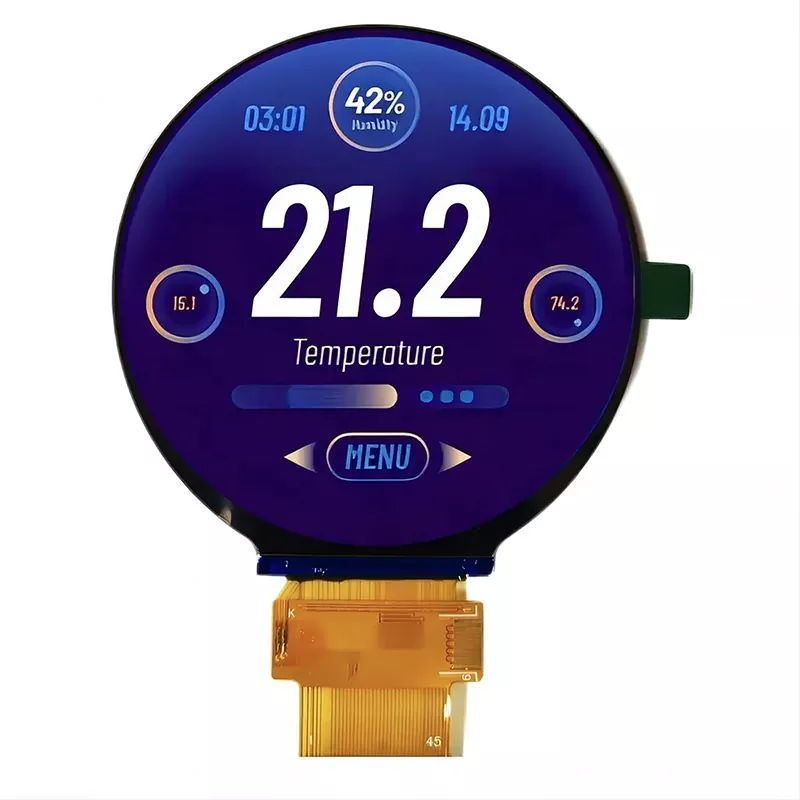

This Victronix 2.76 inch 480x480 Round TFT Module is a premium circular TFT-LCD module engineered for demanding applications requiring robust performance, exceptional image quality, and reliable operation in diverse environments. Featuring a crisp 480×480 resolution within a 70.13mm diameter active area, this module delivers vibrant 16.7 million colors with wide viewing angles. As a leading manufacturer and supplier of TFT modules in China, we are proud to offer the Victronix 2.76 inch TFT Module. This product not only complies fully with ROHS environmental standards, ensuring exceptional performance in various applications, but we also provide customized services to meet our customers' specific needs.

Model:VXT276MCSA-01

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Smart home control panels and thermostats — a square face with a dial, a set-point and a grid of controls.
  • Knob displays and rotary control panels — 1:1 is the natural shape for anything round.
  • Handheld and portable field instruments — a square instrument face, at 174 PPI so fine type stays sharp.
  • Industrial HMI and machine control panels — a square status block or a matrix of channel readings.
  • Medical devices and portable monitors — a square readout with high contrast for greyscale imaging.
  • Point-of-sale and payment terminals — a square keypad or a QR and signature panel.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Kiosk, vending and ticketing terminals — indoor, at 250 cd/m².
  • Embedded Linux and Android projects — an RGB output and external RAM, which is what this panel expects.
  • Access control, intercom and door panels — a square panel in a square cut-out.
  • Colour-critical instruments — an NTSC floor of 60% is one of only two gamut figures in this range.

General Specifications

ltem Contents Unit Note

Model

VXT276MCSA-01


LCD Type TFT
Display color 16.7M
Viewing Direction ALL O'Clock
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Module size Refer to outline drawing mm
Active Area(W×H) 70.13X70.13 mm
Number of Dots 480×480 dots
Driver IC ST7701S
Power Supply Voltage 3.3  V
Outline Dimensions Refer to outline drawing
Backlight 4P-LEDs (white) pCS

Brightness

250 cd/m2


Interface RGB24bit

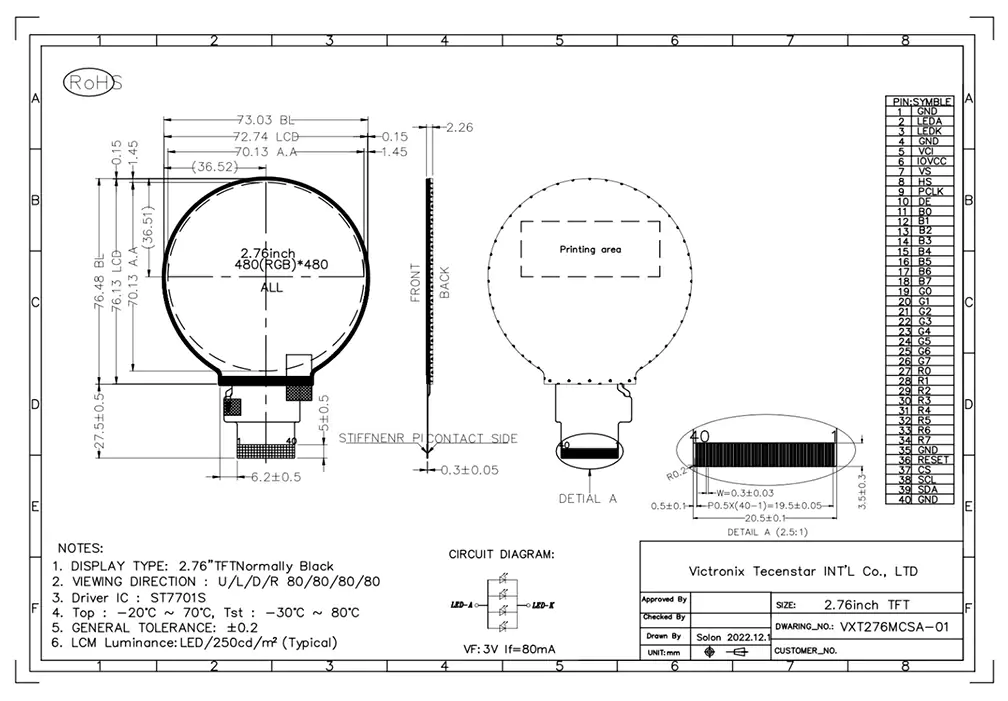

Mechanical Drawing
