2.0 Inch 240x320 Portrait TFT LCD Module 4-Wire SPI - VXT200BQS-04
  • 2.0 Inch 240x320 Portrait TFT LCD Module 4-Wire SPI - VXT200BQS-042.0 Inch 240x320 Portrait TFT LCD Module 4-Wire SPI - VXT200BQS-04

2.0 Inch 240x320 Portrait TFT LCD Module 4-Wire SPI - VXT200BQS-04

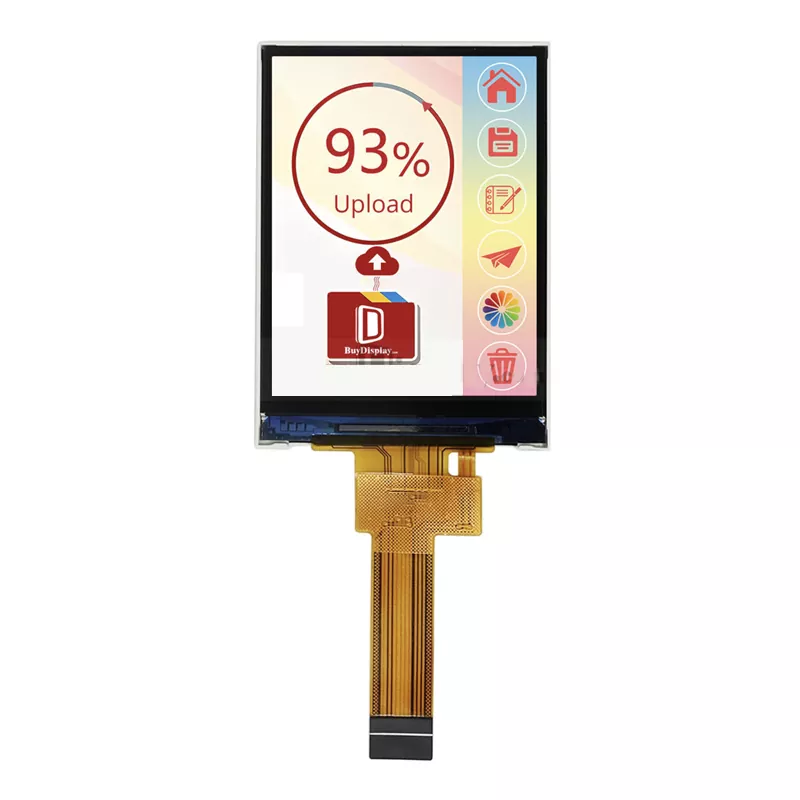

This Victronix 2 inch 240x320 SPI TFT Module is a compact 2.0 inch TFT LCD module engineered for embedded systems requiring reliable visual performance. Featuring a 240×320 RGB resolution on a 30.6 × 40.80 mm active area, this module delivers sharp, vibrant images with a pixel pitch of 0.1275 × 0.1275 mm. As a professional manufacturer and supplier of TFT modules in China, Victronix 2 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT200BQS-04

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Pin-limited microcontroller designs — 13 pins for a whole 240 × 320 display, on a 0.5 mm FPC.
  • Handheld and portable field instruments — 199 PPI keeps fine type sharp, and 150 KB fits a 256 KB microcontroller with no external RAM.
  • Wearable and body-worn devices — the smallest connector and one of the slimmer modules here at 2.50 mm.
  • Industrial HMI and machine control panels — a free viewing direction means no mounting orientation to get wrong.
  • Medical devices and portable monitors — thin, light, and cheap to drive from a small host over four wires.
  • Point-of-sale and payment terminals — a 4:3 portrait column for a list or a receipt view.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Kiosk, vending and ticketing terminals — indoor, at 320 cd/m².
  • Access control, intercom and door panels — a vertical interface in a narrow cut-out, on very few host pins.
  • Smart home control panels and thermostats — wall-mounted at any height, because there is no preferred direction.
  • Retrofits into products designed for a parallel panel — if the host has SPI free and few GPIOs, this is the smallest migration.

General Specification

Item Contents Unit

Model

VXT200BQS-04

LCD type TFT/Transmissive
Module size (W*H*T) 37.88*51.50*2.50 mm
Active size (W*H) 30.6*40.80 mm
Pixel pitch (W*H) 0.1275*0.1275 mm

Number of dots
240(H)*RGB*320(V)
Driver IC ST7789V2
Interface type 4 WIRE SPI
Top polarizer type Anti-Glare
Recommend viewing direction All O'clock
Gary scale inversion direction
--

O'clock
Backlight type 4-Dies white LED
Touch panel type Without

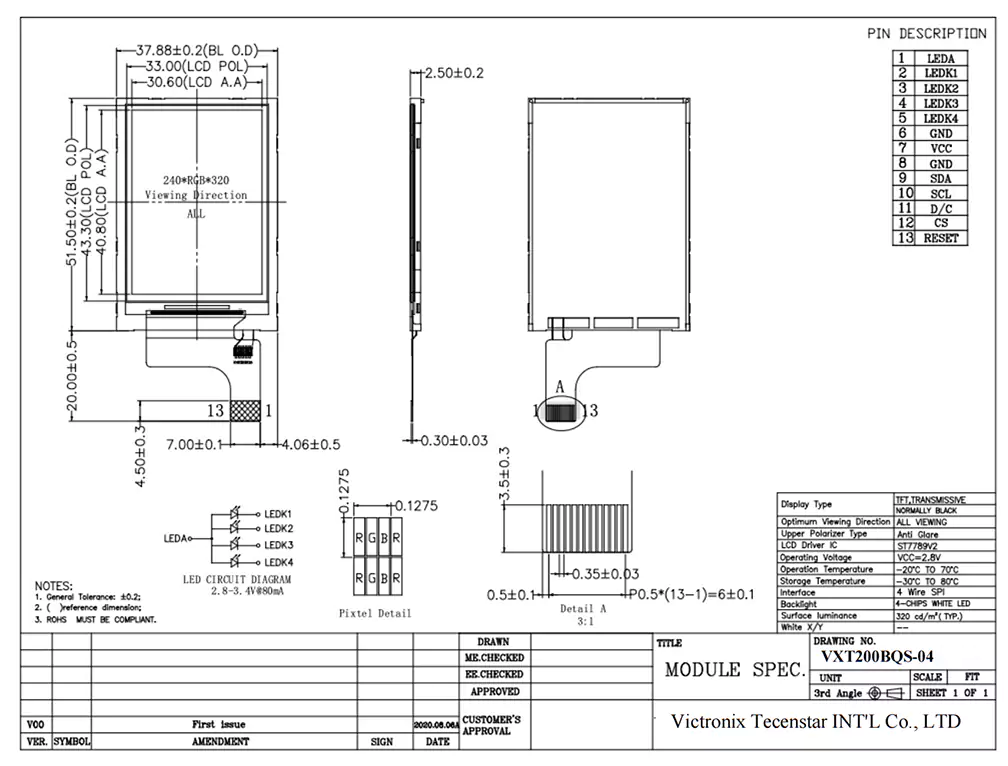

Mechanical Drawing
