3.2 Inch 240x320 Portrait TFT LCD Module with Resistive Touch 8/16-Bit MCU - VXT320HQS-02P
  • 3.2 Inch 240x320 Portrait TFT LCD Module with Resistive Touch 8/16-Bit MCU - VXT320HQS-02P3.2 Inch 240x320 Portrait TFT LCD Module with Resistive Touch 8/16-Bit MCU - VXT320HQS-02P
  • 3.2 Inch 240x320 Portrait TFT LCD Module with Resistive Touch 8/16-Bit MCU - VXT320HQS-02P3.2 Inch 240x320 Portrait TFT LCD Module with Resistive Touch 8/16-Bit MCU - VXT320HQS-02P

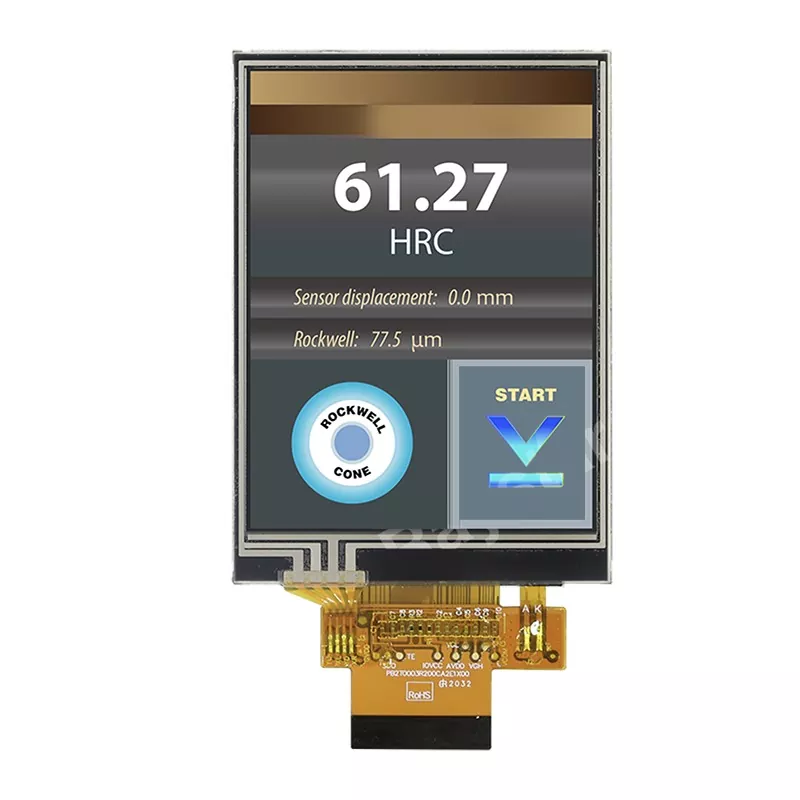

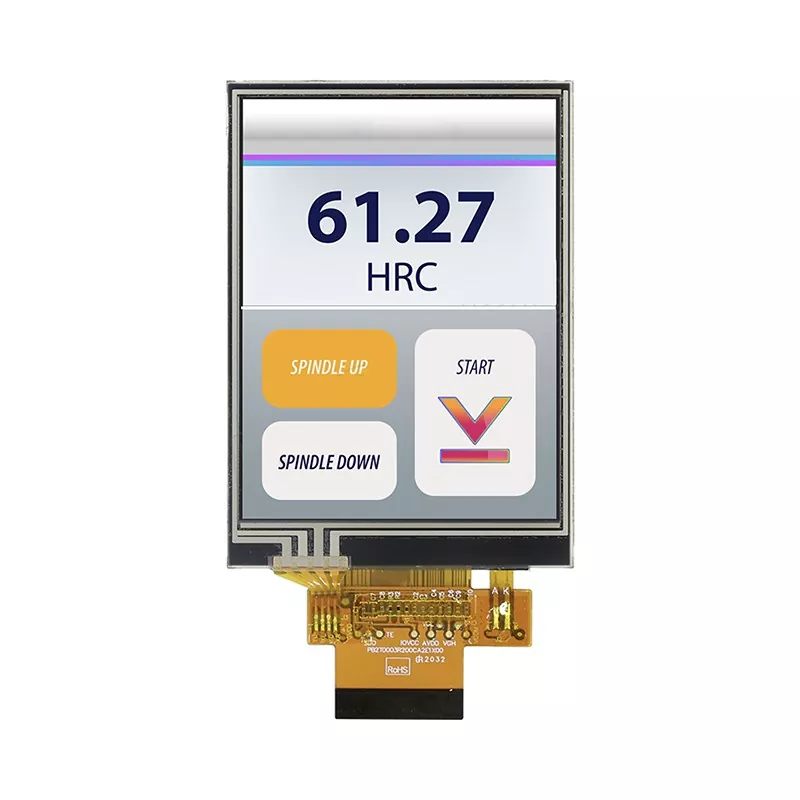

3.2 Inch 240x320 Portrait TFT LCD Module with Resistive Touch 8/16-Bit MCU - VXT320HQS-02P

The VXT320HQS-02P is a 3.2inch, 240x320 portrait mode TFT LCD display module with a resistive touch panel (RTP). It features a resolution of 240x320 dots and a brightness of 300 cd/nits (typical value), with a contrast ratio of 500:1 (typical value). Equipped with a built-in ILI9341 driver IC, it supports 8080 MCU 8-bit/16-bit SPI (3-Wire/4-Wire) interfaces. The module measures 55.94mm (W) x 77.60mm (H), with an active area size of 48.6 x 64.8 mm. It functions efficiently within a temperature range of -20℃ to +70℃, while its storage capabilities extend from -30℃ to +80℃. If customers require a high brightness backlight, please contact us for custom solution.

Model:VXT320HQS-02P

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Handheld and portable field instruments — 150 KB fits a microcontroller with no external RAM, and resistive touch works with gloves.
  • Industrial HMI and machine control panels — glove operation, dirty hands, and a surface you can wipe down.
  • Medical devices and portable monitors — gloved operation, and a panel that can be disinfected.
  • Point-of-sale and payment terminals — signature capture with a pen, and a 4:3 portrait column for a list or a receipt.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Kiosk, vending and ticketing terminals — indoor, and ESD at ±8 kV air on a surface people touch.
  • Access control and intercom panels — a vertical interface in a narrow cut-out.
  • Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, with shock and vibration specified.
  • Smart home control panels — wall-mounted at a known height, so the viewing direction is under your control.
  • Microcontroller projects and retrofits — 150 KB fits internal SRAM, and the 8080 bus is widely supported.
  • Replacement displays in existing 3.2-inch 240 × 320 equipment — same resolution, same 4:3 shape, same portrait orientation.

General Specification

Item Contents Unit

Model

VXT320HQS-02P

LCD type TFT/Transmissive
Module size(W*H*T) 55.94*77.6*3.55 mm
Active size(W*H) 64.80*48.60 mm
Pixel pitch (W*H) 0.2025*0.2025 mm
Number of dots 240*RGB*320
Driver IC ST7789V2
Interface type 8/16-Bit MCU
Top polarizer type Anti-Glare
Recommend viewing direction 6  O'clock
Gary scale inversion direction 12  O'clock
Backlight type 5-Dies white LED
Touch panel type Resistive

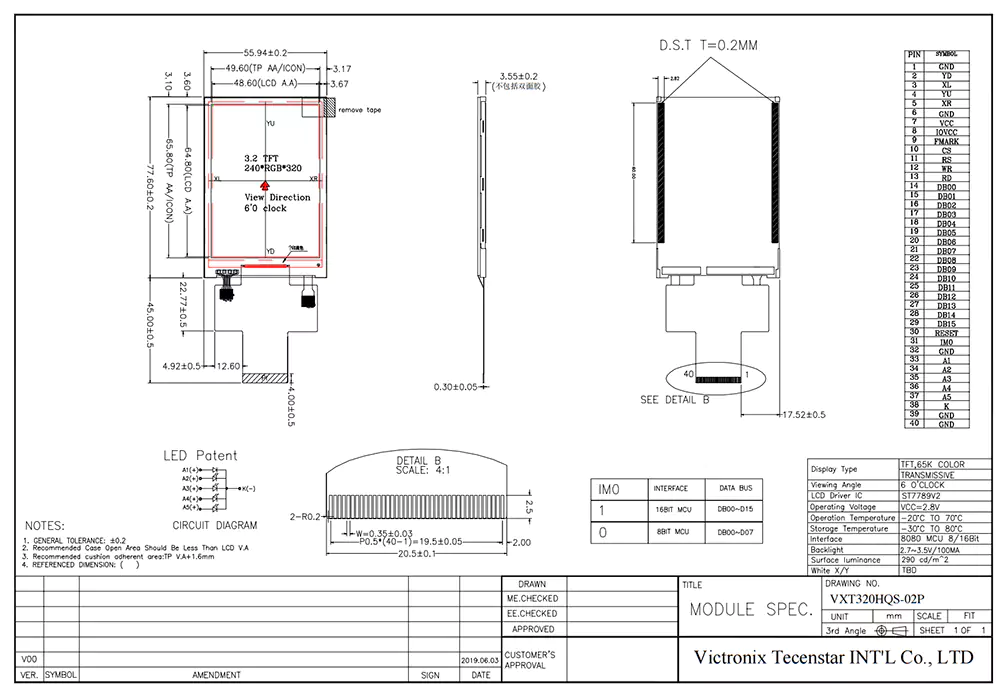

Mechanical Drawing
