3.5 Inch 480x640 TFT LCD Module SPI + 18-Bit RGB Interface - VXT350TVH-01
  • 3.5 Inch 480x640 TFT LCD Module SPI + 18-Bit RGB Interface - VXT350TVH-013.5 Inch 480x640 TFT LCD Module SPI + 18-Bit RGB Interface - VXT350TVH-01

3.5 Inch 480x640 TFT LCD Module SPI + 18-Bit RGB Interface - VXT350TVH-01

This Victronix 3.5'' 480x640 TN TFT Module is a high-reliability 3.5 inch TFT LCD module engineered for demanding industrial applications. Featuring a 480(RGB) × 640 resolution and 262K color depth, this transmissive display delivers sharp visuals with an active area of 53.28 × 71.04 mm. It's 0.111 × 0.111 mm pixel pitch ensures exceptional detail clarity. As a professional manufacturer and supplier of TFT modules in China, Victronix 3.5 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT350TVH-01

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Handheld and portable field instruments — 228.8 PPI for dense readouts, 3.0 mm for a thin case, 0.384 W for battery life.
  • Portable medical devices — monitors, infusion pumps and diagnostic units where small text must stay legible.
  • Industrial PDAs and barcode terminals — portrait UI, register access over SPI, and a fenced data bus.
  • Test and measurement equipment — multimeters, scopes and analysers with parameter tables and waveform labels.
  • Access control and intercom panels — a 3.5-inch portrait panel is a natural fit for a door station.
  • Point-of-sale and handheld payment terminals.
  • Smart home and building control panels — a small portrait surface for a room controller.
  • Kiosk and vending sub-panels — a secondary display where 570 cd/m² and anti-glare help.
  • Factory automation handheld programmers — −20 to +70 °C covers indoor industrial ambient.
  • Battery-powered equipment generally — the combination of 3.0 mm, 0.384 W and two low rails is what this panel is for.

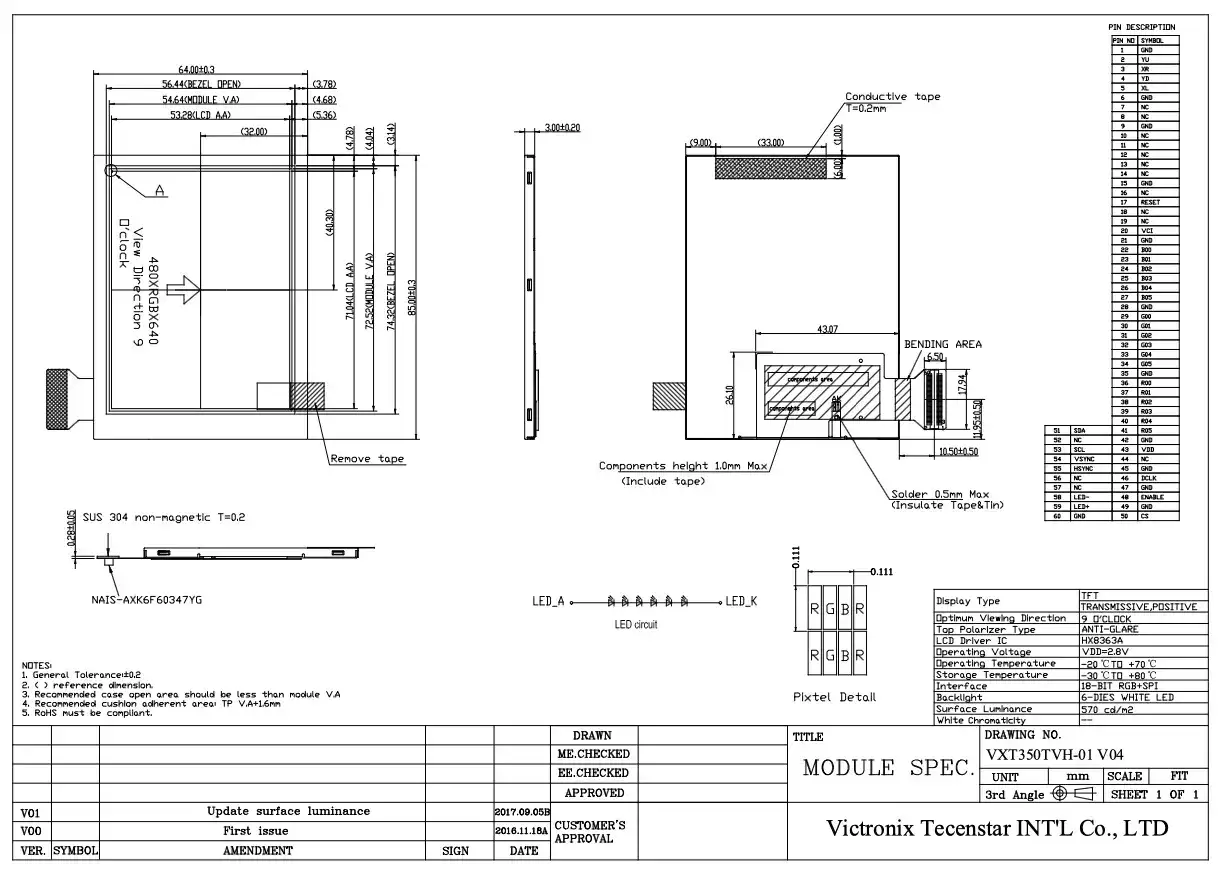

Outline Drawing

3.5'' 480x640 TN TFT Module
