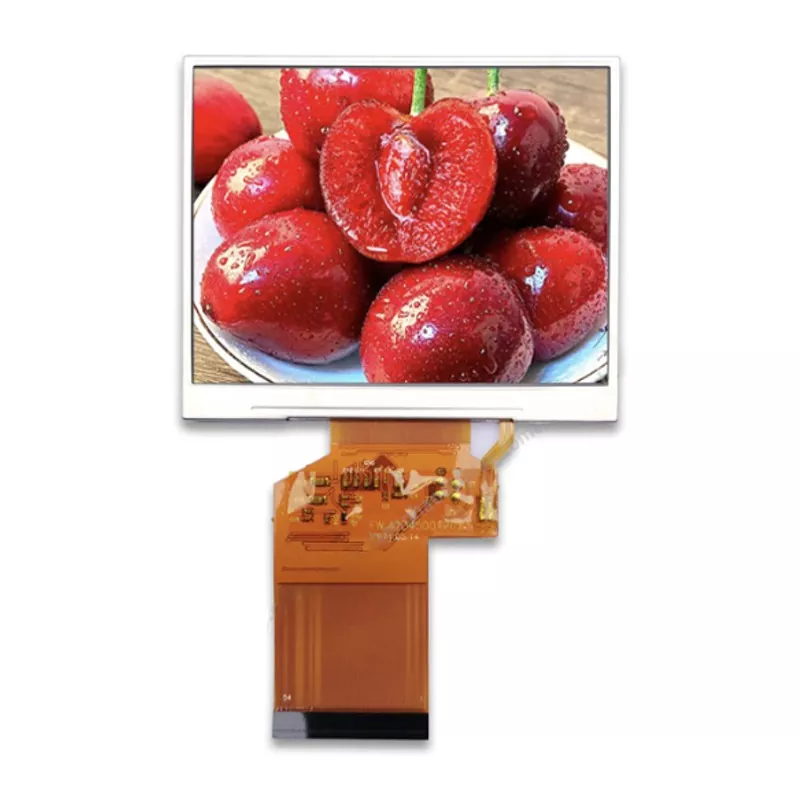

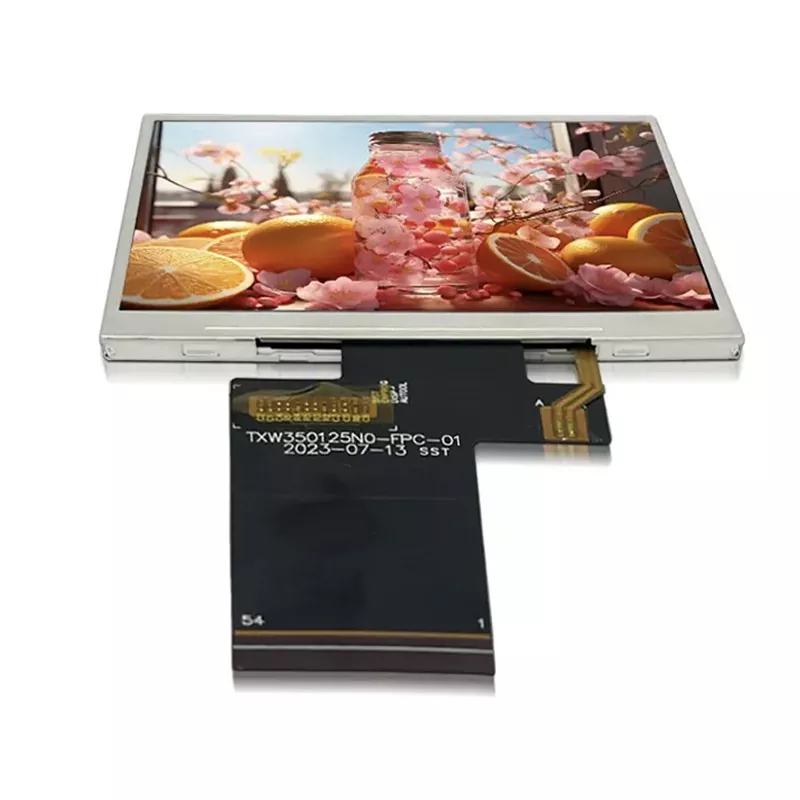

This Victronix 3.5 inch 320*240 TN Type TFT Module is a high-performance 3.5 inch TFT LCD module engineered for industrial embedded systems. It features a transmissive TN-type panel with 320×240 RGB pixels, and delivers sharp 16.7M-color visuals across a 70.08×52.56mm active area. Its compact design (76.90×63.90×3.15mm) integrates seamlessly into space-constrained applications.
| Item | Value |
|---|---|
| Model | VXT350TQV-32, VER.01 |
| LCD type | TFT / Transmissive |
| Controller | NV3035GTC (NewVision, COG) |
| Colours | 16.7M — genuine, 24 data lines |
| Viewing direction | 12 o'clock |
| Grey scale inversion | 6 o'clock |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C — properly wider |

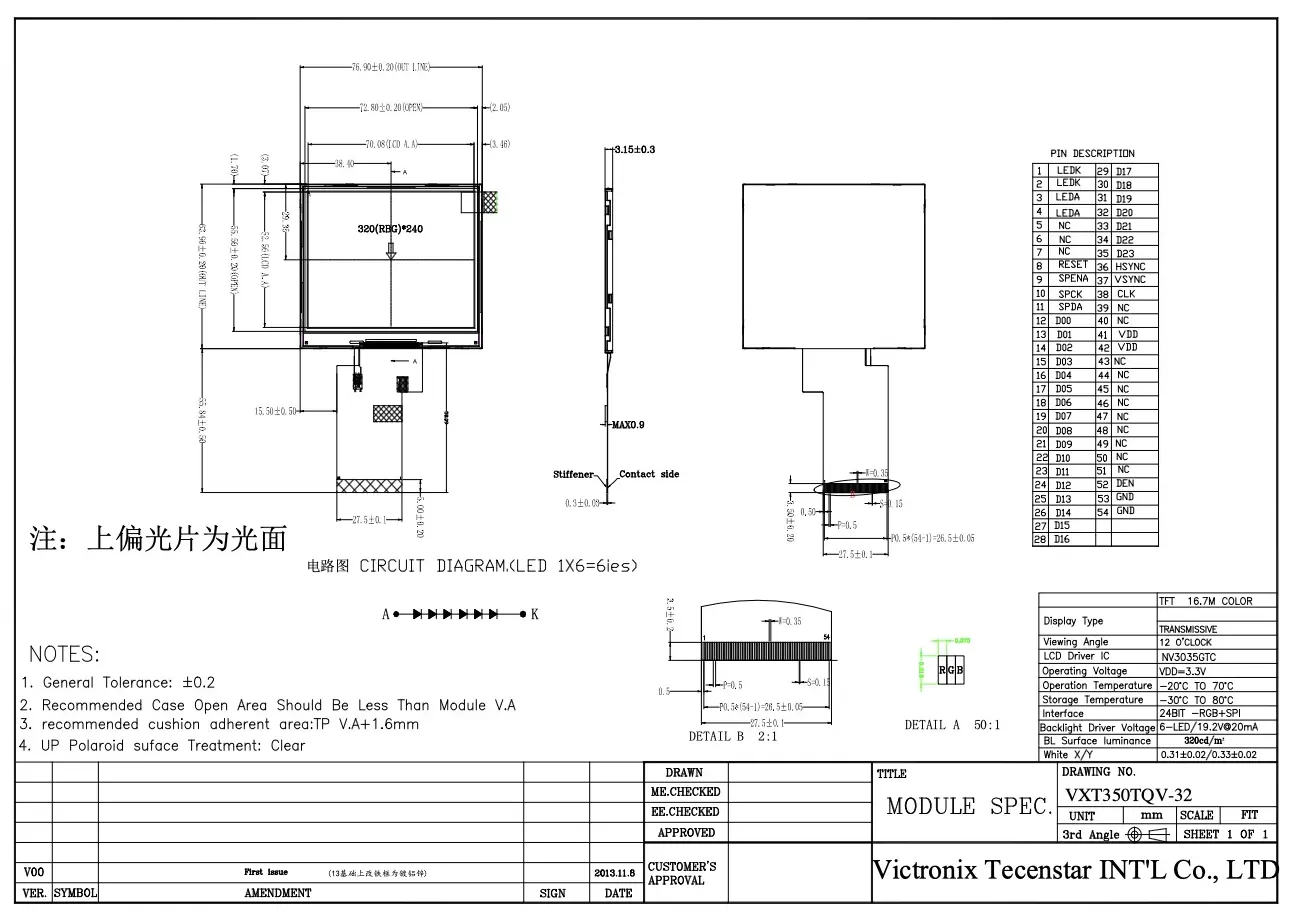

| Module size | 76.90 × 63.90 × 3.15 mm — drawing: ± 0.20, ± 0.20, ± 0.3 |
| Active area | 70.08 × 52.56 mm — 36.83 cm² |
| Pixel pitch | 0.219 × 0.219 mm — exactly square |
| Resolution | 320 × 240 (QVGA) — landscape |
| Bezel opening | 72.80 × 55.50 mm — ± 0.20 |
| Interface | 24-bit RGB + 3-wire SPI |
| Connector | 54-pin FPC |
| Supply | VDD 3.0 / 3.3 / 3.6 V — analog and logic rows identical |
| Brightness | 320 cd/m² typical — no floor, no ceiling |
| Contrast | 400 min / 500 typ |
| Response | TON + TOFF 20 typ / 30 max ms — one row |
| Viewing angle | θX± 60/70; θY+ 50/60, θY− 60/70 — vertically asymmetric |
| Uniformity | 75% min / 80% typ |
| Backlight | 6 LEDs — 6S1P, 3.2 V per LED, 20 mA |
| Backlight voltage | 19.2 V — typical |
| Backlight current | 20 mA — typical only |
| Backlight power | 0.384 W — stated, matches exactly |
| Backlight life | 30,000 h min / 50,000 h typ |
| MTBF | 50,000 hours |
