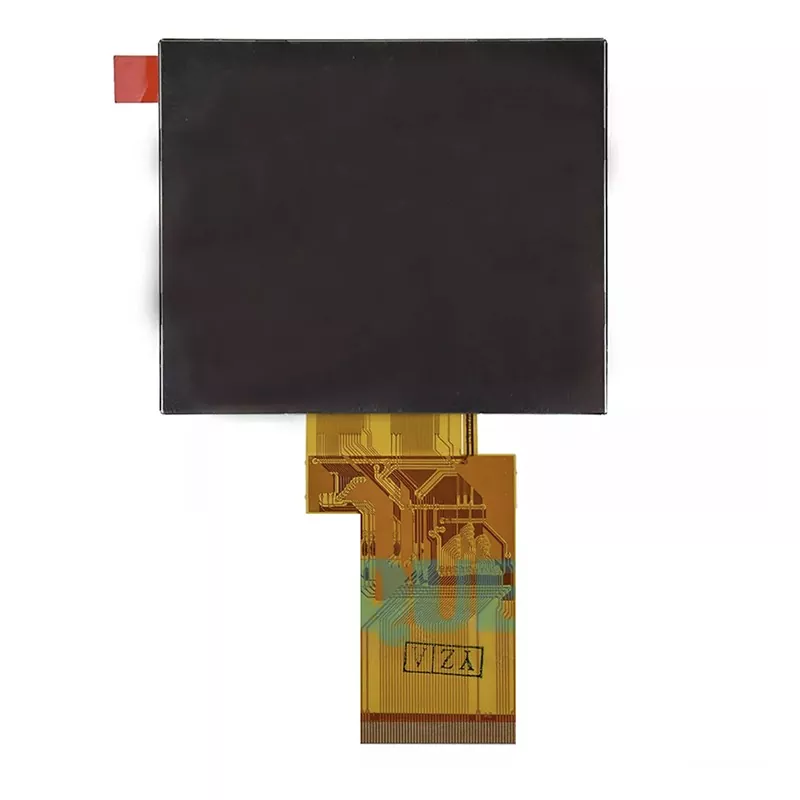

This Victronix 3.5 inch Tianma Panel CTP TFT Module is a high-reliability 3.5 inch TFT LCD module integrating a capacitive touch panel (CTP), engineered by Victronix for industrial and embedded systems. Featuring a 320×240 RGB resolution, NV3035GTC driver IC, and dual RGB+SPI interfaces, this module delivers robust performance in critical environments. As a professional manufacturer and supplier of TFT modules in China, Victronix 3.5 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT350TQV-01C

Send Inquiry    PDF DownLoad

Product Description
Item Value
Model VXT350TQV-01C,
LCD type TFT / TRANSMISSIVE;
Module size 76.90 × 63.90 × 5.05 mm — the thickest module in this range
Active area 70.08 × 52.56 mm — 36.83 cm²
Diagonal 87.6000 mm = 3.4488 inch (derived) — 1.46% short of the nominal 3.5
Resolution 320 × 240, landscape 4:3
Aspect ratio 4:3 exact
Pixel pitch 0.219 × 0.219 mm — square
Density 116.0 PPI (derived) — the lowest in this range
Pixel count 76,800
Driver IC NV3035GTC
Interface 24-bit RGB + 3-wire SPI
Touch panel G+G capacitive, FT5446DQS, I²C, 10 points (drawing OCR reading — confirm)
Touch lens Tempered glass 0.70 mm; sensor glass 0.55 mm; CTP stack 1.4 ±0.1 mm excluding foam
Touch transmittance / hardness / shock ≥ 86% / 6H / ≥ 0.25 J (drawing OCR readings — confirm)
Touch connector Own 10-pin FPC, 0.5 mm pitch, W = 0.35
Connectors Display 54-pin FPC, 0.5 mm pitch, 26.5 ±0.06 mm across 53 pitches
Ground pins 53 and 54 — two, connect both
Current consumption Not stated — no total power figure, no sleep current
Brightness 240 min / 300 typ / 360 max cd/m²
Contrast ratio 400 min / 500 typ — no maximum
Response time 20 typ / 30 max ms — one row, TON and TOFF combined, no floor
Uniformity 75 min / 80 typ %
Viewing angle θX 60 min / 70 typ; θY+ 50 min / 60 typ; θY− 60 min / 70 typ
Viewing direction 12 o'clock; grey-scale inversion 6 o'clock
Polarizer Anti-glare
Backlight voltage 16.2 min / 19.2 typ / 20.4 max V — 3.20 V per LED
Backlight current 20 mA; absolute maximum 30 mA per LED
Backlight power 0.384 W — matches 19.2 V × 20 mA exactly
Backlight life 30,000 min / 50,000 typ hours
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C

Where It Gets Used


  • Handheld and portable field instruments — 150 KB fits internal SRAM, so no external memory chip.
  • Industrial HMI and machine control panels — a 12 o'clock direction is fine on a panel mounted at a known height and a known side.
  • Medical devices and portable monitors — a G+G glass front that can be wiped down with alcohol.
  • Point-of-sale and payment terminals — a 4:3 landscape layout for a list, an amount and a signature area side by side, with multi-touch.
  • Test and measurement equipment — square pixels keep waveforms, scales and dial graphics true.
  • Vehicle dashboards and secondary centre-console displays — landscape 4:3 at a fixed mounting orientation.
  • Access control, intercom and door panels — a landscape interface with capacitive keys.
  • Smart home control panels — wall-mounted at a known height, with a glass surface that is easy to clean.
  • Kiosk, vending and ticketing terminals — indoor, at 300 cd/m² typical.
  • Designs that need a configurable RGB panel rather than a raw TTL one — there is a register file and a 3-wire SPI port, so scan direction and RGB mode change in software.
  • Mid-size HMIs that need multi-touch — the drawing states 10 points, which supports gestures.

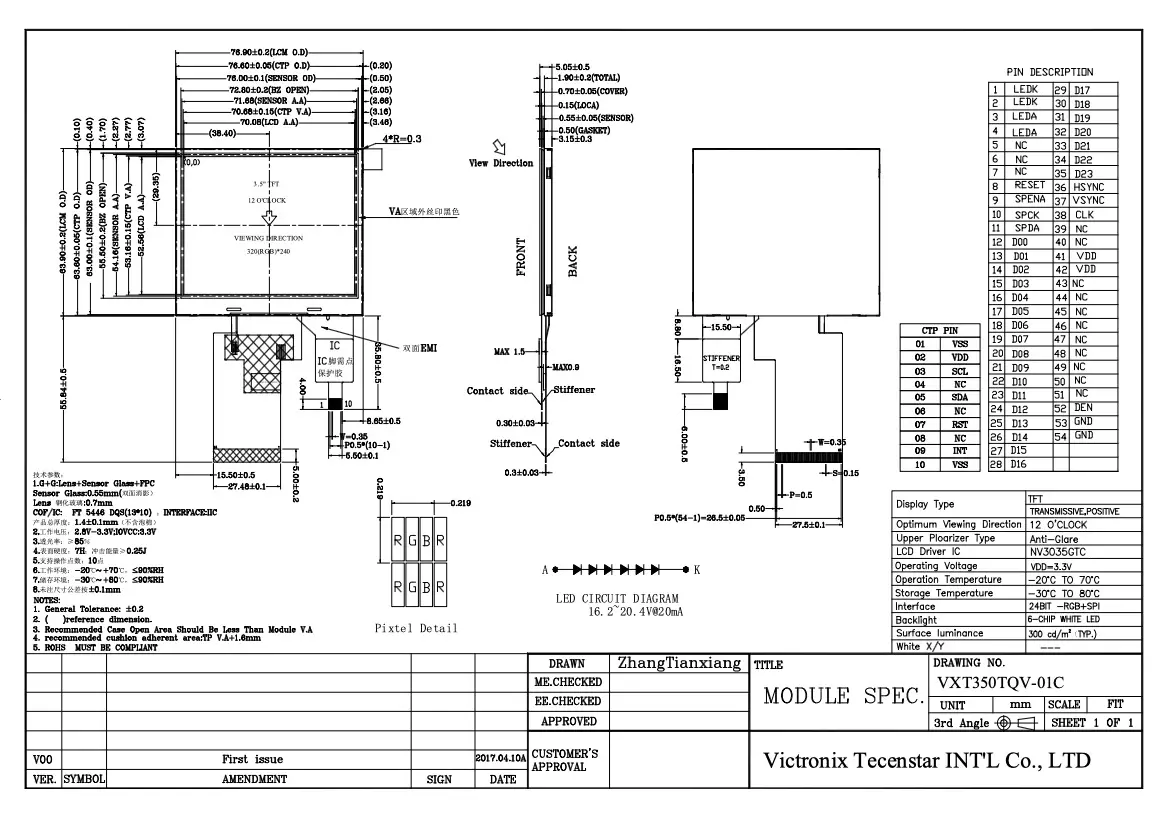

Drawing
