4.6 Inch 800x320 Bar TFT LCD Module RGB888 Interface - VXT460MQWI-04-Q

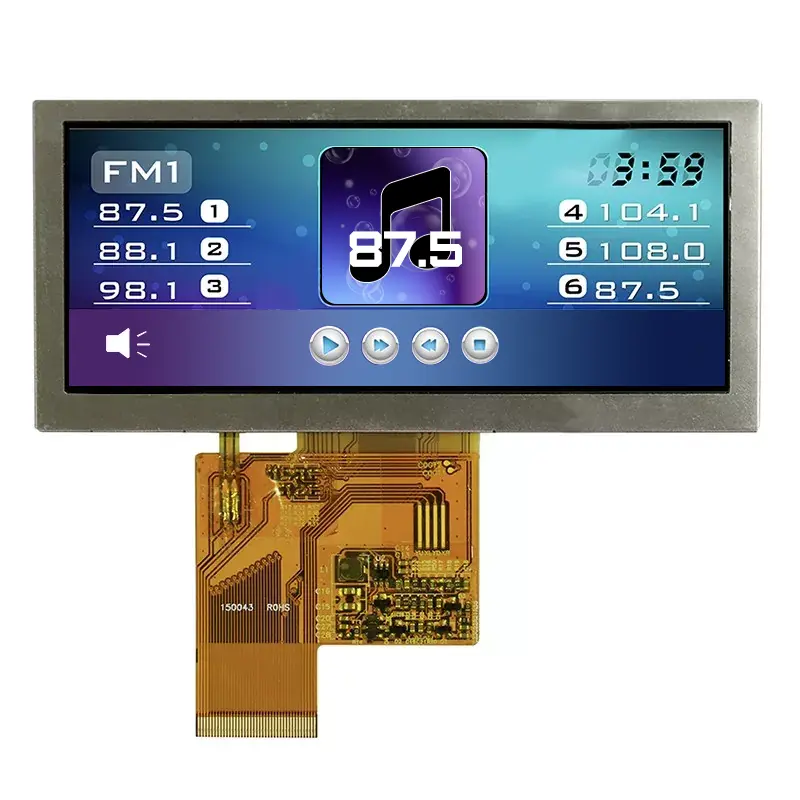

This Victronix 4.6 inch Bar Type IPS TFT Module is a high-quality 4.6 inch TFT LCD module engineered by Victronix Tecenstar for industrial, medical, and embedded systems. It combines IPS technology with a unique bar-shaped form factor, delivering exceptional 65° viewing angles in all directions, vivid color reproduction, and consistent image clarity essential for critical monitoring. As a professional manufacturer and supplier of TFT modules in China, Victronix 4.6 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.
Model:VXT460MQWI-04-Q (bar)
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Elevator floor and lift car displays — 2.5:1 is exactly the band a floor indicator, direction arrow or scrolling message needs.
- EV charger and charging pile screens — a status strip for state, current, time and cost.
- Industrial equipment status bars — a long, thin readout across a machine face or control cabinet.
- Instrument and meter panels — 256,000 pixels and square pixels keep scales, traces and digits true.
- Queue management and ticket displays — a banner for numbers, counters and service names.
- Smart home control strips and door entry panels — a horizontal band for status and controls.
- Shelf-edge and retail information strips — 2.5:1 with 188 PPI for readable small text.
- Retrofits of existing 4.6-inch 800 × 320 bar equipment — a format fewer suppliers cover.
- Projects that need real 24-bit colour — where an 18-line bus would not be enough.
- Vending, kiosk and access control panels — indoor, at 350 cd/m², −20 to +70 °C.
General Information
| Item | Value |
|---|---|
| Model | VXT460MQWI-04-Q |
| Size | 4.6 inch |
| Format | 800 (RGB) × 320 — bar type, 2.5:1 |
| Display type |
TRANSMISSIVE, NORMAL WHITE TFT |
| Viewing direction | 12:00 |
| Viewing angle | U/L/D/R = 65 / 65 / 55 / 65 |
| Operating temperature | −20 °C ~ 70 °C |
| Storage temperature | −30 °C ~ 80 °C |
| OUTLINE, width | 120.70 mm |
| A.A, width | 108.00 mm |
| Active area, height | 43.20 mm (derived from the dot matrix) |
| Pixel pitch | 0.135 × 0.135 mm — exactly square |
| Driver IC | ILI6137 + ILI5960 |
| Interface | RGB888 — 24-bit parallel |
| FPC features | STIFFENER (PI), CONTACT SIDE, BENDING AREA, Printing area |
| Supply | VDD on pin 4 |
| Brightness | 350 cd/m² typical |
| Backlight | 12 LEDs — 6S2P, 2.7–3.3 V per LED, 20 mA per string |
| Backlight voltage | 16.2 ~ 19.8 V |
| Backlight current | 40 mA |
| Backlight power | 0.72 W (derived); 0.792 W at max Vf |
Outline Drawing
