5.7 Inch 640x480 TFT LCD Module 18-Bit RGB Interface with Resistive Touch Panel - VXT570BGEA-01P

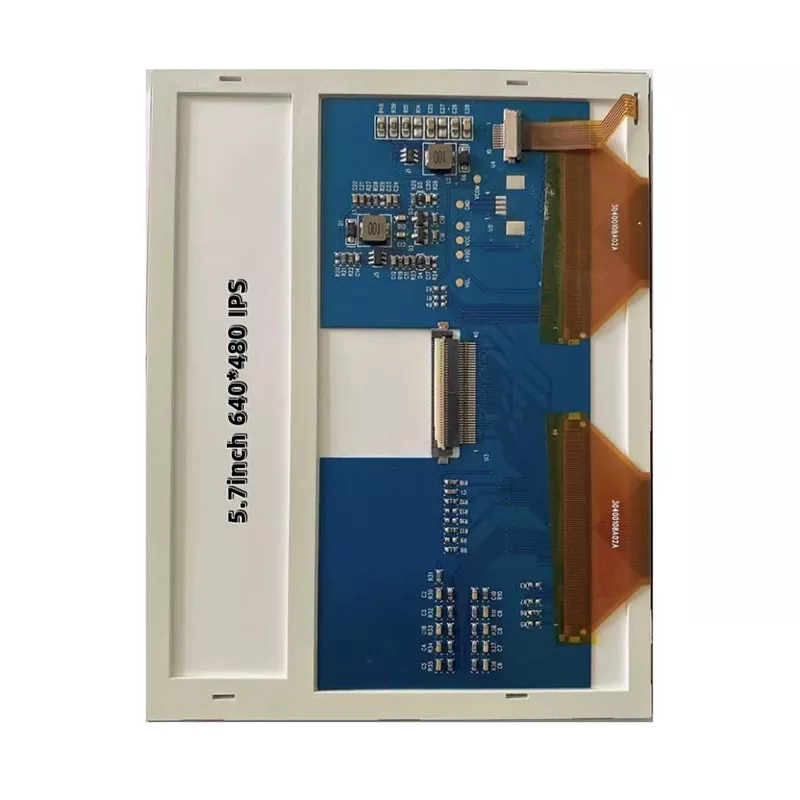

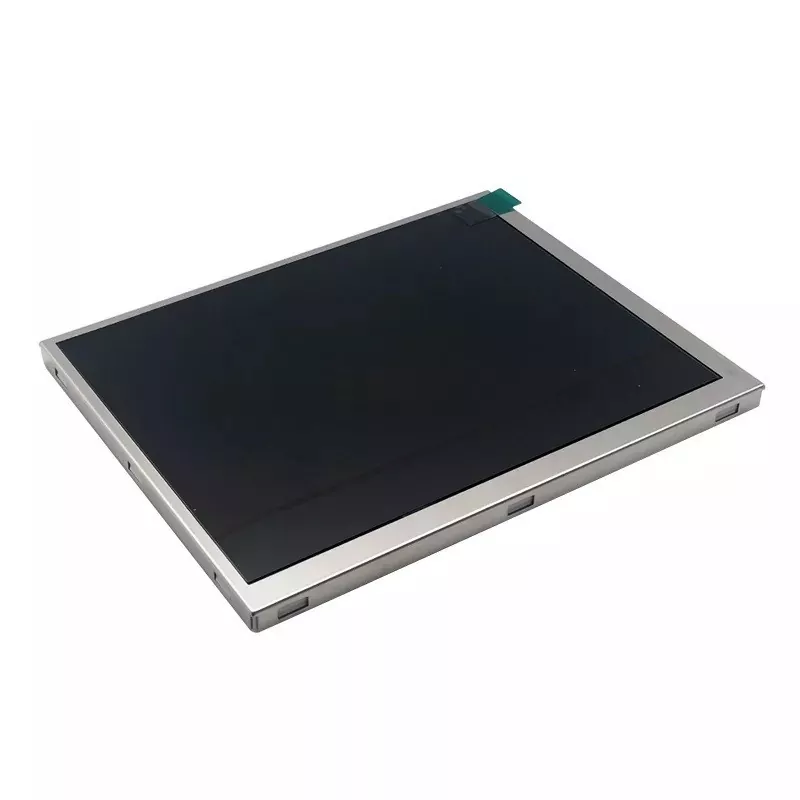

This Victronix 5.7 inch 640x480 IPS TFT Module is a high-performance 5.7 inch TFT-LCD module engineered for demanding industrial applications. Featuring an IPS panel with 640×480 resolution and 16.7 million color depth, this RoHS-compliant solution integrates an LCD panel, driver IC (JD9168S), FPC, and LED backlight into a ruggedized package. As a professional manufacturer and supplier of TFT modules in China, Victronix 5.7 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT570BGEA-01

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Industrial HMI and machine control panels — 640 × 480 over 18-bit RGB, in DE or SYNC mode.
  • Retrofits of existing 5.7-inch VGA equipment — a size fewer suppliers still cover, with timing that matches the classic VGA dot clock.
  • Handheld and portable field instruments — 1000 cd/m² and a self-contained backlight.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Point-of-sale and payment terminals — a receipt and line-item view.
  • Access control, intercom and door panels — a keypad or directory view.

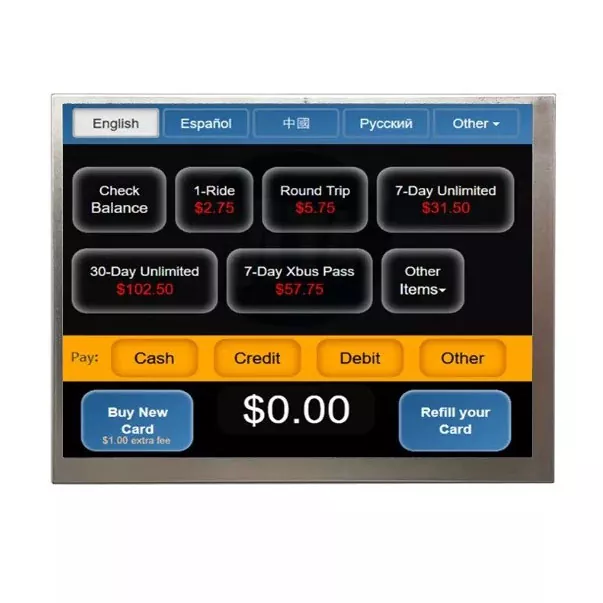

  • Kiosk, vending and ticketing terminals — 1000 cd/m² handles bright indoor lighting.
  • Medical devices and portable monitors — a two-sided brightness specification helps qualification.
  • Factory automation and smart home control panels — −20 to +70 °C covers most indoor industrial ambient.

General Information

ltem Contents Unit Note
Model VXT570BGEA-01


LCD Type TFT
Display color 16.7M     1
Viewing Direction ALL O'Clock
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃

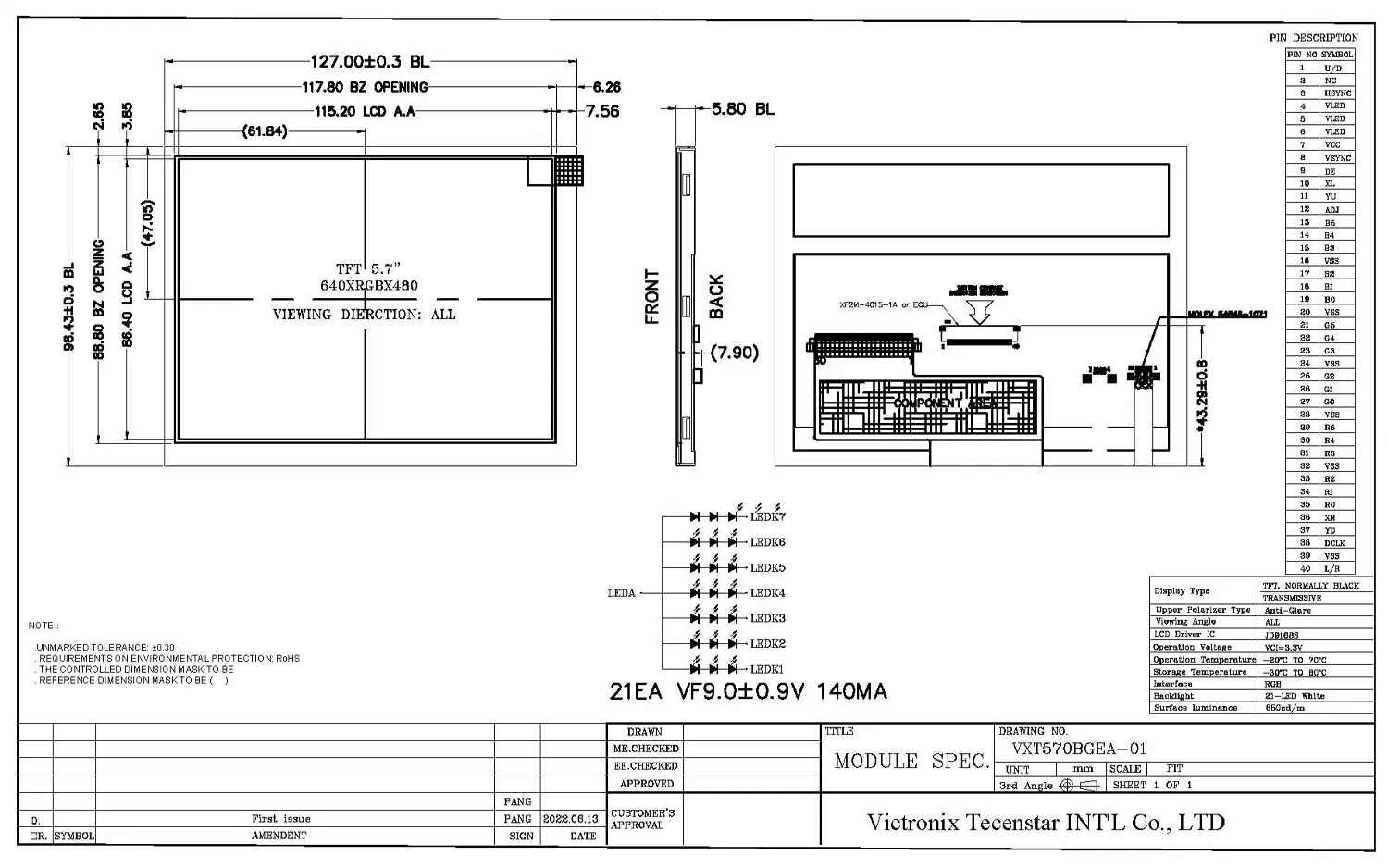

Module size Refer to outline drawing mm
Active Area(W×H) 115.20X86.40 mm
Number of Dots 640x480 dots
LCM Controller JD9168S
Power Supply Voltage 3.3  V
Backlight 3S7P-LEDs (white) pCS
Brightness 1200 maximum cd/m2
Interface RGB Interface

Note 1: Color tune is slightly changed by temperature and driving voltage.

5.7 inch 640x480 IPS TFT Module
