5.0 Inch 800x480 TFT LCD Module RGB888 Interface with CTP - VXT500QWH-51C
  • 5.0 Inch 800x480 TFT LCD Module RGB888 Interface with CTP - VXT500QWH-51C5.0 Inch 800x480 TFT LCD Module RGB888 Interface with CTP - VXT500QWH-51C

5.0 Inch 800x480 TFT LCD Module RGB888 Interface with CTP - VXT500QWH-51C

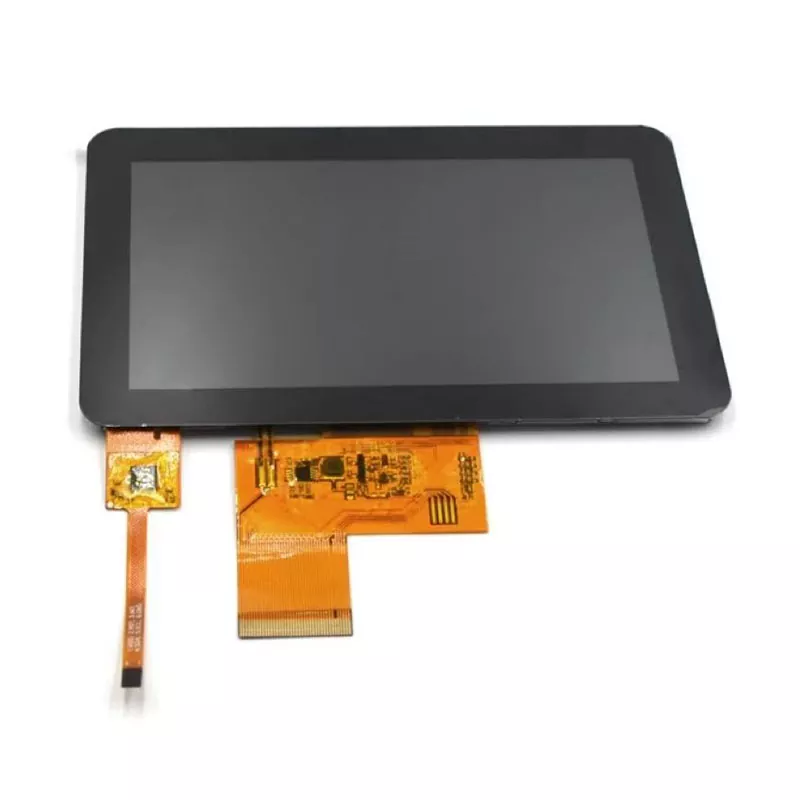

This Victronix 5 inch Capacitive Touch TFT Module is a high-performance 5 inch TFT-LCD module integrating a capacitive touch panel (CTP), designed for industrial HMI, embedded systems, and interactive applications. Combining an 800 × 480 RGB pixel display, 16.7M color depth, and robust environmental compliance, this RoHS-certified module delivers exceptional clarity and reliability. As a professional manufacturer and supplier of TFT modules in China, Victronix 5 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT500QWH-51C

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Industrial HMI and machine control panels — 800 × 480 over 24-bit RGB, in DE or SYNC mode, with capacitive touch.
  • Handheld and portable field instruments — a single 3.3 V rail and a documented touch connector.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Point-of-sale and payment terminals — a touch surface with interrupt-driven reporting.
  • Access control, intercom and door panels — a keypad or directory view.
  • Kiosk, vending and ticketing terminals — indoor, at 420 cd/m² with the touch panel fitted.
  • Medical devices and portable monitors — genuine 24-bit colour and a stated contrast floor.
  • Factory automation and smart home control panels — −20 to +70 °C covers most indoor industrial ambient.
  • Retrofits of existing 5.0-inch 800 × 480 equipment — a size fewer suppliers still cover.
  • Projects that need real 24-bit colour — where an 18-line bus would not be enough.

General Information

Item Value
Model VXT500QWH-51C
Composition Panel, driver IC, FPC, back light unit, CTP
LCD type TFT
Colour 16.7M — genuine, 24 lines
Viewing direction 12 o'clock
Grey scale inversion 6 o'clock
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C
Humidity ≤40 °C: 85% RH max; ≥40 °C: below the absolute humidity of 85% RH at 40 °C
Module size 120.7 × 76.3 × 5.28 mm — Note 2: with CTP, without FPC and solder
Active area 108.0 × 64.8 mm — 69.98 cm²
Pixel pitch 0.135 × 0.135 mm — exactly square
Resolution 800 × 480 (WVGA)
Pixel count 384,000
Fill factor 76.0%
TFT controller ILI5960 + ILI6122
CTP driver FT5426
Interface RGB888 — 24-bit parallel
CTP connector Separate 10-pin FPC — I2C, /RST 7, /INT 9, WAKE 8 NC
RTP pins 37–40 — not used, leave NC
Supply VDD 3.0 / 3.3 / 3.6 V; VDD-CTP 2.8 / — / 3.3 V
Brightness 420 cd/m² typical — measured WITH TP
Uniformity 75% min / 80% typ
Contrast 300 min / 500 typ
Response Tr 10 typ / 20 max ms
Viewing angle 65° at 3, 9, 12 o'clock; 55° at 6 o'clock
Backlight 18 LEDs — 6S3P, 3.0 V per LED, 20 mA per string
Backlight voltage 16.8 / 18.0 / 19.2 V
Backlight current 60 mA — test condition only
Backlight power 1.08 W (derived); 1.152 W at max Vf

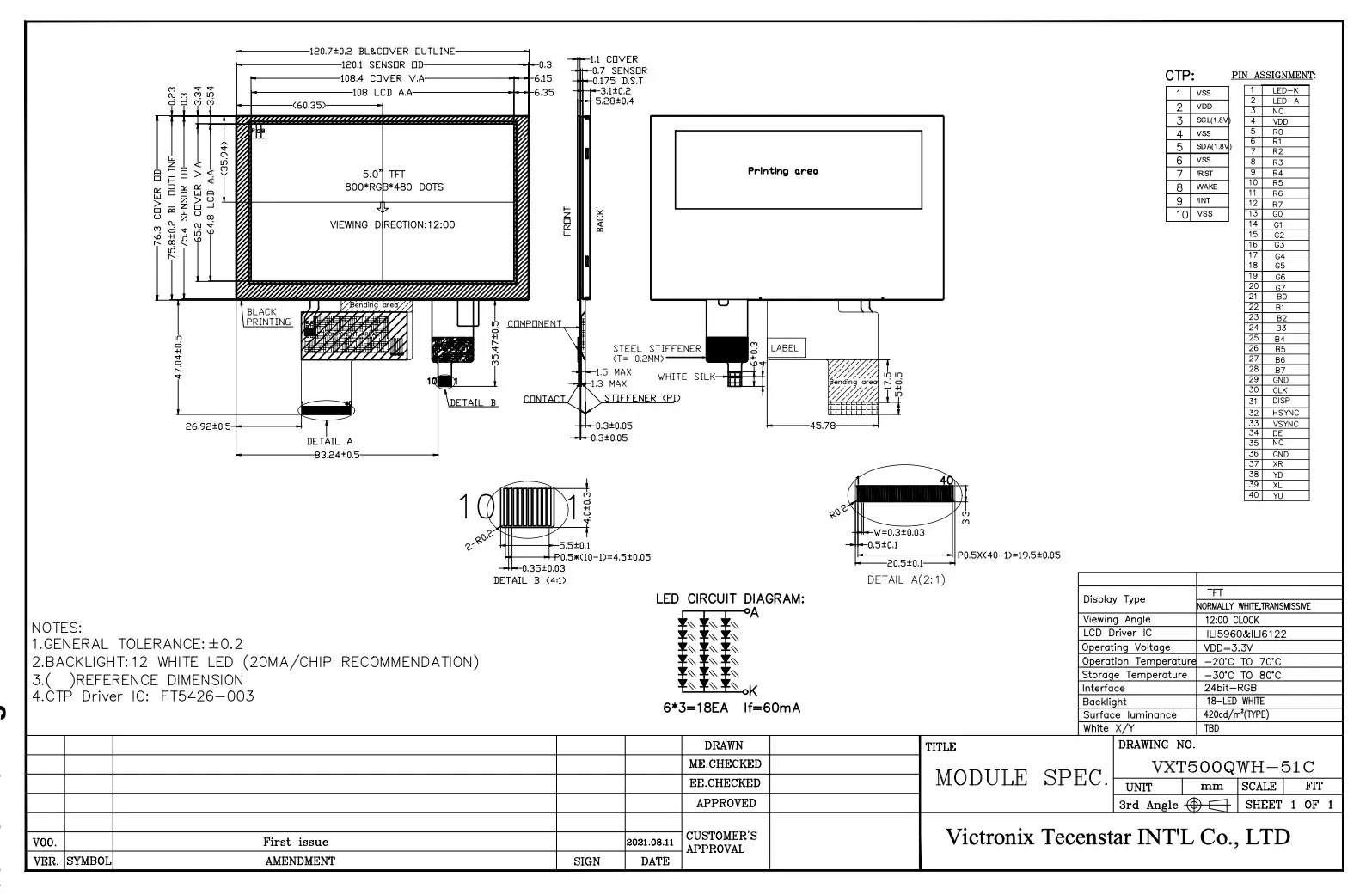

Outline Drawing
