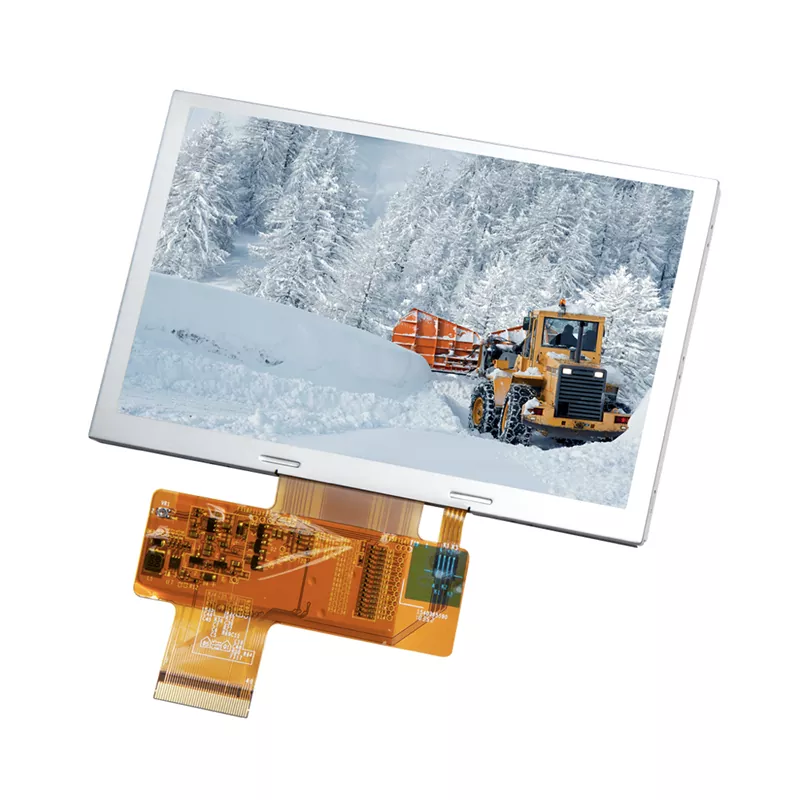

5.0 Inch 800x480 WVGA TFT LCD Module 24-Bit RGB - VXT500TWH-01
The VXT500TWH-01 is a 5.0-inch TFT LCD module with 800 x 480 pixels in a landscape 5:3 shape, luminance has a stated minimum of 180 against 250 typical, uniformity a minimum of 75%, and the viewing angle a floor in every direction.The interface is a plain 24-bit parallel RGB on a 40-pin FPC from a single 3.3 V rail, which a microcontroller with an LCD controller drives directly, and the frame buffer is a manageable 750 KB at RGB565.
Model:VXT500TWH-01
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Industrial control panels and operator terminals — 800 × 480 is a resolution a great deal of industrial software already targets.
- Handheld and portable instruments — 750 KB frame buffer stays within reach of modest hosts.
- Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
- Medical devices and monitors — a common resolution in portable medical equipment.
- Replacement displays in existing 5.0-inch equipment — check the active area and the 5:3 shape against your cut-out.
- Kiosk and point-of-sale terminals — indoor, with an anti-glare polarizer for overhead lighting.
- Smart home control panels — wall-mounted, with the viewing direction known in advance.
General Specification
| Item | Contents | Unit |
|
Model |
VXT500TWH-01 |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE(W*H*T) | 120.70*75.80*3.10 | MM |
| ACTIVE SIZE (W*H) | 108.00*64.80 | MM |
| PIXEL PITCH(W*H) | 0.135*0.135 | MM |
| NUMBER OF DOTS | 800*480 | |
| DIVER IC | HX8664B+HX8264D | |
| INTERFACE TYPE | 24-BIT RGB | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | 12 | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 | O'CLOCK |
| COLORS | 16.7M | |
| BACKLIGHT TYPE | 12-DIES WHITELED | |
| BRIGHTNESS | 250NITS |
|
| TOUCH PANEL TYPE | WITHOUT |

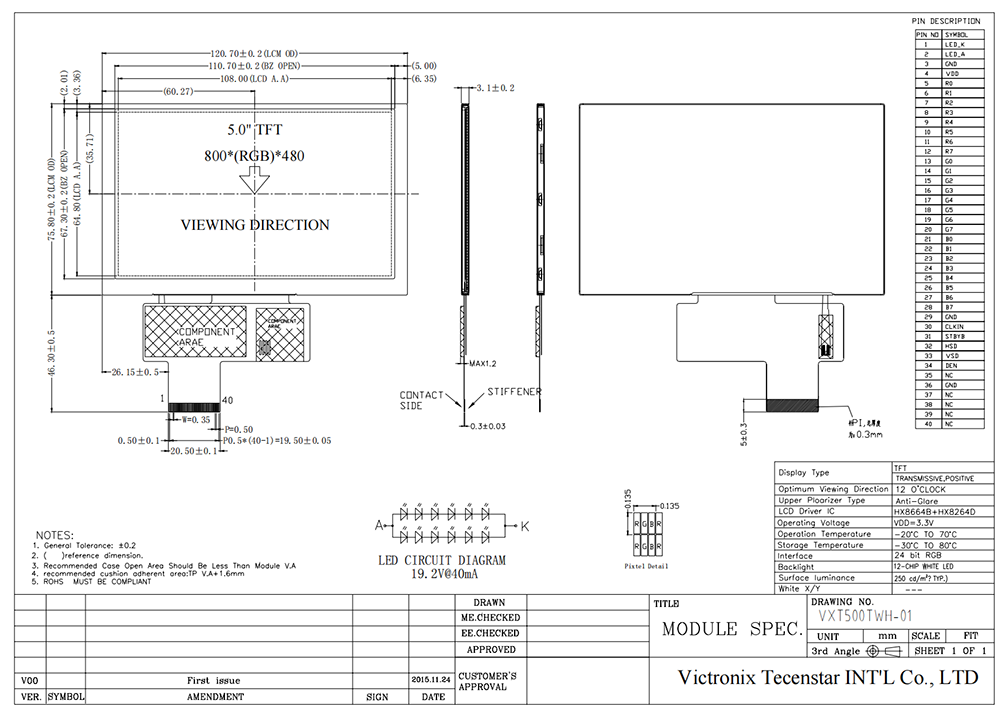

Mechanical Drawing
