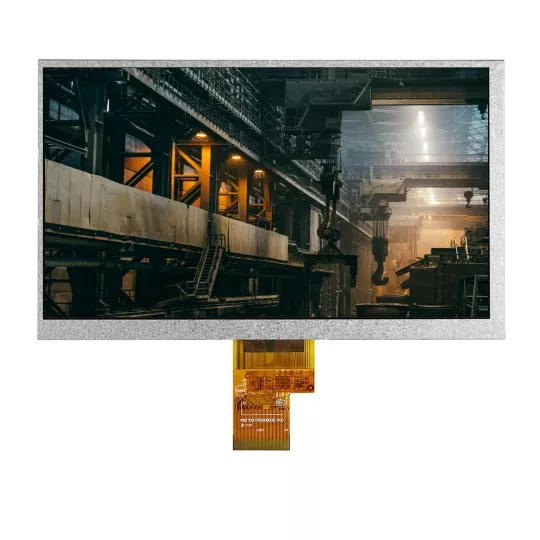

7 Inch IPS TFT LCD Module with 10 Point Touch

The VXT700IXN-06C3 combines a compact color display with 10-point capacitive touch and chemically strengthened cover glass. Its glass-on-glass touch structure, LVDS input and I2C touch connection suit space-conscious equipment interfaces.

Model:VXT700IXN-06C3

Send Inquiry PDF DownLoad

Product Description

This 7 inch TFT module from Victronix is designed for industrial control systems, medical monitoring devices, test & measurement instruments, and portable field equipment.

General Information

Model	VXT700IXN-06C3
Display Type	TFT LCD with capacitive touch panel
Screen Size	7 inch
Resolution	1024 × 600 pixels
Display Mode	Normally white, transmissive
Preferred Viewing Direction	12 o'clock
LCD Polarizer Surface	Glare
Brightness with Touch Panel	420 cd/m² (typ.)
Active Area (W × H)	153.60 × 90.00 mm
Cover Viewing Area (W × H)	154.40 × 90.80 mm
Module Outline (W × H)	165.75 × 105.39 mm
Module Thickness	5.18 ± 0.40 mm
LCD Driver IC	NT51008CH + NT52002H
LCD Connection	40-pin FPC, 0.50 mm pitch
LCD Logic Voltage	3.3 V
Touch Technology	Capacitive touch
Touch Structure	Glass-on-glass (G+G)
Touch Points	10
Touch Controller	FT5426DQ8
Touch Interface	I²C
Touch Connection	8-pin FPC, 0.50 mm pitch
Touch Supply Voltage (VCC)	2.8–3.3 V
Touch I/O Voltage (IOVCC)	2.8–3.3 V
Cover Glass	Chemically strengthened glass
Cover Glass Thickness	1.10 ± 0.10 mm
Touch Surface Hardness	7H
Touch Panel Transmittance	≥85%
Backlight	White LED, 3 in series × 9 parallel strings
Backlight Voltage	9.6 V
Backlight Current	180 mA
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Compliance	RoHS compliant

A Compact Touch Interface for Equipment

The VXT700IXN-06C3 brings graphical controls and information display into a compact front panel. Its landscape layout can accommodate navigation buttons, measurement values and operating status, making it an option for instruments, desktop devices and embedded control terminals.

Strengthened Glass for Frequent Interaction

The touch assembly uses a glass-on-glass structure with chemically strengthened cover glass and a black printed border. Multi-touch capability allows compatible host software to support gestures and simultaneous finger input.

Designing the Host Connection

LVDS carries the display signal, while a separate I²C connection handles touch input. When planning the enclosure and host board, check the preferred viewing direction, FPC routing and power requirements against the drawing. Allow suitable support and clearance around the glass and component areas.

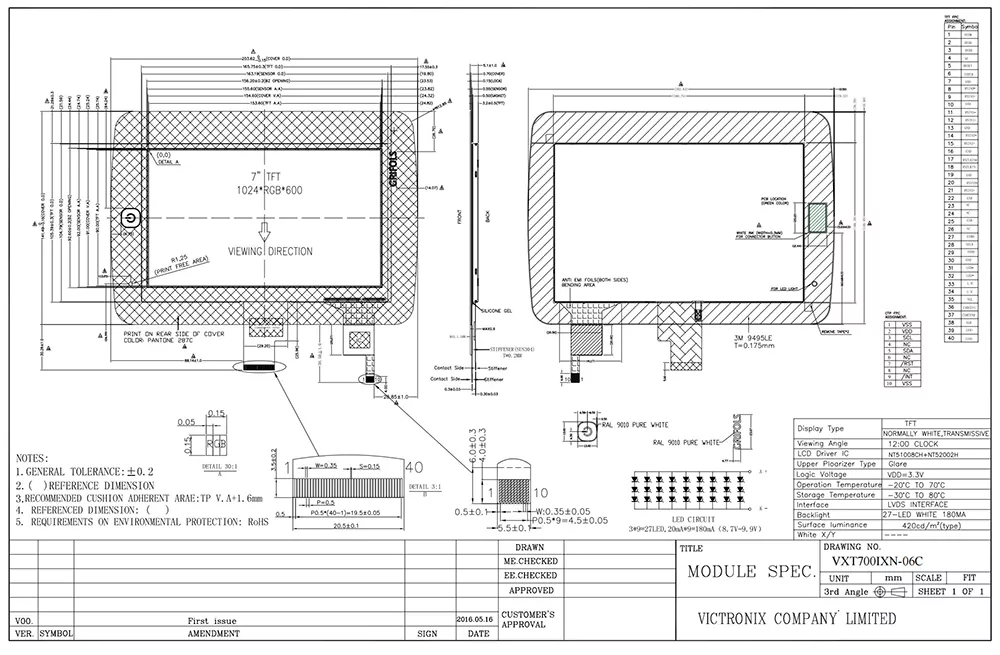

Outline Drawing
