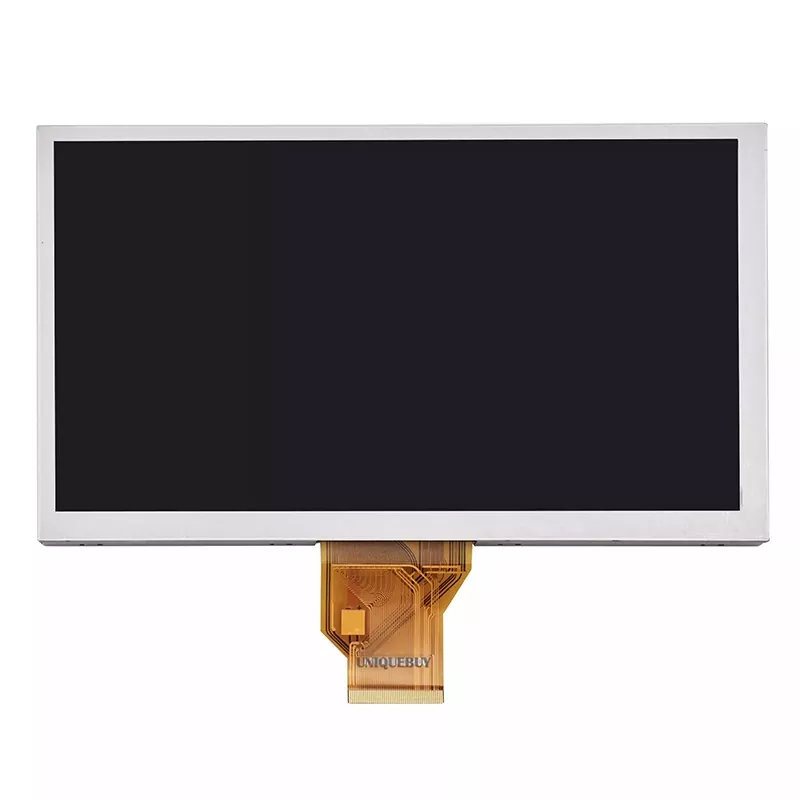

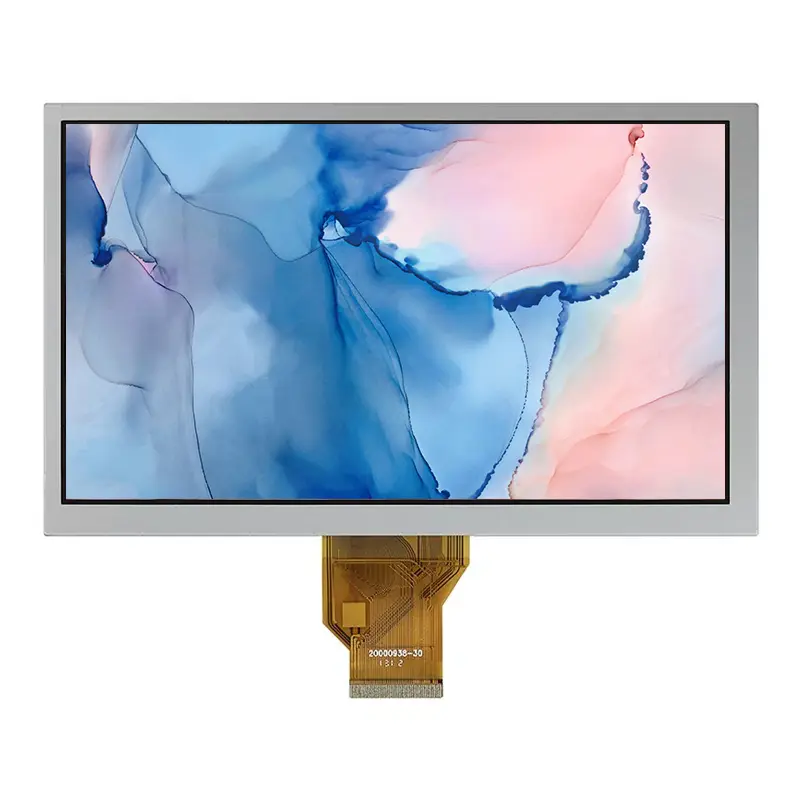

This Victronix 8 Inch AT080TN64 LCD Display is a high-performance 8 inch TFT LCD module engineered for embedded systems requiring compact size, reliability, and vivid display quality. Featuring 800(RGB)×480 resolution within a compact 192.8×116.9×6.4mm footprint, this anti-glare display combines clarity with durability. It offers a typical brightness of 450 cd/m², wide viewing angles of 70° horizontal/50° vertical, and a contrast ratio of 500:1, ensuring excellent readability from various angles. Secondly, it supports a 24-bit RGB TTL interface with programmable scan direction (via U/D and L/R control pins) and DE/SYNC mode selection. Besides, it features an LED system with a lifespan of 20,000 to 50,000 hours , ensuring long-term use in various industrial applications. In addition, it is validated through thermal shock, humidity, vibration, and drop tests to operate reliably in extreme temperatures (-20°C to +70°C). For Industrial HMIs, medical devices, transportation systems, and embedded applications requiring sunlight-readable, shock-resistant displays with extended temperature operation.

Model:VXT800IWN-01

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Industrial HMI and machine control panels — a 800 × 480 WVGA canvas at a fixed mounting orientation.
  • Handheld and portable field instruments — the natural step up from 320 × 240.
  • Medical devices and portable monitors — normally white, anti-glare, wipe-clean.
  • Point-of-sale and payment terminals — a landscape list, receipt or menu view.
  • Test and measurement equipment — waveforms, numeric readouts and menus in 800 × 480.
  • Marine instrument consoles and vehicle dashboards — shaded cabins, fixed mounting, hardware scan reversal if the panel is mounted rotated.
  • Access control, intercom and door panels — a keypad or a list in a landscape cut-out.
  • Kiosk, vending and ticketing terminals — indoor, at 360–450 cd/m².
  • Retrofits of existing 8.0-inch 800 × 480 equipment — the standard WVGA replacement size.
  • Designs where the interface must be decided in hardware — MODE, scan direction and dithering are all straps, with no firmware dependency at all.

Item Value
Model VXT800IWN-01
LCD size 8.0 inch diagonal
Driver element a-Si TFT active matrix
Resolution 800 × 3(RGB) × 480
Display mode Normally white, transmissive
Dot pitch 0.0736 (W) × 0.207 (H) mm — sub-pixel; pixel pitch 0.2208 × 0.207 mm
Active area 176.64 × 99.36 mm — 175.51 cm²
Module size 192.8 × 116.9 × 6.4 mm
Pixel shape NOT square — 1.0667, about 6.7% wider than tall
Density 116.9 PPI (derived)
Surface treatment Anti-glare
Interface 24-bit RGB (TTL)
Scan direction L/R pin 39 and U/D pin 40 — four combinations
Touch panel None
Connector 50-pin FPC, 0.5 mm pitch — Hirose FH12A-50S-0.5SH
Backlight 9.6 V at 180 mA — derived 1.728 W
LED absolute max 25 mA per LED; reverse voltage 1.2 V
Backlight life 20,000 h min, no typical
Brightness 360 min / 450 typ cd/m²
Contrast 400 min / 500 typ
Response TON 10 typ / 20 max ms; TOFF 15 typ / 30 max ms
Uniformity 70 min / 75 typ %
Viewing angle 9 and 3 o'clock 60 min / 70 typ; 12 o'clock 40 min / 50 typ; 6 o'clock 60 min / 70 typ
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C
Packing 30 pieces per carton; carton 530 × 355 × 255 mm

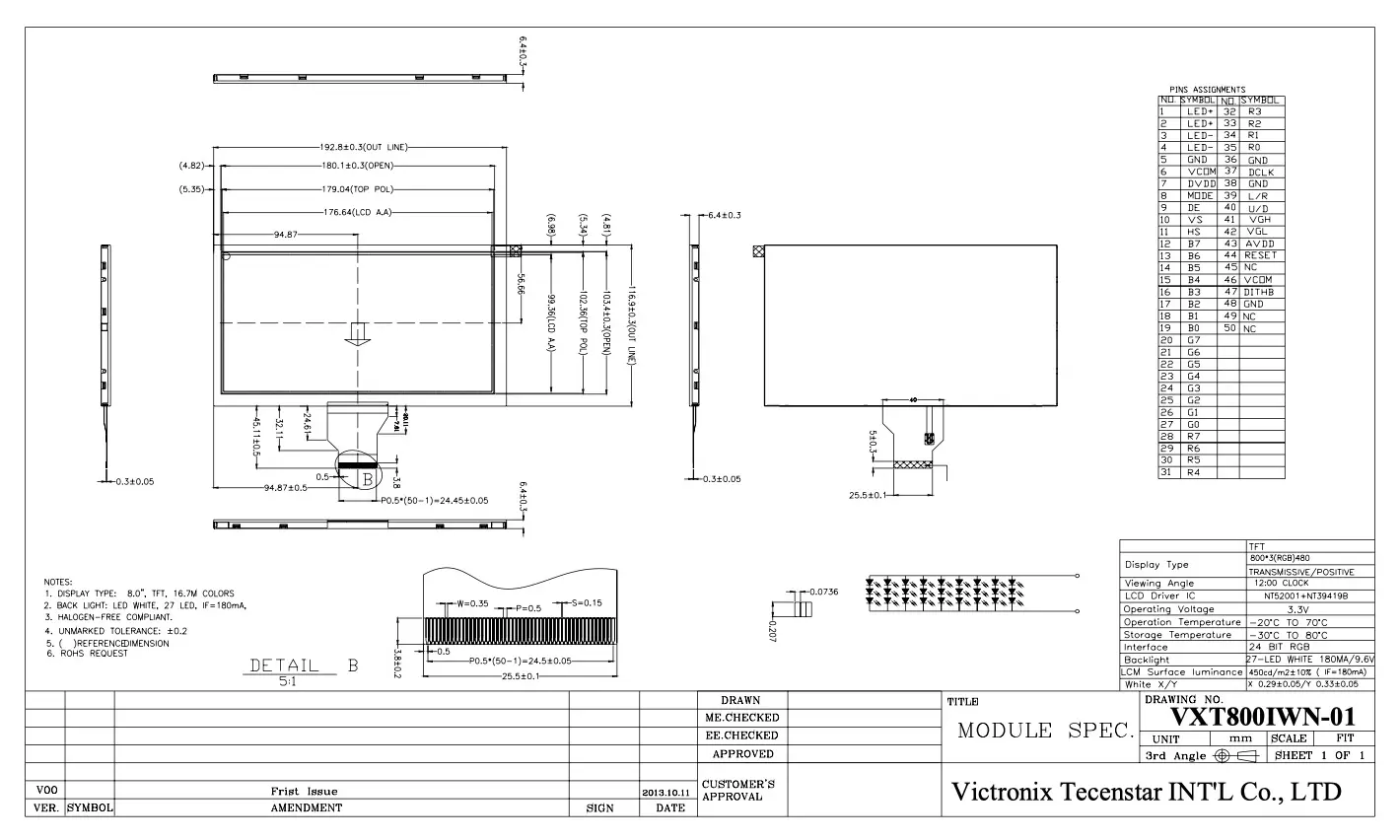

Outline Drawing

8 Inch AT080TN64 LCD Display
