Segment LCD Module 4-COM 59-SEG 228 Segments 1/4 Duty - VX50055-TD033LA
  • Segment LCD Module 4-COM 59-SEG 228 Segments 1/4 Duty - VX50055-TD033LASegment LCD Module 4-COM 59-SEG 228 Segments 1/4 Duty - VX50055-TD033LA

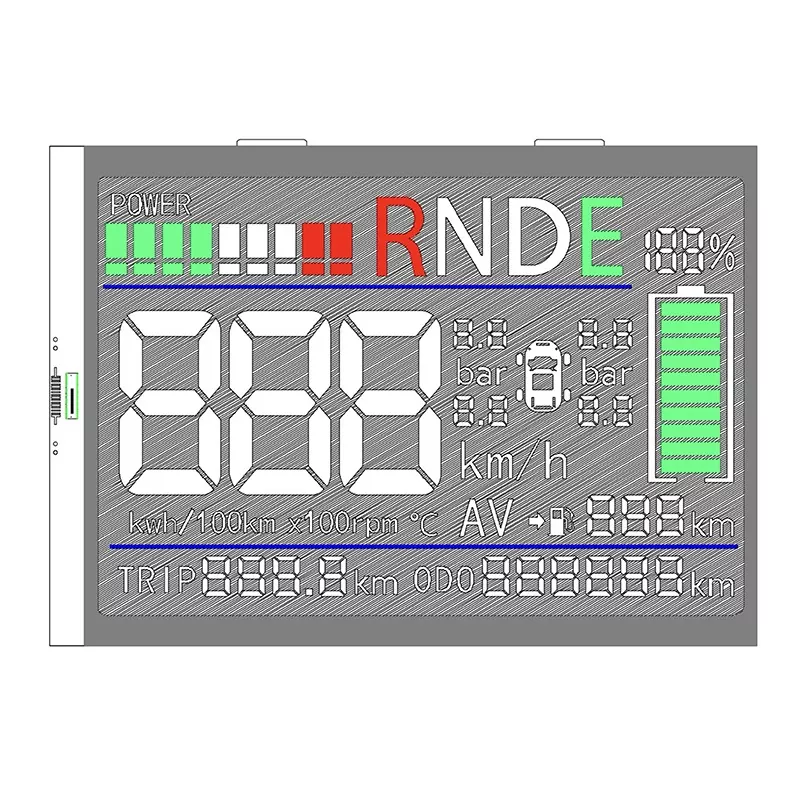

Segment LCD Module 4-COM 59-SEG 228 Segments 1/4 Duty - VX50055-TD033LA

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This Victronix Transflective Segment VA LCD Module provides reliable performance and versatile display capabilities, designed to meet particular customer integration requirements. It is suitable for automation equipment and digital measuring instruments, medical measuring devices (blood pressure monitors, infusion pumps, etc.), meters, handheld devices, car dashboards and car audio systems, audio systems, coffee makers, and microwaves.

Model:VX50055-TD033LA

Send Inquiry    PDF DownLoad

Product Description

General Information

Item Value
Model VX50055-TD033LA,
Type Monochrome segment LCD module
COM lines 4 — COM0, COM1, COM2, COM3
SEG lines 59 — SEG0–SEG58
Duty 1/4
Segments per COM COM0 58 / COM2 58 / COM1 59 / COM3 53
Seven-segment digits 26 — 1–3 and 5–27; digit 4 has no A–G
Icon segments S1–S26 (26)
Driver RAM 236 bits ≈ 29.5 bytes (derived)

Where It Gets Used

The segment content — 26 seven-segment digits, five decimal points, an eleven-step bar and 26 icons — points to a multi-field instrument or meter display, though the drawing is needed to confirm what the icons show. Applications consistent with this density:

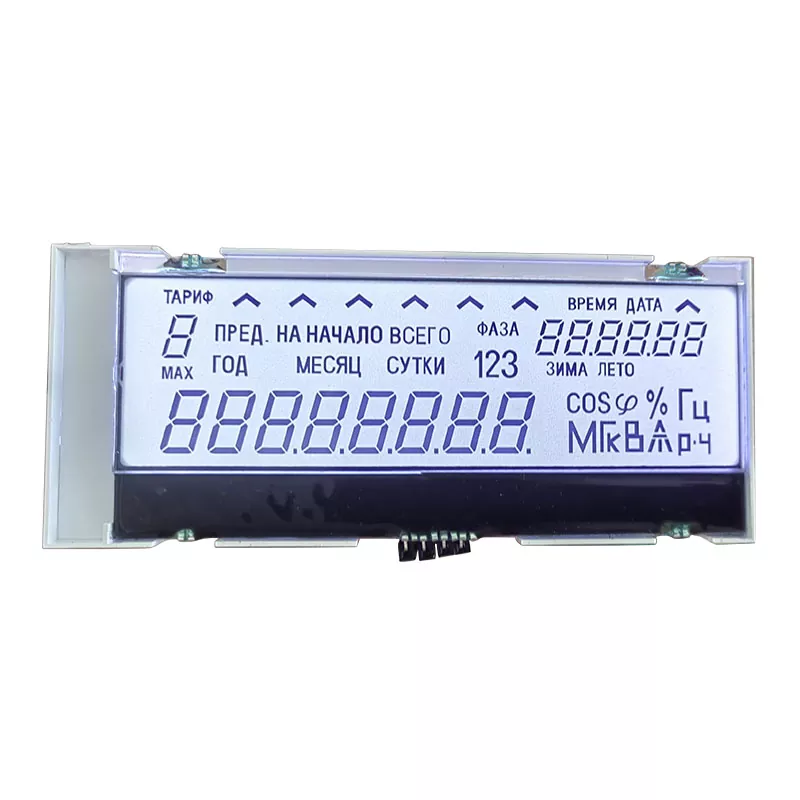

  • Multi-tariff and multi-function energy meters — many digit fields with individual decimal points.
  • Multi-parameter process and panel instruments.
  • Industrial controllers with a numeric readout plus status icons.
  • Test and measurement equipment with several simultaneous readings.
  • Battery, power and charging equipment — the eleven-step bar suits a level or state-of-charge indication.

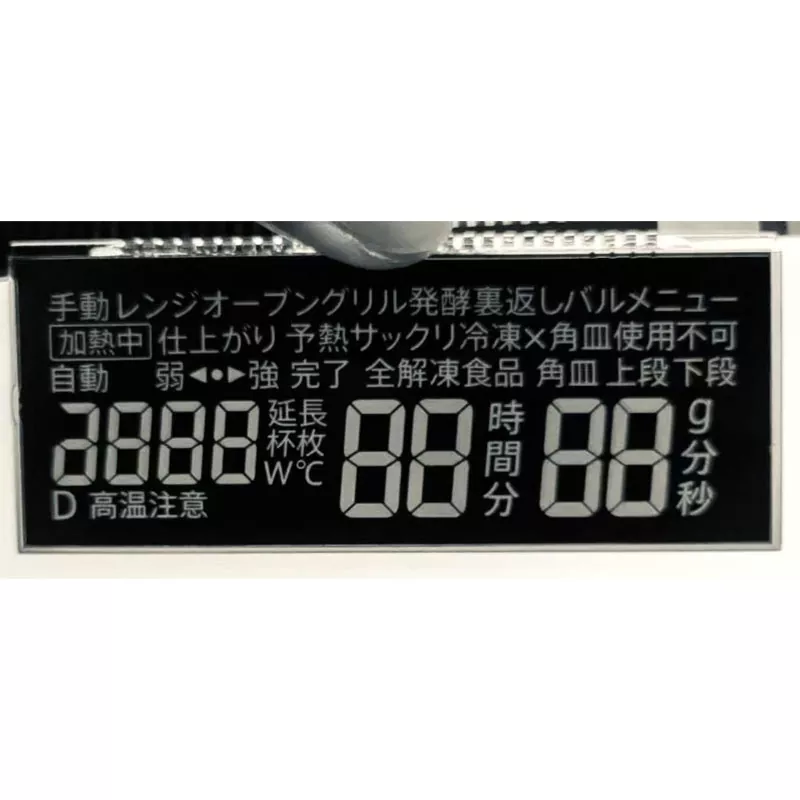

  • White goods and HVAC panels needing many digits and icons on one glass.

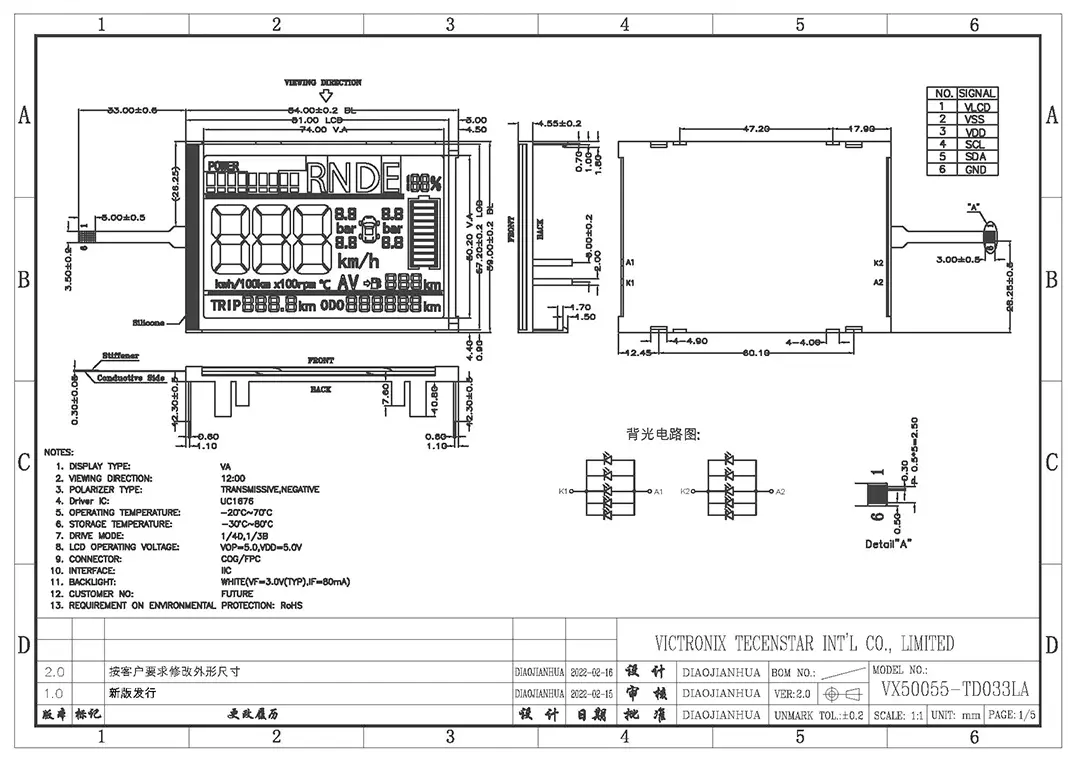

Outline Drawing
