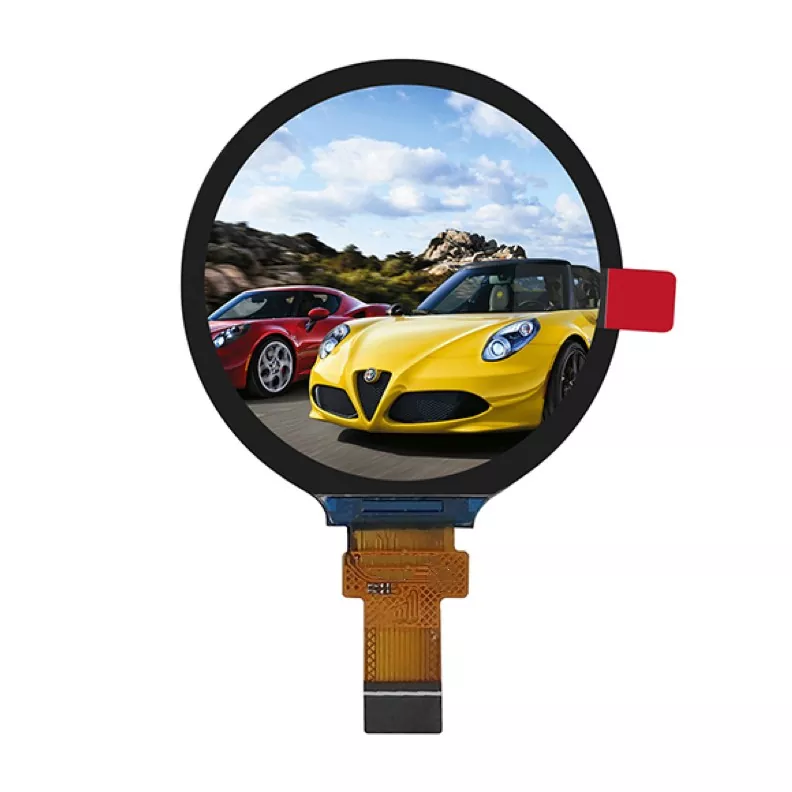

1.6 Inch 400x400 Round TFT LCD Module QSPI Interface - VXT016VCSA-01
The VXT016VCSA-01 is a 1.6-inch round TFT module with a QSPI interface — the only module in our range with a four-lane serial pixel bus. Small round displays usually want a serial interface because pins are scarce, but 400x400 is 160,000 pixels and single-lane SPI struggles to move a full frame; QSPI carries four bits per clock, roughly four times the throughput at 62.5 MHz, while still using only four data pins. It is also the smallest and densest panel we make at 1.6 inches and 255 PPI with square pixels. ST77903, 16.7M colours, 3.0 V backlight needing no boost, -20 to +70°C.
Model:VXT016VCSA-01
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Smart watches and wearables — round format, 1.6 inches, 255 PPI for small text.
- Round gauges and instrument faces — dial-style readouts on real hardware.
- Compact control knobs — a display at the centre of a rotary control.
- Portable medical and fitness devices — worn or carried, 0.18 W backlight.
- Smart home controls — round wall or desk interfaces.
- Battery products on 1.8 V logic — IOVCC connects directly, shifters not needed.Status and notification displays — small, dense, low power.
General Specifications
|
Item |
Contents |
Unit |
Note |
|
LCD Type |
TFT |
- |
|
| Model |
VXT016VCSA-01 |
|
|
| Shape | Round |
|
|
|
Display color |
16.7M |
|
|
|
Viewing Direction |
ALL |
O’Clock |
|
|
Operating temperature |
-20~+70 |
℃ |
|
|
Storage temperature |
-30~+80 |
℃ |
|
|
Module size |
Refer to outline drawing |
mm |
|
|
Active Area(W×H) |
39.84*39.84 |
mm |
|
|
Number of Dots |
400X400 |
dots |
|
|
Driver IC |
ST77903 |
- |
|
|
Power Supply Voltage |
3.3 |
V |
|
|
Outline Dimensions |
Refer to outline drawing |
- |
|
|
Backlight |
1S3P-LEDs (white) |
pcs |
|
|
Interface |
QSPI |
- |
|

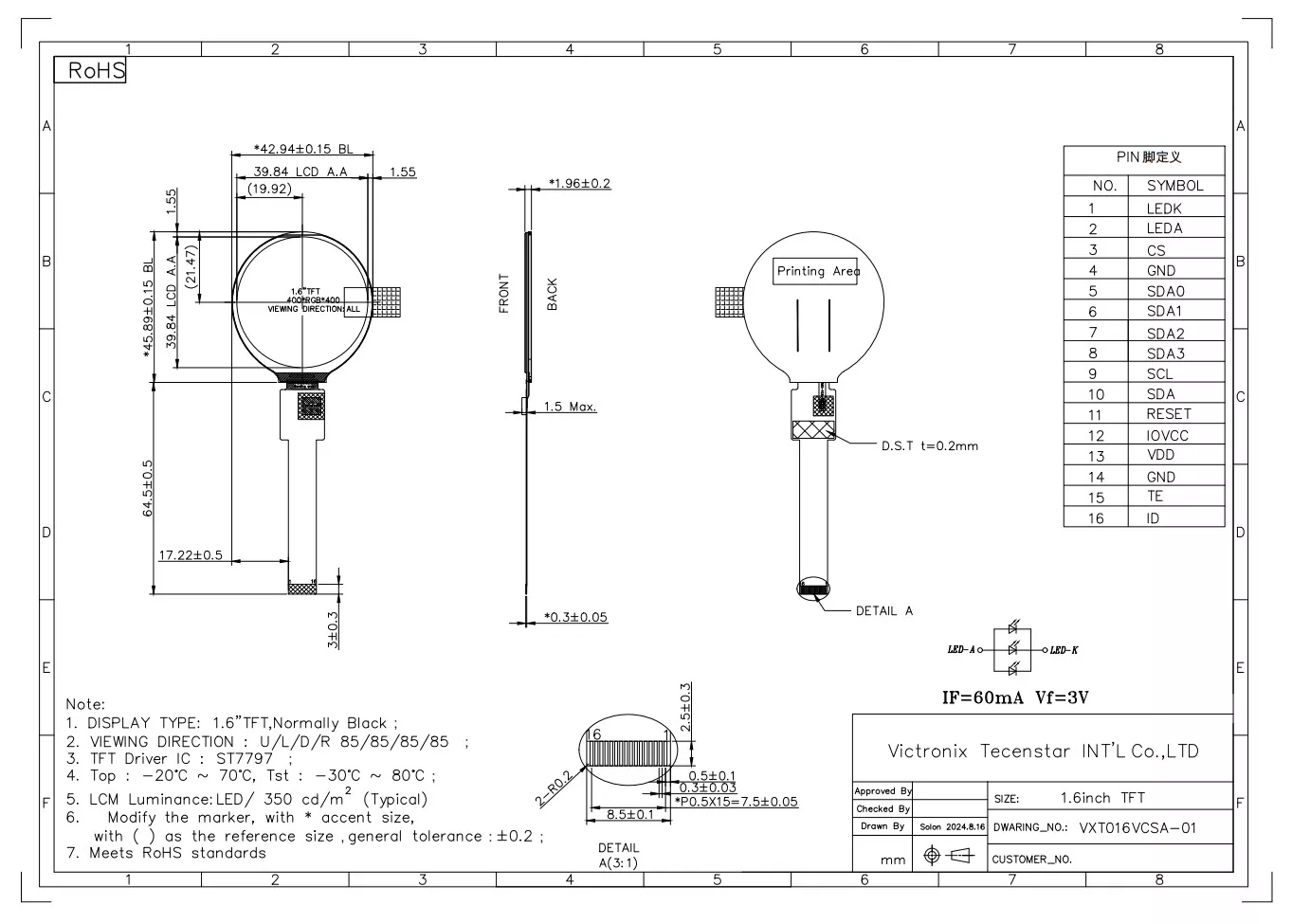

Outline Drawing
