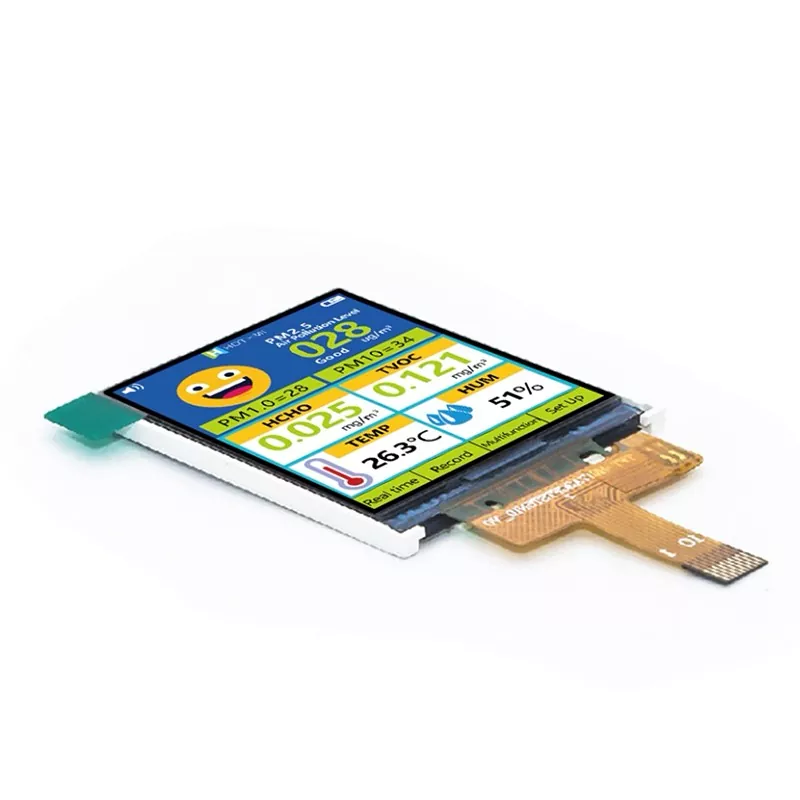

1.77 Inch Compact TFT LCD with MCU Interface
The VXT177SSI-02 brings color graphics to compact equipment with a 1.77-inch TFT display and an 8-bit MCU interface. Its small footprint provides an option for handheld instruments, portable devices and simple menu-based control panels.
Model:VXT177SSI-02
Send Inquiry PDF DownLoad
Product Description
Color Feedback in a Small Space
The VXT177SSI-02 TFT LCD provides a compact canvas for readings, icons and short menus. Color can help users distinguish operating modes, identify selected functions and recognize changes in equipment status without adding more physical indicators.
A Practical Fit for Compact Products
The small module footprint leaves room for buttons and other controls on a compact front panel. Potential applications include handheld measuring instruments, portable devices and equipment requiring a simple local display. Focused screen layouts can keep essential information easy to find.
Parallel Communication with the Host
An 8-bit MCU interface connects the display to a compatible host controller, with the ILI9163V providing display control. The module offers a color interface option for embedded designs using a parallel data bus and physical user controls.
General Specifications
| Item | Contents | Unit | Note |
|
Model |
VXT177SSI-02 |
|
|
|
Display Size |
1.77 |
inch |
|
| LCD Type |
TFT LCD |
- | |
| Display color | 262K | ||
| Viewing Direction | 12 | O'Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Active Area(W×H) | 28.03x35.04 | mm | |
| Number of Dots | 128x160 | dots | |
| Controller | ILI9163V | - | |
| Power Supply Voltage | 2.8 | V | |
| Outline Dimensions | 34.70x46.70x2.60 | mm | |
| Backlight | 2x1-LEDs(white) | pcs | |
| Interface | 8BIT MCU | - | |
|
Brightness |
220 cd/m² typical |
cd/m² |
|
|
Contrast Ratio |
300:1 typical; 200:1 minimum |
|
|
|
Response Time |
30 ms typical; 60 ms maximum (Tr + Tf) |
|
|
|
Luminance Uniformity |
80% typical |
|
|
|
Color Gamut |
50% NTSC typical |
|
|
|
Backlight Voltage |
3.0 V typical |
|
|
|
Backlight Current |
30 mA typical |
|
|
|
Backlight Power |
0.09 W typical |
|
|
|
Operating Temperature |
-20°C to +70°C |
|
|
|
Storage Temperature |
-30°C to +80°C |
|
|

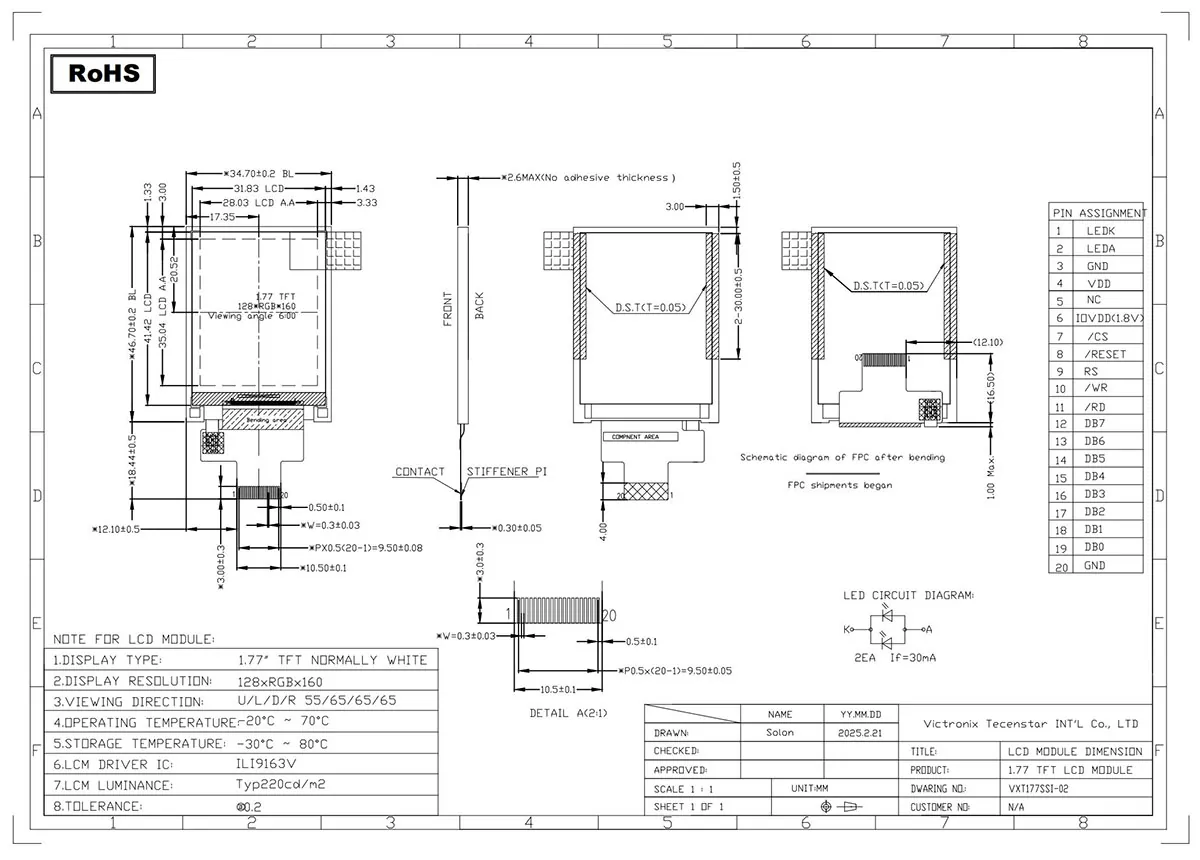

Outline Drawing
