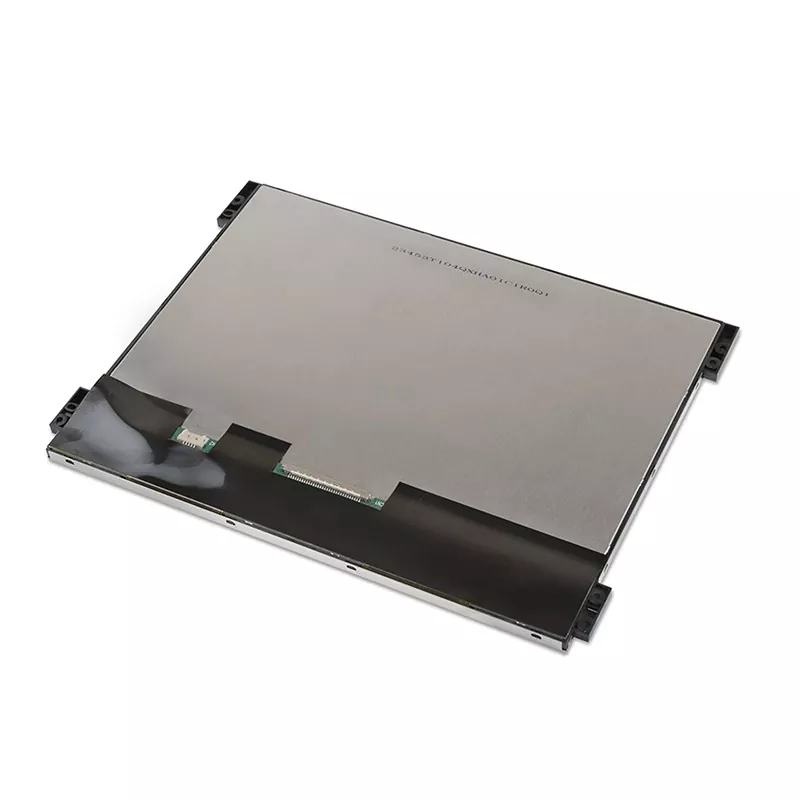

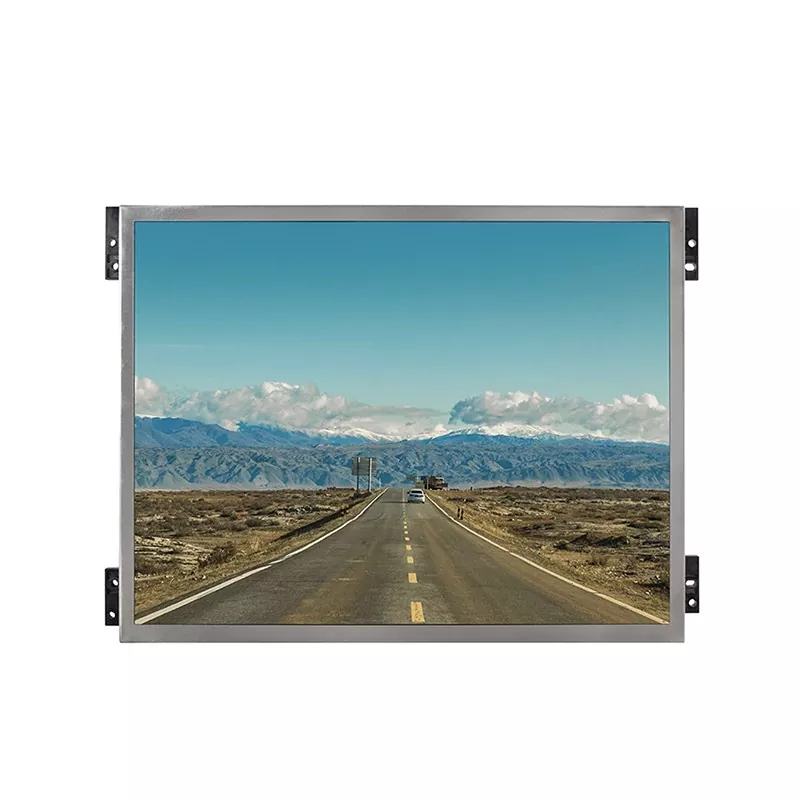

10.4 Inch 1024x768 XGA TFT LCD Module with HDMI Interface - VXT104QXHA-02-B

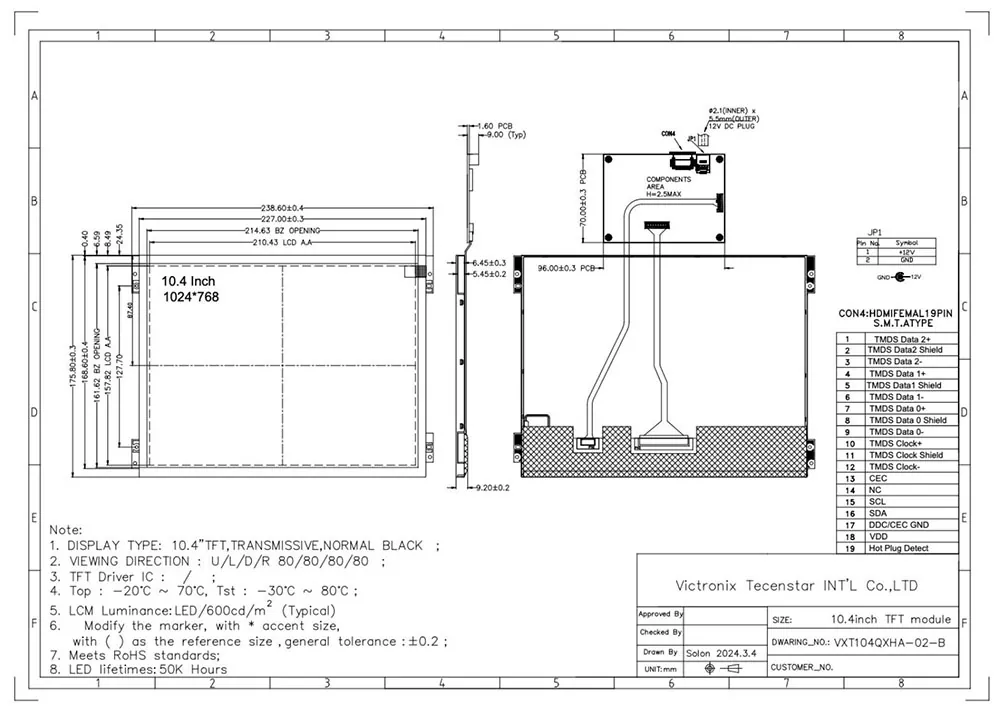

The VXT104QXHA-02-B is a 10.4-inch TFT LCD module with 1024 x 768 XGA resolution and an HDMI input — the first HDMI module in our range, and the difference is the point. Every other module we sell is a component you have to drive: your processor needs the right peripheral, your firmware needs an initialisation sequence, your board needs a frame buffer, and your power design needs the sequencing right. This one includes the driver PCBA, so it takes HDMI from a single-board computer, an industrial PC, a media player or a laptop and shows a picture. There is no display interface to design and no 1.5 MB of frame memory to find in your host. It is also the easy answer when an old XGA panel fails: you do not have to reproduce the original interface, just feed it HDMI from the new computer. Power comes from a 12 V DC jack or 5 V over the HDMI connector, with the jack recommended because no input current is published. Brightness is 600 cd/m² with contrast at 600 minimum and 800 typical, viewing angle 80° in all four directions, and pixels square to within 0.002% so circles need no correction. We are equally plain about what the document does not settle: no LED forward voltage or backlight power, no input current, brightness and viewing angle carry typical values with no minimums, the supported HDMI video modes are not listed, and the outline drawing is missing from the file.

Model:VXT104QXHA-02-B
