10.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-01
  • 10.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-0110.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-01
  • 10.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-0110.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-01

10.4 Inch 800x600 TFT LCD Module 4:3 Industrial Anti-Glare - VXTA40CAH-01

The VXTA40CAH-01 is a 10.4-inch TFT in 4:3 — the format industrial and medical equipment has been built around for twenty years. Its active area of 211.2 x 158.4 mm is the standard 10.4-inch size, so it drops into a cutout originally cut for a panel of this class, and legacy software written for 800x600 does not letterbox. It is bright at 650 cd/m² typical with a 520 minimum, uses an anti-glare polarizer for factory lighting, and ships without touch so it pairs directly with our 10.4-inch capacitive touch panel. The documentation is also unusually complete: ten reliability test items each citing its IEC and GB standard, a 50,000-hour MTBF, and inspection criteria given in millimetres. 24-bit RGB on 60 pins, -20 to +70°C.

Model:VXTA40CAH-01(V04)

Send Inquiry

Product Description

4:3, and Why That Is the Point

Nearly every panel made now is wide. This one is not, and for a large group of buyers that is the entire reason to choose it.

An industrial HMI is mostly a form, a list of readings, an alarm stack or a set of parameters — content that wants height, not width. A 16:9 panel of the same diagonal gives you less of what those interfaces use and more of what they do not.

Bright, with an Anti-Glare Surface

The top polarizer is anti-glare. In a factory with overhead lighting, or a room with windows, an untreated surface reflects the light source back at the operator and the reflection sits on top of the image. An anti-glare surface breaks that specular reflection into diffuse scatter, so it stops being a mirror. It is the right surface for this application, and worth confirming with us if you plan to add a cover lens — bonding can change the optical stack.

General Specifications

Item Contents Unit
Model VXTA40CAH-01

LCD TYPE TFT/TRANSMISSIVE
MODULE    SIZE(W*H*T) 228.5*175.5*5.9 MM
ACTIVE SIZE (W*H) 211.2*158.4 MM
PIXEL PITCH(W*H) 0.264*0.264 MM
NUMBER OF DOTS 800*600
DRIVER IC TBD
INTERFACE  TYPE 24-BIT RGB
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND   VIEWING   DIRECTION 12  O'CLOCK
GRAY SCALE INVERSION DIRECTION 6  O'CLOCK
BACKLIGHT  TYPE 36-CHIP WHITE LED
Luminance
520 min / 650 typ / 900 max cd/m²

TOUCH PANEL TYPE WITHOUT

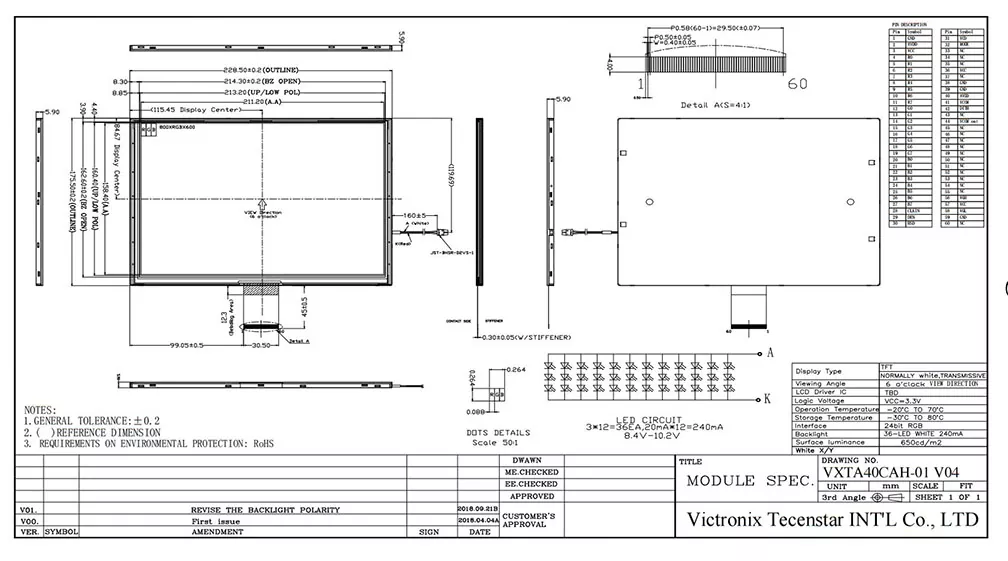

Outline Drawing
