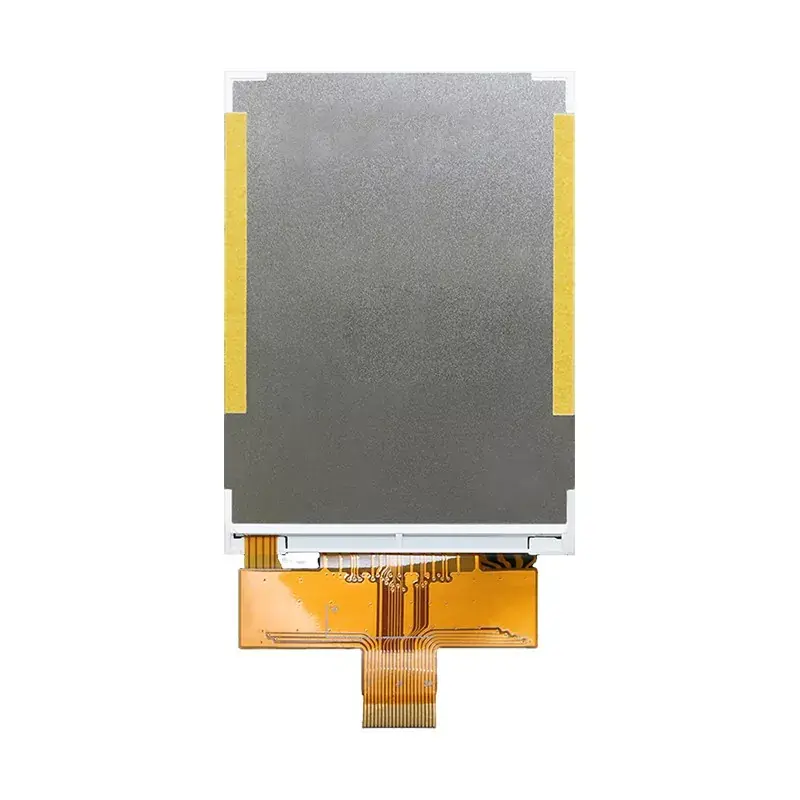

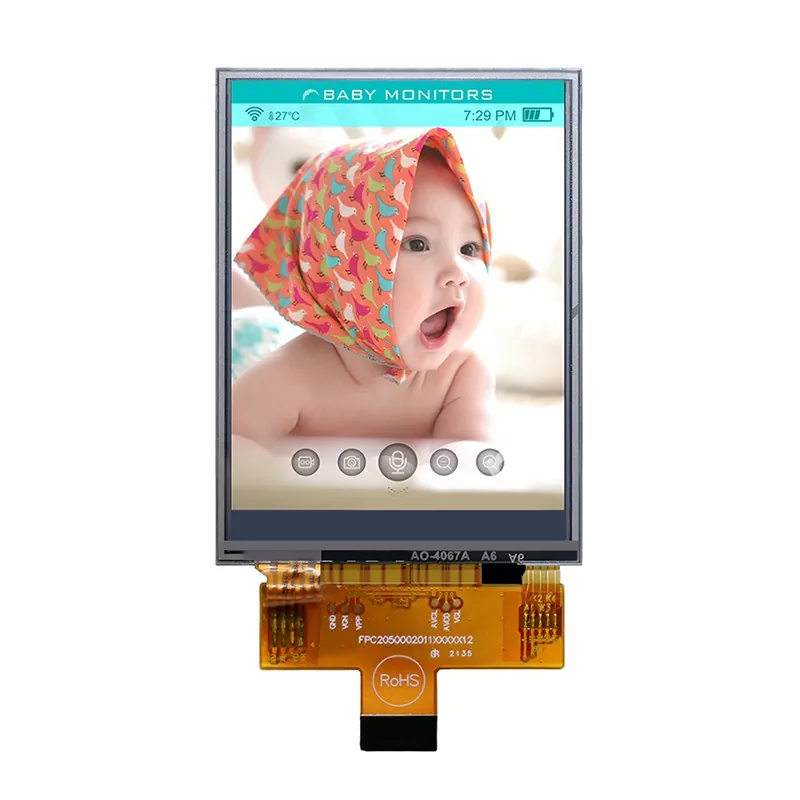

2.8 inch 240*320 Wide Temperature TFT Module

The VXT280GQSW-01 is a 2.8-inch wide temperature TFT LCD for compact equipment interfaces. A -30°C to +80°C operating range and selectable RGB, MCU or SPI communication modes give designers flexibility across different environments and host platforms.

Model:VXT280GQSW-01

Send Inquiry PDF DownLoad

Product Description

Built for a Wider Temperature Range

The VXT280GQSW-01 gives equipment designers a compact display option for applications exposed to cold starts and elevated ambient temperatures. Its wide operating range makes the module a candidate for measuring instruments, monitoring devices and equipment control interfaces with demanding temperature requirements.

Choose the Interface Around Your System

RGB, MCU and SPI interface modes allow the display connection to be selected around the host platform. Designers can consider available pins, data transfer requirements and software architecture when choosing the appropriate mode, with the ST7789V handling display control.

Keep Essential Information in Focus

The portrait display format provides space for readings, menu lists and status graphics within a small front panel.

Applications:

Industrial controls, medical devices, automotive dashboards, portable instruments, or embedded systems requiring reliability in extreme temperatures.

General Specifications

Item	Contents	Unit	Note
Model	VXT280GQSW-01
LCD Type	TFT	-
Display color	262K
Viewing Direction	6	O'Clock
Viewing Angle	Left / Right / Up / Down: 65° / 65° / 55° / 65° typical (CR ≥ 10)	℃
Operating temperature	-30~+80	℃
Storage temperature	-30~+80	℃
Module size	2.8	inch
Active Area(W×H)	43.20x57.60	mm
Number of Dots	240*320	dots
Controller	ST7789V	-
Power Supply Voltage	3.3	V

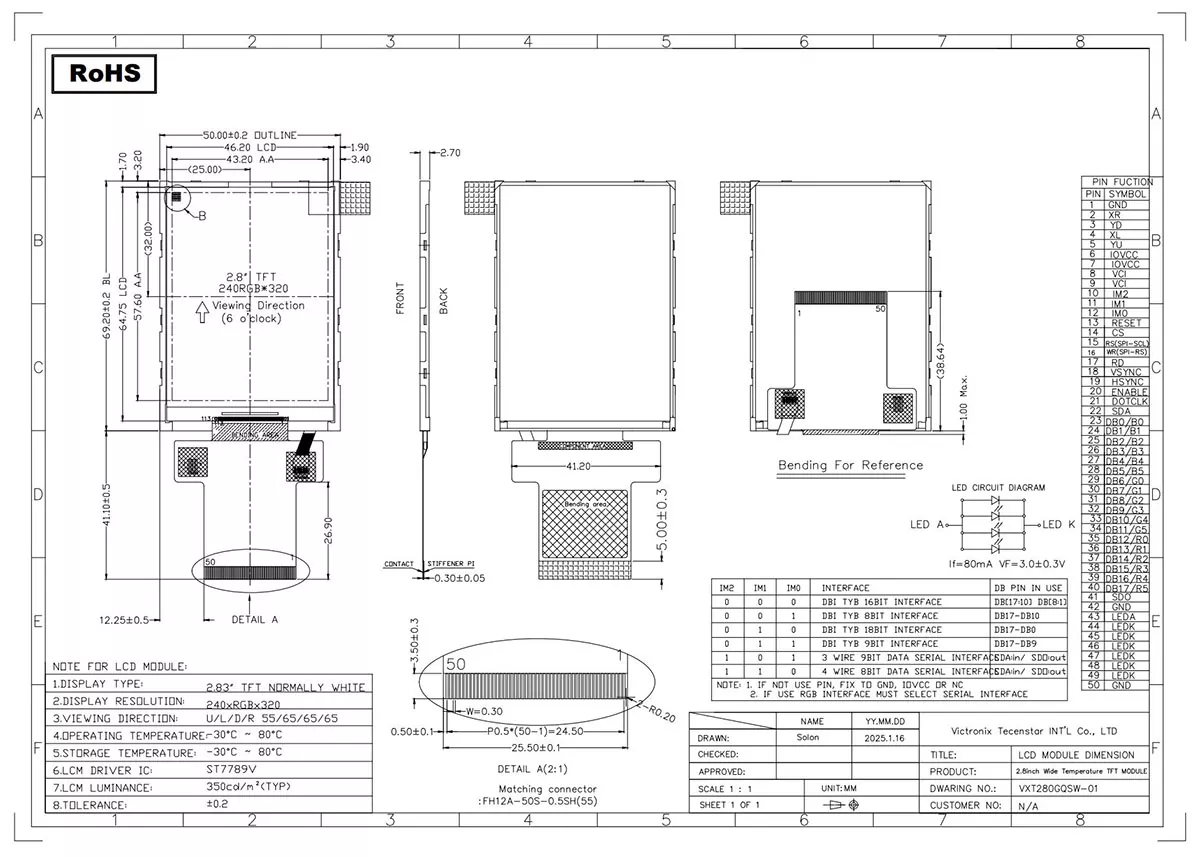

Outline Dimensions	50.00x69.20x2.7	mm
Backlight	4X1-LEDs(white)	pcs
Brightness	350 cd/m² typical	cd/m²
Contrast Ratio	500:1 typical
Response Time	30 ms typical; 35 ms maximum (Tr + Tf)	ms
Luminance Uniformity	80% minimum	%
Color Gamut	50% NTSC typical	%
Interface Options	RGB/MCU/SPI	-
MCU Interface	8080 parallel, 8 / 9 / 16 / 18-bit
Serial Interface	3-wire / 4-wire SPI
Operating Temperature	-30°C to +80°C	°C
Storage Temperature	-30°C to +80°C	°C
