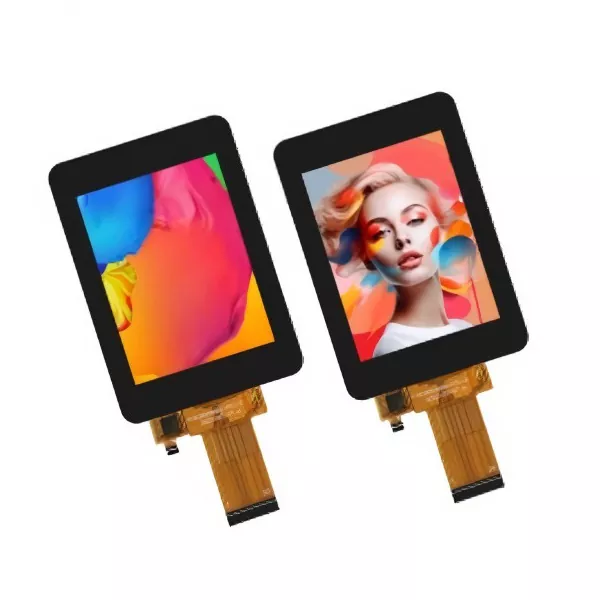

2.8" 240x320 Capacitive Touch TFT LCD Module, SPI

This Victronix 2.8inch 240*320 Projected capacitive touch IPS TFT Module combines a bright 240×320 IPS TFT panel (16.7M colors, 800 cd/m² brightness) with advanced 5-finger projected capacitive touch (≥6H hardness, ≥85% transparency). As a professional TFT module manufacturer and supplier in China, this Victronix 2.8inch TFT Module uses an industrial-grade design to provide superior application performance.

Model:VXT280QSA-07C

Send Inquiry    PDF DownLoad

Product Description

Three things decide most small-display choices, and this module addresses each directly:

  1. Touch is already part of the part. Sourcing a display and a touch sensor separately means matching two datasheets, aligning two active areas and either bonding them yourself or paying someone to. Here the CTP is integrated and electrically characterized — hardness, transparency and touch accuracy are all specified, so the interface behaves predictably in your enclosure.
  2. Four wires drive the display. A 4-line SPI bus needs only CS, SCL, SDA and D/C. Compare that with the 16-plus data lines of a parallel RGB bus or the differential pairs of LVDS, and the difference in PCB layers, routing time and MCU pin budget is substantial — often the deciding factor on a small board.
  3. The controller is one your team already knows. ST7789T3 is among the most widely supported display controllers in existence. Mature libraries exist for Arduino, ESP32/ESP-IDF, STM32, Raspberry Pi Pico and many other platforms, so getting a first image on screen is usually a matter of hours rather than a driver-writing project.


CTP Parameter

Item

Contents

Unit

Note

Cover View Area

44.0(H)X58.4(V)





CTP Resolution

240x320

dots



Interface Mode

IIC

-



Touch Mode

5 Human fingers multi-touch

-



Surfacehardness

>=6H

-



Transparency

>=85%

-



Accuracy

Centre +/-1.5mm,Edge +/-2.5mm

mm



CTP Controller

FT3269

-



Power Supply Voltage

3.3

V

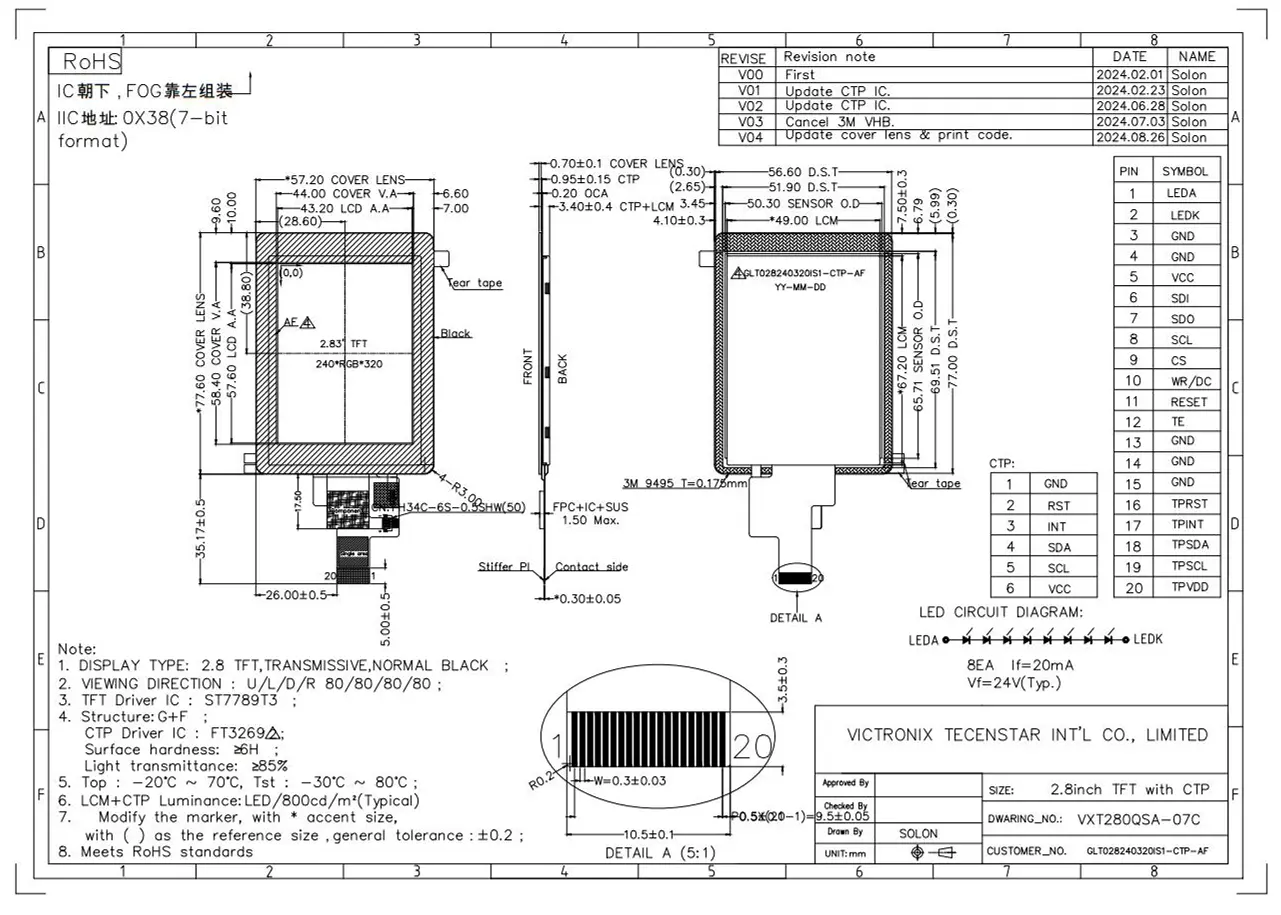

Outline Drawing
