3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P

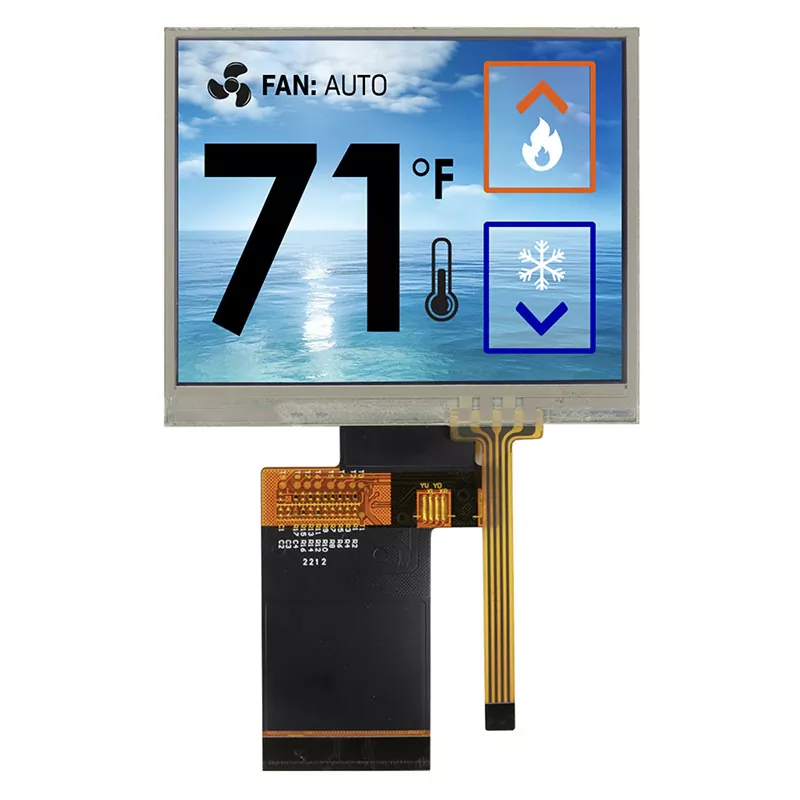

  • 3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P

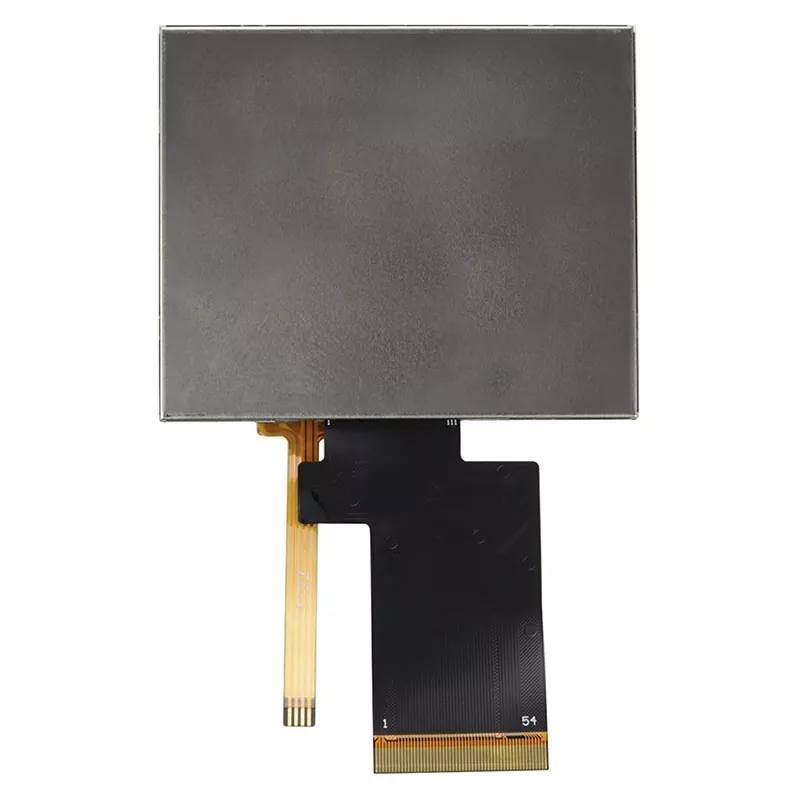

  • 3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P

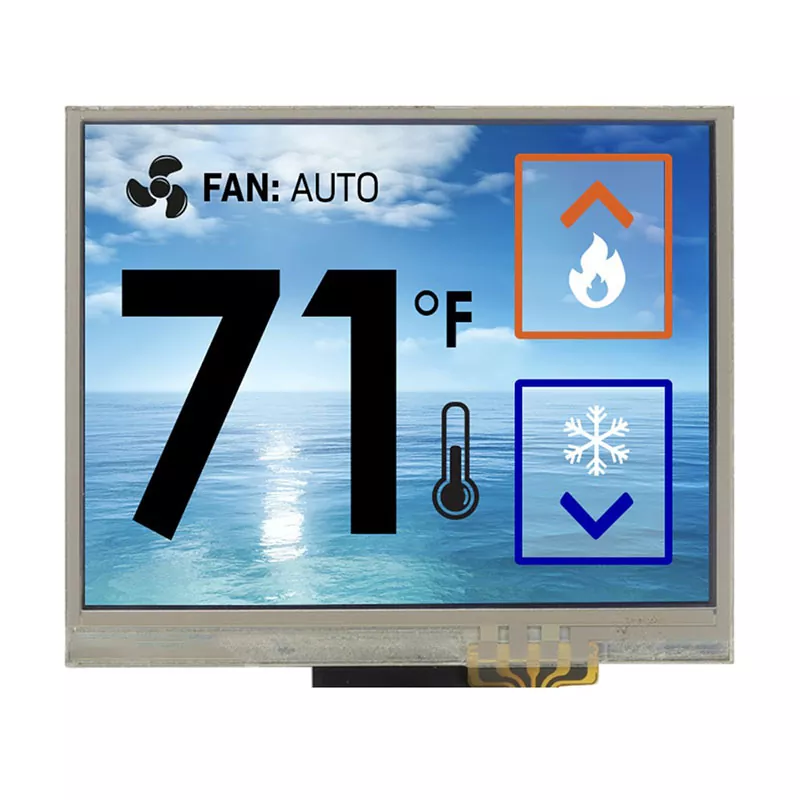

  • 3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P

3.5 Inch 480x272 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350PNO-01P

The VXT350PNO-01P is a 3.5-inch 480 x 272 TFT LCD module with a 4-wire resistive touch panel, Resistive sensing responds to pressure rather than to a finger's conductivity, so it works with gloves, wet hands, a stylus or a tool tip - which is why it remains the choice for industrial and medical equipment. The backlight is the most trustworthy figure in the document, because it is confirmed three independent ways: the block diagram states the circuit as 1 * 6LED, six in series; 19.2 V over six gives exactly 3.20 V per LED, which is the typical forward voltage the electrical table states; and the connector carries one cathode and one anode, which is what a single string looks like. Reliability is equally solid - nine tests, all at 240 hours, with a stated 50,000-hour MTBF.

Model:VXT350PNO-01P

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Handheld and portable field instruments — resistive touch works with gloves and in the rain.
  • Industrial HMI and machine control panels — operators in gloves, on factory floors, with dirty hands.
  • Portable monitors and medical devices — gloved operation, and a surface that can be wiped down.
  • Test and measurement equipment — 480 × 272 is a resolution a great deal of instrument software already targets.
  • Point-of-sale and payment terminals — signature capture with a pen, and a lower unit cost than capacitive.
  • Kiosk, vending and ticketing terminals — indoor, at 350 cd/m².
  • Marine instrument consoles and vehicle dashboards — shaded cabins and consoles.
  • Smart home control panels and access control — 480 × 272 landscape, wall-mounted at a known height.
  • Microcontroller projects with 512 KB of SRAM — 255 KB fits with no external memory.
  • Replacement displays in existing 3.5-inch 480 × 272 equipment — if your product was designed around this resolution with touch, this drops in on the same shape.

General specification

ITEM Standard value UNIT

Model

VXT350PNO-01P

LCD Type transmissive,Normal white ———
Driver element a-Si TFT Active matrix
Number of Dots 480*(RGB)*272 Dots
Pixel Arrangement RGB Vertical Stripe
Active Area 77.76 *43.52
mm
Viewing Direction 60'CLOCK
Driver IC 0TA5180A
Module Size(W*H*T) 86.80x56.50x3.95 mm
Approx.Weight TBD g
Back Light White LED

Brightness

350 cd/m² typical.
System interface 24 BITS RGB interface

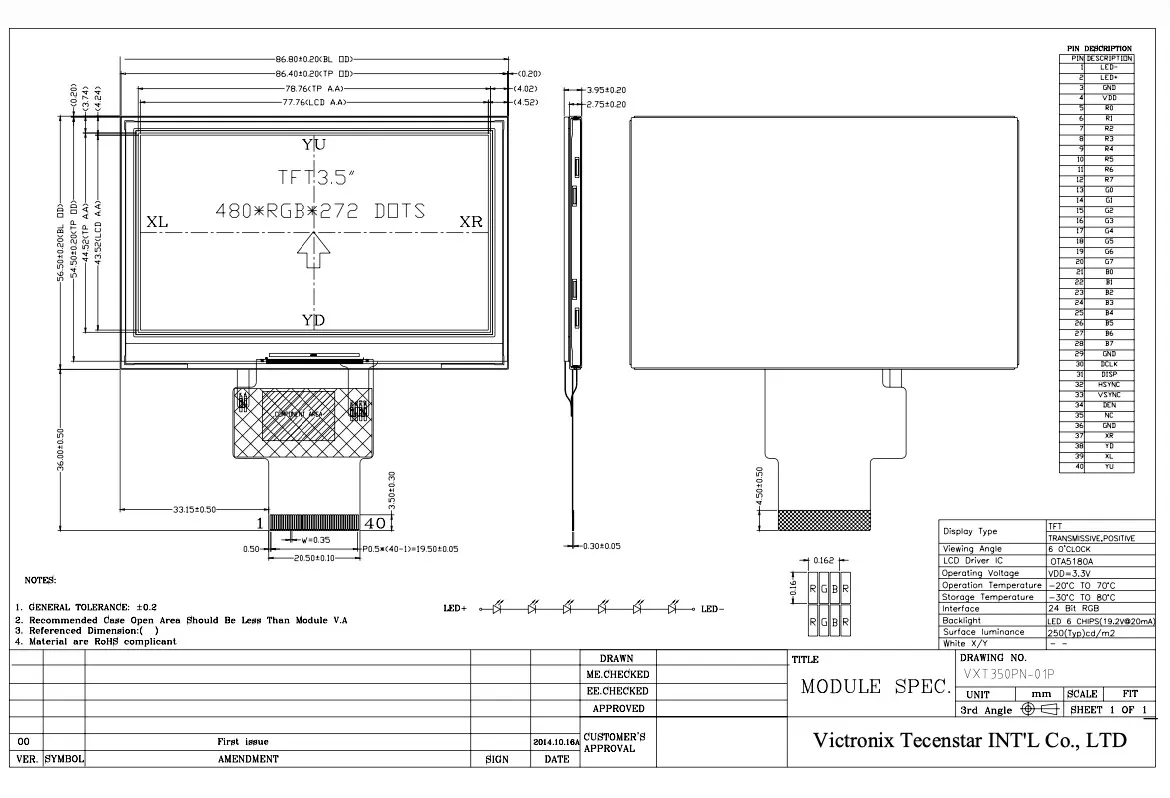

Mechanical drawing
