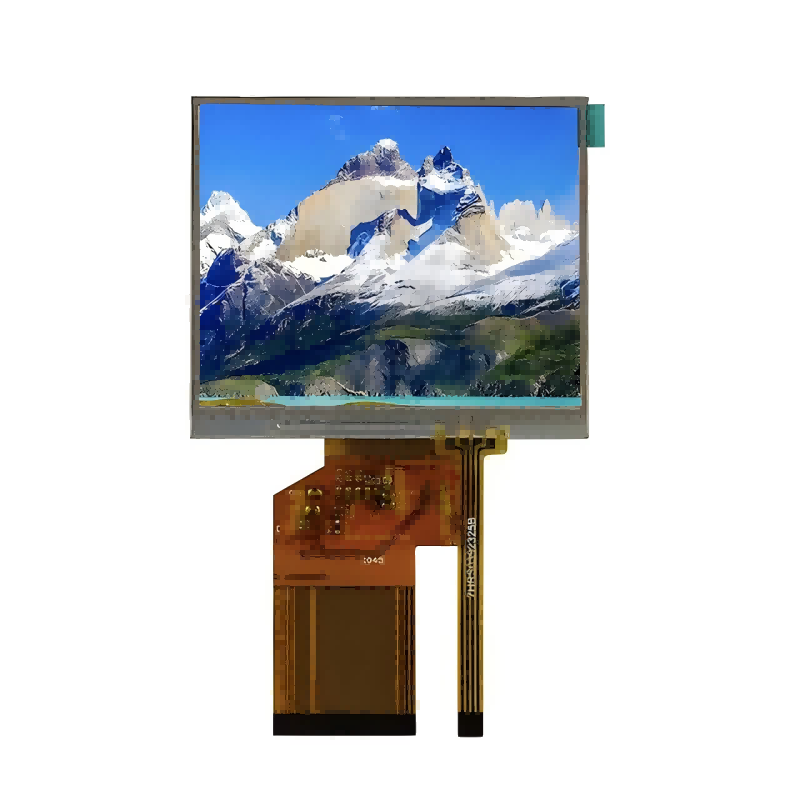

3.5" 320x240 Wide Temperature high brightness TFT Module - VXT350CQH-45-W
This Victronix 3.5 inch 320x240 Wide Temperature IPS TFT Module is a high-performance 3.5 inch TFT LCD module engineered for demanding applications. Featuring a sharp 320×RGB×240 resolution and a bright 1000 cd/m² transflective display with anti-glare coating, it delivers excellent visibility even in challenging lighting conditions. As a professional TFT module manufacturer and supplier in China, this Victronix 3.5 inch TFT Module is strictly compliant with the ROHS environmental standards to provide superior application performance.
Model:VXT350CQH-45-W (wide temperature)
Send Inquiry
Product Description
Where It Gets Used
- Video displays and viewfinders — camera and inspection equipment, fed straight from a decoder.
- Door entry and intercom monitors — video source to screen with no conversion stage.
- Rear-view and auxiliary camera displays — vehicles, fork trucks, agricultural machinery.
- Industrial inspection scopes — borescopes, endoscopes and portable vision tools.
- Industrial control panels — where the operator stands above the panel.
- Instrumentation and test equipment — read at arm's length on a bench.Embedded projects needing serial RGB — eight data lines instead of twenty-four.
Specification
| Item | Contents | Unit |
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE (W*H*T) | 76.90*63.90*3.2 | MM |
| ACTIVE SIZE(W*H) | 70.08*52.56 | MM |
| PIXEL PITCH(W*H) | 0.219*0.219 | MM |
| NUMBER OF DOTS | 320*240 | |
| DIVER IC | HX8238D | |
| INTERFACE TYPE | 24BIT RGB+SPI | |
| TOP POLARIZER TYPE | Anti-Glare | |
| RECOMMEND VIEWING DIRECTION | 12 | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 | O'CLOCK |
| BACKLIGHT TYPE | 6-DIES WHITE LED | |
| BRIGHTNESS | 1000 | NITS |
| TOUCH PANEL TYPE | WITHOUT | |
| OPERATING TEMPERATURE |
-20°C to +85°C |
|
| SSTORAGE TEMPERATURE |
-30°C to +85°C |
|

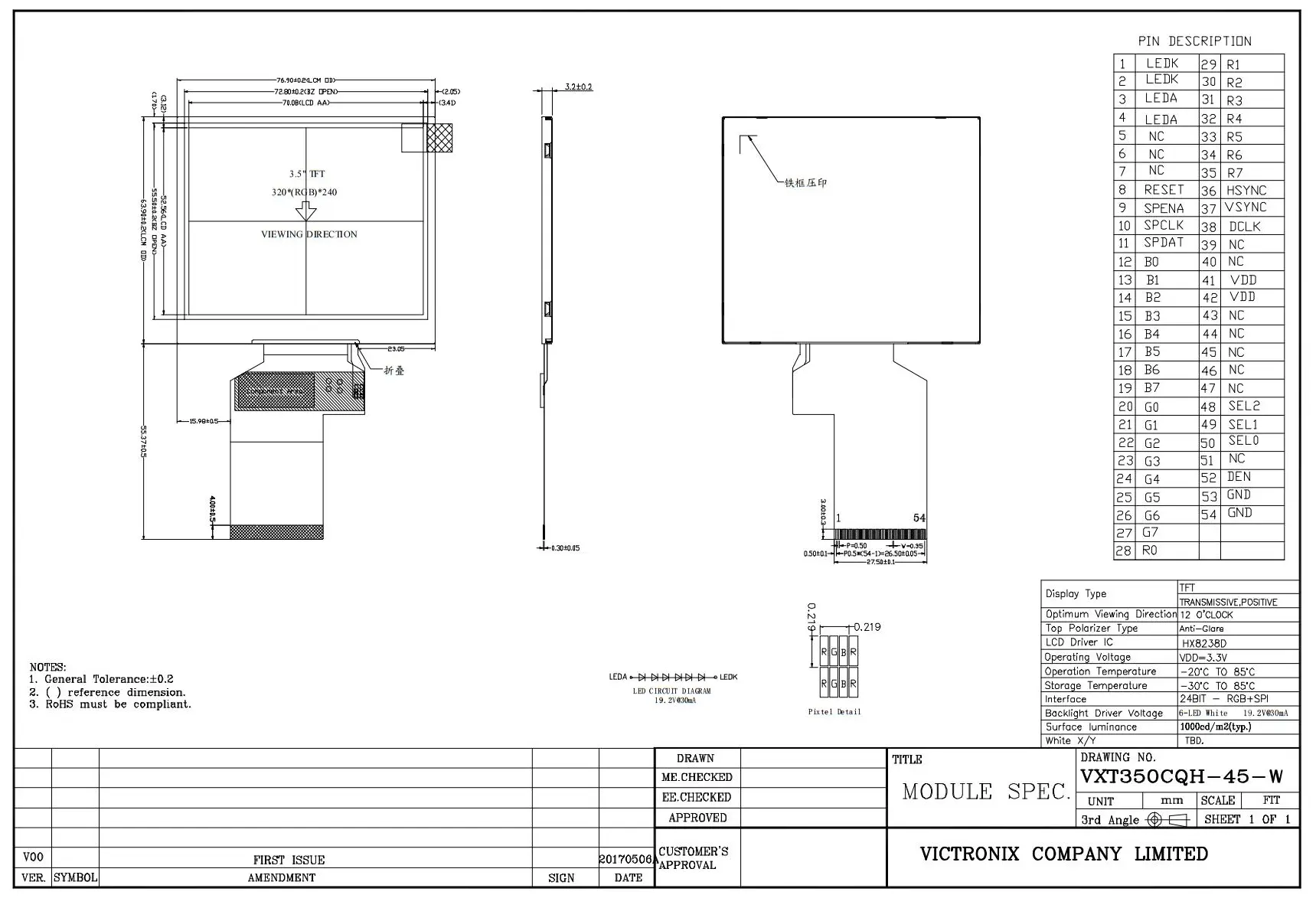

Drawing
