3.5 Inch 320x240 TFT LCD Module with Resistive Touch 18-Bit RGB - VXT350LQZ-01P
  • 3.5 Inch 320x240 TFT LCD Module with Resistive Touch 18-Bit RGB - VXT350LQZ-01P3.5 Inch 320x240 TFT LCD Module with Resistive Touch 18-Bit RGB - VXT350LQZ-01P
  • 3.5 Inch 320x240 TFT LCD Module with Resistive Touch 18-Bit RGB - VXT350LQZ-01P3.5 Inch 320x240 TFT LCD Module with Resistive Touch 18-Bit RGB - VXT350LQZ-01P

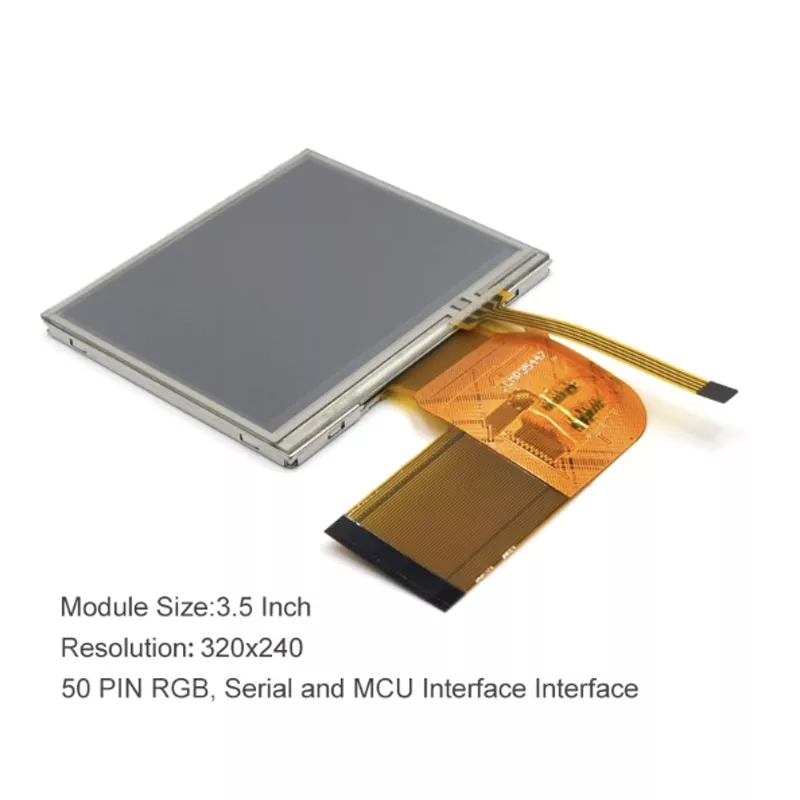

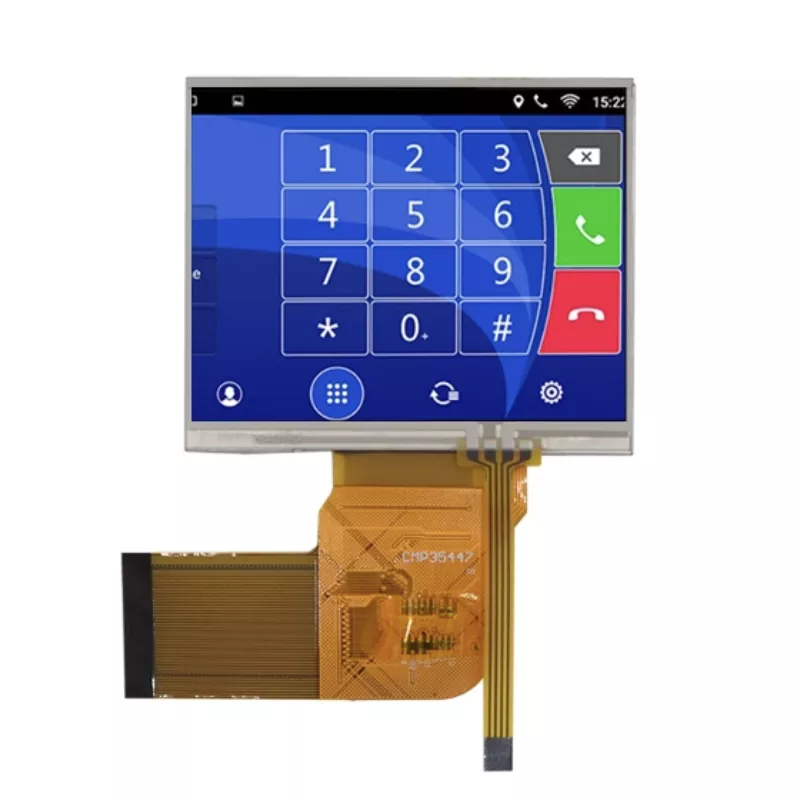

3.5 Inch 320x240 TFT LCD Module with Resistive Touch 18-Bit RGB - VXT350LQZ-01P

The VXT350LQZ-01P is a 3.5-inch 320 x 240 QVGA TFT LCD module with a 4-wire resistive touch panel, and the touch specification is the reason to look at it. Section 6 publishes what almost nothing in this size does: linearity of +/-1.5% after environmental and life testing, terminal resistance per axis, insulation resistance of 20 megohms minimum, response time under 10 ms, light transparency of 78% minimum, operation force of 80 gf typical, surface hardness of 3H minimum, 100,000 pen sliding cycles and 1,000,000 hitting cycles - with the test conditions for each. Two other figures are unusually trustworthy. Brightness carries both a floor and a ceiling, 280 minimum and 420 maximum around the 350 typical, so you can see the production spread as well as the worst case.The viewing angles are the narrowest in our range at 25 degrees typical on one horizontal side and 45 everywhere else, and while the specification states a 6 o'clock viewing direction, it is the horizontal pair that is asymmetric rather than the vertical one - so confirm the orientation with us and expect a narrow cone.

Model:VXT350LQZ-01P

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Handheld and portable field instruments — resistive touch works with gloves and in the rain, and the panel is specified for 1,000,000 hits.
  • Industrial HMI and machine control panels — operators in gloves, on factory floors, with dirty hands.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true, and a stylus works.
  • Public-facing terminals and kiosks — 3H surface hardness and a million hitting cycles.
  • Point-of-sale and payment terminals — signature capture with a pen, and a lower unit cost than capacitive.
  • Medical devices and portable monitors — gloved operation, and a surface that can be wiped down.
  • Medical devices and portable monitors — gloved operation, and a surface that can be wiped down.
  • Smart home control panels and access control — 4:3, wall-mounted at a known height, so the viewing direction is under your control.
  • Marine instrument consoles and vehicle dashboards — shaded cabins and consoles.
  • Microcontroller projects and retrofits — 150 KB fits internal SRAM, and the interface can be strapped to 8-bit, 16-bit, 18-bit or SPI.
  • Products with an 8-bit or 16-bit MCU bus already on the board — PS0 to PS3 let you match the panel to the host rather than the other way round.

ITEM Standard value UNIT

Model

VXT350LQZ-01P

LCD Type TFT TransmisSive ---
Driver element a-Si TFT Active matrix
Number ofDots 320*(RGB)*240 Dots
Pixel Arrangement RGB Vertical Stripe
Active Area 70.08*52.56 mm
Viewing Direction 6 O'clock
Driver IC SSD2119
Module Size(W*H*T) 76.9x63.9x4.3 mm
Approx.Weight TBD g
Back Light White LED
System interface 1.8/9/16/18-bit 6800-series/
8080-series Parallel Interface
2.Serial Peripheral Interface (SPI)
3.18-/6-bit RGB interface (DE,
DOTCLK,HSYNC,VSYNC,DB[17:0])
4.WSYNC interface (system interface+WSYNC)

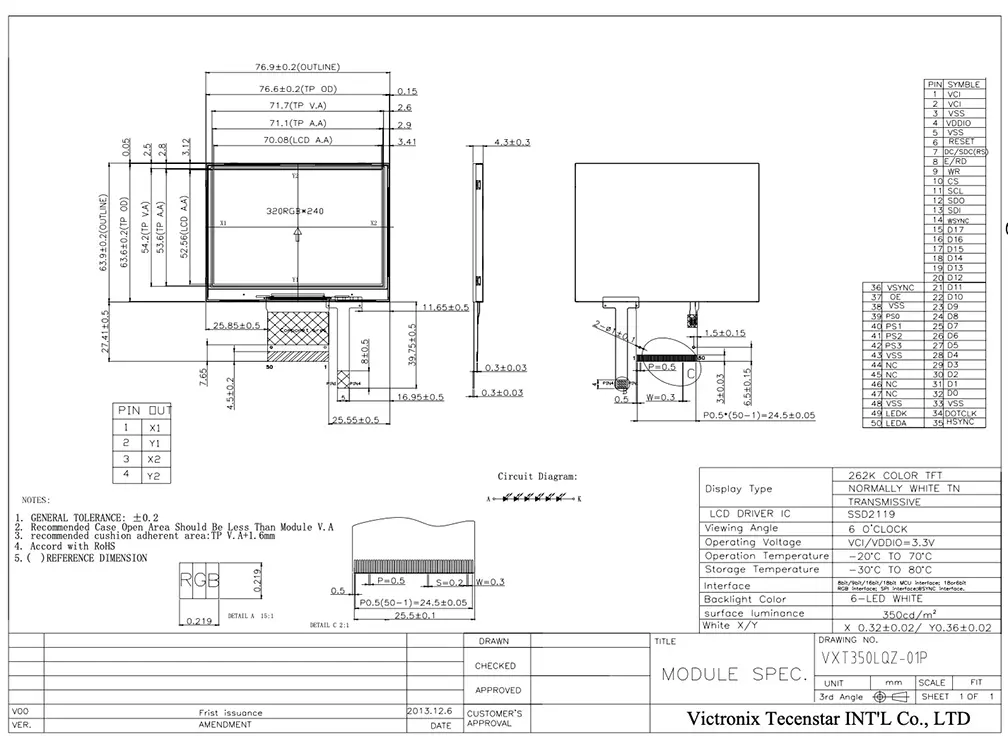

Mechanical Drawing
