3.97 Inch 480x800 Portrait TFT LCD Module with Resistive Touch RGB-18Bit + SPI - VXT397IWI-01P
  • 3.97 Inch 480x800 Portrait TFT LCD Module with Resistive Touch RGB-18Bit + SPI - VXT397IWI-01P3.97 Inch 480x800 Portrait TFT LCD Module with Resistive Touch RGB-18Bit + SPI - VXT397IWI-01P
  • 3.97 Inch 480x800 Portrait TFT LCD Module with Resistive Touch RGB-18Bit + SPI - VXT397IWI-01P3.97 Inch 480x800 Portrait TFT LCD Module with Resistive Touch RGB-18Bit + SPI - VXT397IWI-01P

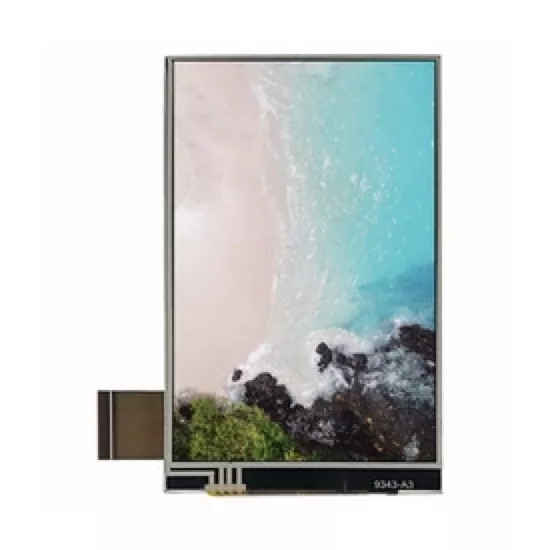

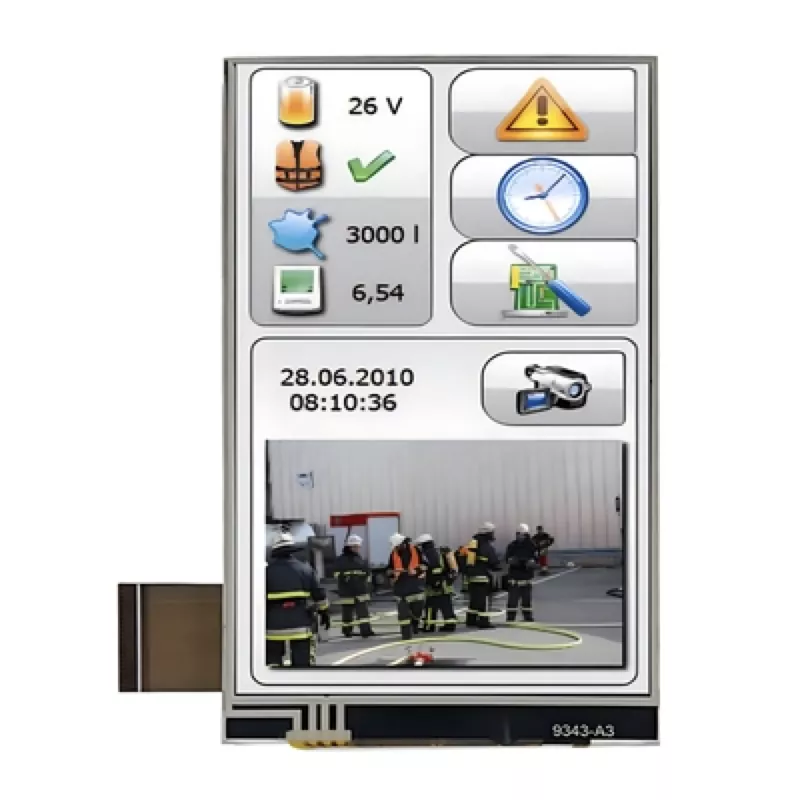

3.97 Inch 480x800 Portrait TFT LCD Module with Resistive Touch RGB-18Bit + SPI - VXT397IWI-01P

The VXT397IWI-01P is a 3.97-inch 480 x 800 portrait TFT LCD module with a 4-wire resistive touch panel, and the touch is what distinguishes it from the other 480 x 800 panel in this size.Resistive sensing responds to pressure rather than to a finger's conductivity, so it works with gloves, wet hands, a stylus or a tool tip, which is why it is still the choice for industrial and medical equipment. The optical table is also unusually well specified: luminance carries a stated minimum of 240 and a stated maximum of 420 alongside the 300 typical, and contrast carries a 300 minimum, so there are figures you can hold us to at incoming inspection - which is not the case on several modules in this size. Two things need settling before you commit. This is a TN panel: the specification states a 6 o'clock viewing direction, grey-scale inversion at 12 o'clock, and vertical viewing angles of 50 degrees one way and 25 the other, so mounting orientation has a right answer - if your product is handheld and the orientation is not under your control, the IPS panel also in this size is the better buy.

Model:VXT397BWI-02P

Send Inquiry    PDF DownLoad

Product Description

Where that decides it


  • Industrial equipment — operators in gloves, on factory floors, with dirty hands.
  • Medical devices — gloves again, and a surface that can be wiped down without registering false touches.
  • Field instruments and test equipment — used outdoors, in the rain, with a stylus.
  • Point-of-sale and kiosk — a pen or a fingernail, and a lower unit cost.
  • Cost-sensitive products — no controller IC, simpler stack.


If your product is a consumer device operated with a bare finger and you want gestures, a capacitive panel is the right answer, and we sell those too — including a capacitive version in this size. We would rather point you at it than sell you a resistive panel that frustrates your users.

Where It Gets Used


  • Handheld and portable field instruments — resistive touch works with gloves and in the rain, and 235 PPI keeps readings legible.
  • Medical devices and portable monitors — gloved operation, and a surface that can be wiped down.
  • Industrial HMI and machine control panels — operators in gloves, on factory floors, with dirty hands.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true, and a stylus works.
  • Point-of-sale and payment terminals — signature capture with a pen, and a lower unit cost than capacitive.
  • Kiosk, vending and ticketing terminals — indoor, at 300 cd/m².
  • Smart home control panels and access control — portrait, wall-mounted at a known height, so the viewing direction is under your control.
  • Portable monitors and embedded Linux projects — 750 KB on external RAM, and an 18-bit RGB interface a host with a parallel output can drive directly.
  • Products where the enclosure is already designed — 57.14 × 96.85 × 3.20 mm is stated, so you can check the cut-out from this document.


General Specification

Item Contents Unit

Model

VXT397IWI-01P

LCD TYPE TFT/TRANSMISSIVE
MODULE    SIZE(W*H*T) 57.14*96.85*3.2 MM
ACTIVE SIZE(W*H) 51.84*86.40 MM
PIXEL PITCH (W*H) 0.108*0.108 MM
NUMBER OF DOTS 480*800
DIVER IC ILI9806E
INTERFACETYPE 18 BIT-RGB+SPI
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND   VIEWING   DIRECTION ALL O'CLOCK
GRAY SCALE INVERSION DIRECTION O'CLOCK
COLORS 262K
BACKLIGHT   TYPE 8-LED WHITE
BRIGHTNESS 300 typ / 420 max cd/m²

TOUCHPANEL    TYPE RESISTIVE

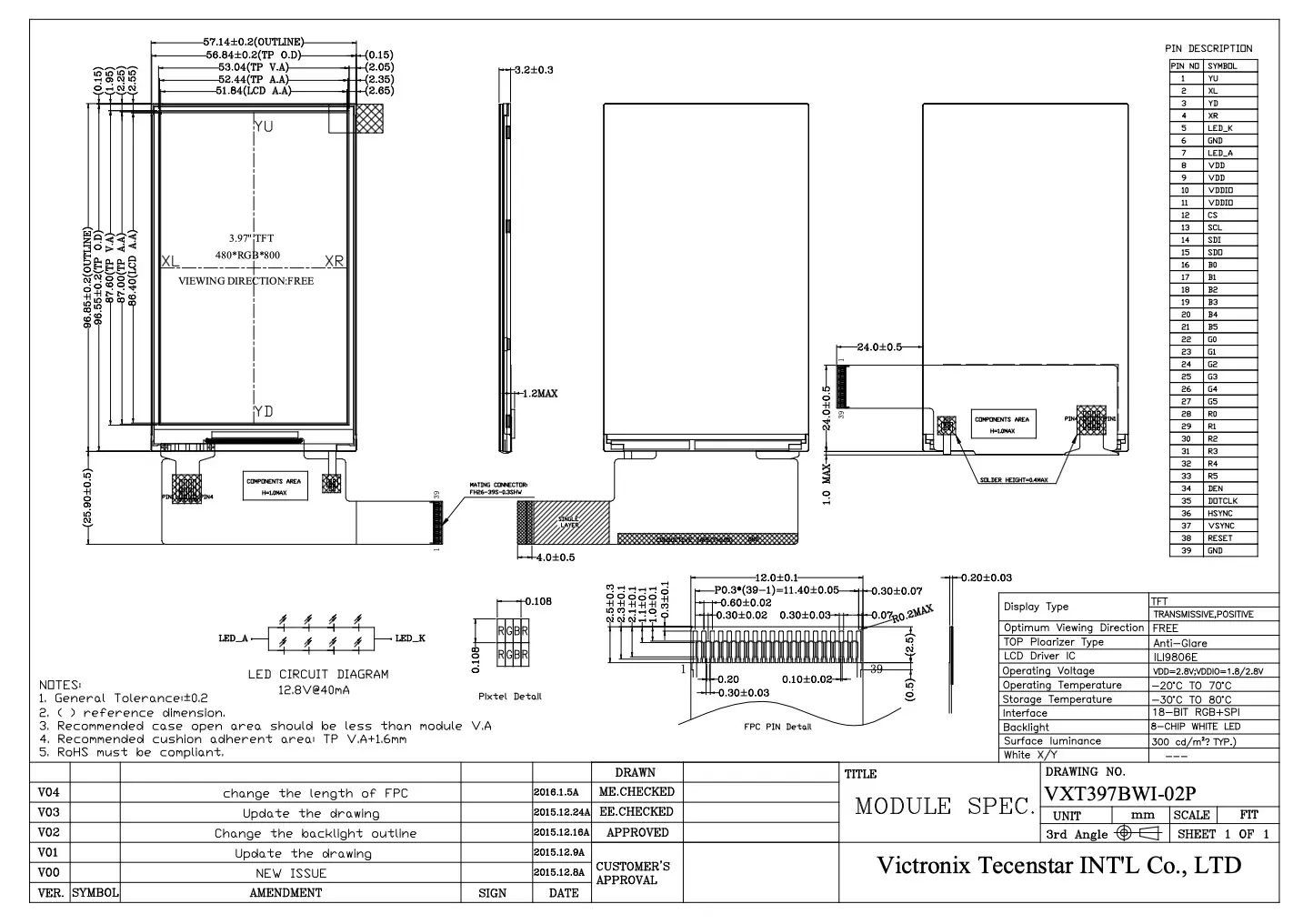

Mechanical Drawing
