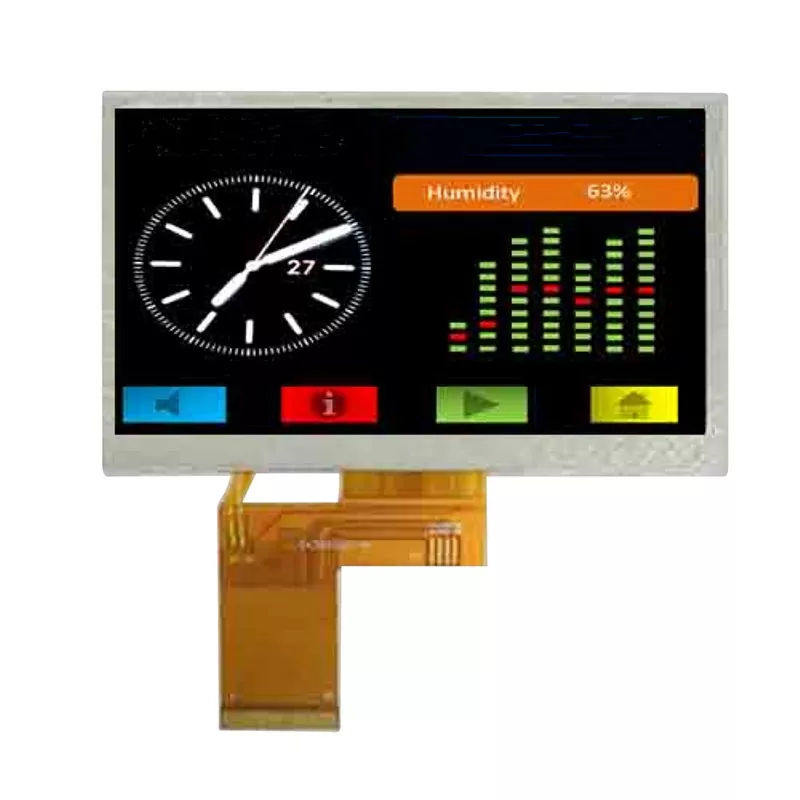

4.3 Inch 480x272 TFT LCD Module 1000 cd/m2 High Brightness Wide Temperature RGB888 Interface - VXT430BPSA-04
  • 4.3 Inch 480x272 TFT LCD Module 1000 cd/m2 High Brightness Wide Temperature RGB888 Interface - VXT430BPSA-044.3 Inch 480x272 TFT LCD Module 1000 cd/m2 High Brightness Wide Temperature RGB888 Interface - VXT430BPSA-04

4.3 Inch 480x272 TFT LCD Module 1000 cd/m2 High Brightness Wide Temperature RGB888 Interface - VXT430BPSA-04

Victronix 4.3 inch 480×272 Wide Temperature TFT Module offers 1000 cd/m² brightness, 1000:1 contrast ratio, an 80-degree viewing angle in all directions, and 80% uniformity ensure vivid imagery. Secondly, it supports a 40-pin RGB888 parallel input interface and a 16-LED white backlight with a lifetime of 50,000 hours, ensuring its long-term usability in various industrial applications. Besides, it complies with RoHS standards and successfully passes rigorous reliability tests, including thermal shock, humidity, and ESD protection up to 8kV air and 4kV contact. This product operates efficiently in extreme temperatures ranging from -30°C to +85°C and can withstand severe storage conditions from -40°C to +90°C. This 4.3 inch TFT module from Victronix is designed for Industrial HMIs & Control Systems, Automotive Dashboards/Diagnostic Tools, Medical Devices & Test Equipment, and Outdoor Kiosks & Portable Instruments.

Model:VXT430BPSA-04

Send Inquiry    PDF DownLoad

Product Description

What that opens up


  • Charging stations and EV supply equipment — outdoor, unshaded, and expected to work in winter
  • Agricultural and construction machine panels — sunlight, dust, heat soak and cold starts
  • Marine and vehicle instruments — direct sun through glass, and sub-zero mornings
  • Cold-chain and refrigerated equipment — continuous duty below freezing
  • Unheated enclosures and roadside cabinets — full seasonal swing with no climate control
  • Outdoor kiosks, ticketing and vending — legible under direct lighting

General Information

Item Value
Model VXT430BPSA-04, VER.00
Composition Panel, driver IC, FPC, back light unit — no touch panel
Controller ST7283-G4
Colour 16.7M — genuine, 24 lines
Viewing direction ALL
★ Brightness 1000 cd/m² typical
★ Operating temperature −30 to +80 °C — 110 ° of span
★ Storage temperature −30 to +80 °C — identical to operating
Humidity Note 3: ≤40 °C, 85% RH max; ≥40 °C, below the absolute humidity of 85% RH at 40 °C
Active area 95.04 × 53.86 mm — 51.19 cm²
Pixel pitch 0.198 × 0.198 mm — square, axes differ by 0.0074%
Active aspect 1.764576 vs dot matrix 1.764706 — 0.0074% mismatch
Resolution 480 × 272
Thickness Not available
Interface RGB888 — 24-bit parallel
Supply VDD 3.0 / 3.3 / 3.6 V
Contrast 800 min / 1000 typ
Uniformity 75% min / 80% typ
Response Tr + Tf 40 ms maximum only
Viewing angle 80° typical at all four directions — no floors
CIE All eight — W 0.31/0.34, R 0.61/0.32, G 0.32/0.55, B 0.15/0.14, ±0.05
NTSC 50% — block diagram only, not in the optical table
Backlight 16 LEDs — 8S2P, 3.0 V per LED, 20 mA per string
Backlight voltage 24 V typical — no min, no max
Backlight current 40 mA — test condition only
Backlight power 0.96 W (derived)

Outline Drawing

4.3 inch 480x272 Wide Temperature TFT Module
