4.3 Inch 480x272 TFT LCD Module RGB888 Interface with CTP - VXT430HPWA-03C
  • 4.3 Inch 480x272 TFT LCD Module RGB888 Interface with CTP - VXT430HPWA-03C4.3 Inch 480x272 TFT LCD Module RGB888 Interface with CTP - VXT430HPWA-03C

4.3 Inch 480x272 TFT LCD Module RGB888 Interface with CTP - VXT430HPWA-03C

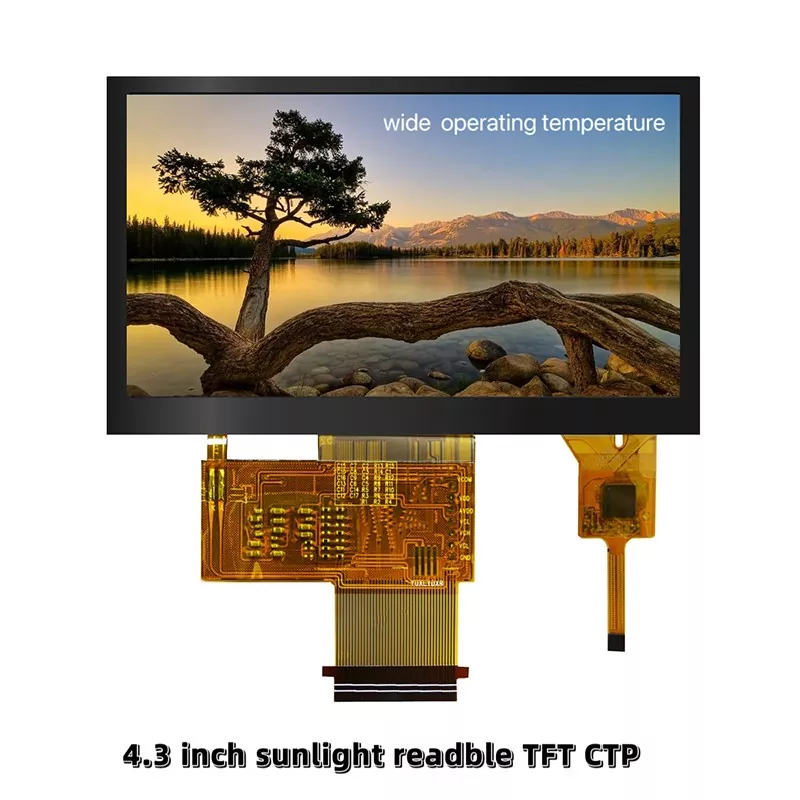

This Victronix 4.3 inch 480x272 with Touch Screen TFT Module is a high-performance 4.3 inch TFT LCD module engineered for demanding industrial applications. This robust display solution integrates a vibrant color panel, capacitive touch interface (CTP), and LED backlight into a compact, reliable package. As a professional manufacturer and supplier of TFT modules in China, Victronix 4.3 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT430HPWA-03C

Send Inquiry    PDF DownLoad

Product Description


Widest Temperature Range in This Range — and It Is Identical for Operation and Storage

This is the only module in this range rated to +85 °C for operation, and the only one rated to −30 °C for operation as well. Everything else here stops at +70 °C operating.

That is a real capability and it should lead your specification. A 115-degree span at the top end opens the applications that ordinary panels cannot serve: outdoor equipment in direct sun, vehicle and marine dashboards, construction and agricultural machinery, EV charging piles, and unheated industrial enclosures.

General Information

Model VXT430HPWA-03C
Composition Panel, driver IC, FPC, back light unit, CTP
Colour 16.7M
Viewing direction ALL
Operating temperature −30 to +85 °C — widest in this range
Storage temperature −30 to +85 °C
Humidity ≤40 °C: 85% RH max; ≥40 °C: below the absolute humidity of 85% RH at 40 °C
Module size 105.5 × 67.2 × 5.0 mm — Note 2: with CTP, without FPC and solder
Thickness on drawing 5.00 ± 0.5 mm
Active area 95.04 × 53.86 mm — 51.19 cm²
Pixel pitch 0.198 × 0.198 mm — square to within 0.008%
Resolution 480 × 272
Controller SC7283
CTP driver FT5446 — on a separate 6-pin FPC
Interface RGB888 — 24-bit parallel
Grounds 3 — pins 3, 29, 36
Supply VDD 3.0 / 3.3 / 3.6 V; VDD-CTP — / 3.3 / 3.6 V
Current Not stated anywhere
Brightness 850 cd/m² typical
Uniformity 75% min / 80% typ
Contrast 640 min / 800 typ — third-highest floor in this range
Response Tr + Tf 30 typ / 40 max ms — one row
Viewing angle 80° typical at all four directions — no minima
NTSC 45 min / 50 typ %
Backlight 12 LEDs — 6S2P, 3.0 V per LED, 20 mA per string
Backlight voltage 16.2 / 18.0 / 19.8 V
Backlight current 40 mA — test condition only
Backlight power 0.72 W (derived); 0.792 W at max Vf
Backlight life 20,000 h minimum
Vibration 10–150 Hz, 100 m/s², 120 min
Shock Half-sine, 300 m/s², 11 ms

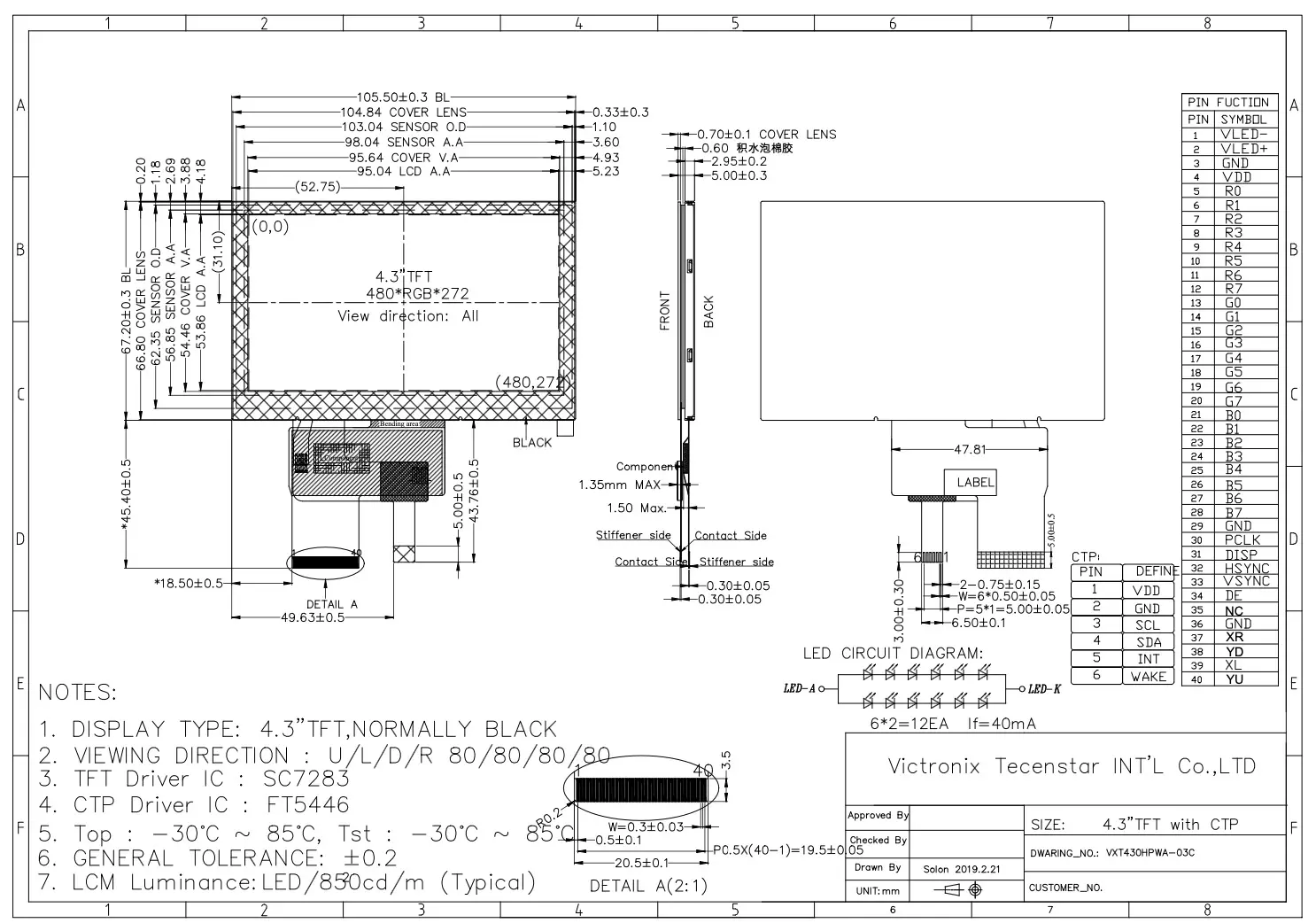

Outline Drawing

4.3 inch 480x272 with Touch Screen TFT Module
