The VXT430HWE-03-W is a 4.3-inch TFT module with 800 x 480 resolution — nearly three times the pixel count of the 480 x 272 panels that dominate this size — and an operating range of -30 to +85°C, the widest of any 4.3-inch module we offer. Storage goes to -40°C, the only module in the range rated that low. It is transmissive with an anti-glare polarizer and no touch panel. What stands out is how much is published: brightness of 640 minimum and 800 typical, contrast of 640 minimum and 800 typical, and logic current given for three screen contents — 73 mA on black, 102 mA on a single colour, 105 mA on white — rather than one vague number, which lets you size for the worst case and shows a dark interface genuinely saves power. The backlight is 16 LEDs at 1.024 W, and reliability covers ten tests including vibration at 10-55 Hz and mechanical shock at 60 G, with MTBF of 50,000 hours.

Model:VXT430HWE-03-W

Send Inquiry

Product Description

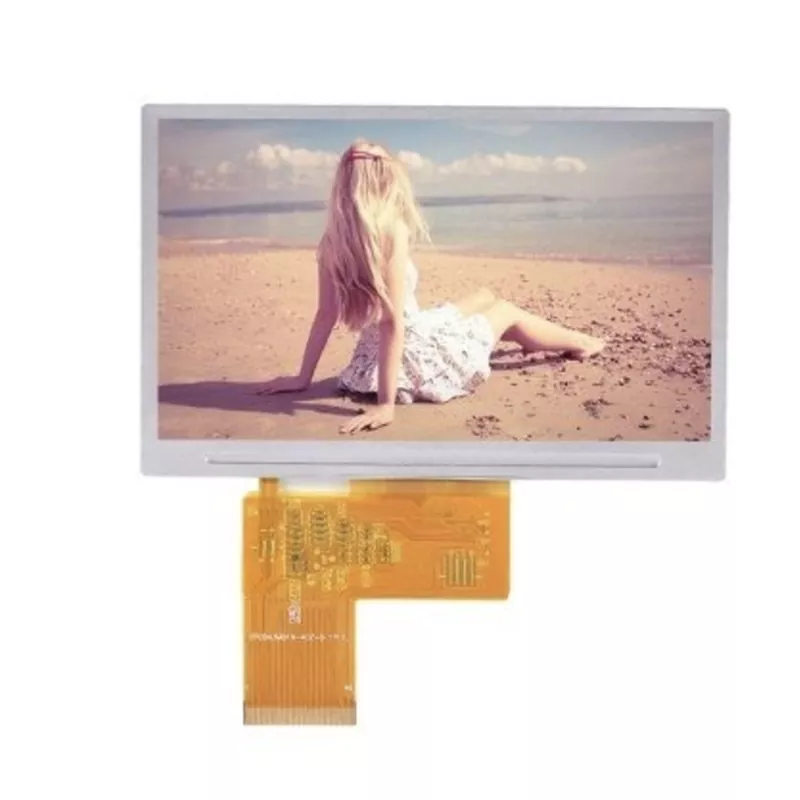

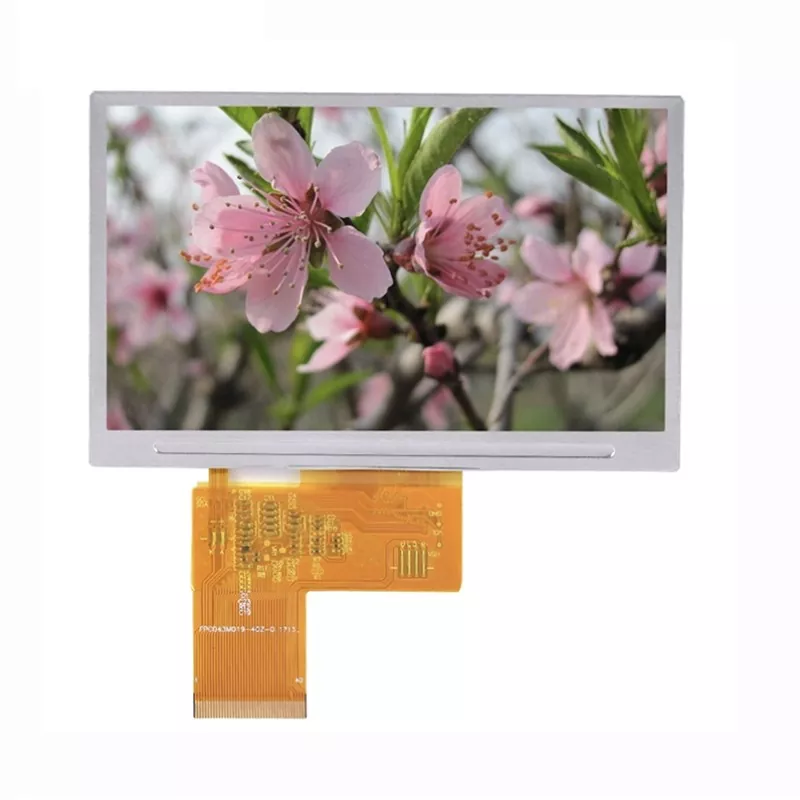

4.3" 800x480 TFT LCD Module, -30 to +85°C, Anti-Glare

The useful part is not the numbers themselves but the hardware they let you remove.


  • +85°C operating means a sealed enclosure in a hot climate, or a panel mounted near a heat source, may need no fan, vent or heat sink. Removing a fan removes a part that will fail in five years, along with its filter and its noise.
  • -30°C operating means cold-climate and unheated-outdoor installations may need no heater. A display heater is a real cost — a part, its control loop, and power.
  • -40°C storage covers transport and warehousing in cold regions without special handling. This is the only module in our 4.3-inch range rated that low.

Two honest caveats


  • Response time slows at low temperature. This is normal for liquid crystal and the specification notes it. Motion and fast-updating graphics will look more smeared when cold. Static text and readings are unaffected.
  • Colour shifts slightly with temperature. Usually reversible and not a defect, but if your product is colour-critical across its range, evaluate a sample at the extremes.



General Specifications



Item Value
Model VXT430HWE-03-W
LCD type TFT, transmissive
Module size 105.50 × 67.20 × 2.90 mm
Active area 95.04 × 53.86 mm
Diagonal 109.24 mm — 4.301 inch
Resolution 800 × 480 — 2.94× the pixels of 480 × 272
Pixel pitch 0.1188 × 0.1122 mm — about 5.9% wider than tall
Density 214 × 226 PPI
Frame buffer 750 KB at RGB565; 1.125 MB at 24-bit
Driver ICs EK9716BB3 + EK73002 — source and gate driver pair
Interface 24-bit parallel RGB, 40-pin, with HSYNC, VSYNC, DE, DCLK, DISP
Luminance 640 min / 800 typ / 960 max cd/m²
Contrast ratio 640 min / 800 typ
Response time 30 ms typ / 40 ms max at 25°C
Uniformity 80% min
Viewing angle 70° min / 80° typ, all four directions, CR ≥ 10
Viewing direction ALL — mounting orientation not constrained
Gray scale inversion Referenced in the viewing angle remark; direction field left blank
Top polarizer Anti-glare
CIE 1931 Published for W, R, G, B with min/typ/max
Backlight 16 white LEDs, 8S2P — derived and confirmed
Backlight voltage 22.4 / 25.6 / 28 V at 40 mA — 3.2 V per LED
Backlight current 40 mA total — 20 mA per string
Backlight power 1.024 W
Backlight life 30,000 h min / 50,000 h typ to 50% at 25°C
Logic current 73 mA black / 102 mA single colour / 105 mA white (typ); 115 mA max
Total power, worst case about 1.37 W — backlight is about 75%
Supply voltage 3.0 / 3.3 / 3.6 V
Absolute max supply -0.3 to 4.5 V
Input thresholds VIL ≤ 0.3 VDD; VIH ≥ 0.7 VDD
Internal rails VGH 15 V, VGL -10 V, Vcom 3.1 to 5.1 V — generated on module
Backlight pins 1 = VLED_K (cathode), 2 = VLED_A (anode) — cathode first
Ground pins 3, 29, 36 — connect all three
Unused pins 35 and 37 to 40 are NC
Touch panel Without
Operating temperature -30 to +85°C — widest of any 4.3-inch module
Storage temperature -40 to +85°C — only -40°C storage in the range
ESD Air ±8 kV, contact ±4 kV
Vibration 10 to 55 Hz, 1.5 mm, 2 h per axis
Mechanical shock 60 G, 6 ms, half sine, ±X ±Y ±Z
Reliability 10 tests, 240 h dwell, all citing IEC and GB
MTBF 50,000 hours at 25 ± 5°C
Inspection MIL-STD-105E Level II — Major 0.65, Minor 1.5
Specification VER.02, V01 2018-08-03, V02 2018-09-19 "Update drawing"

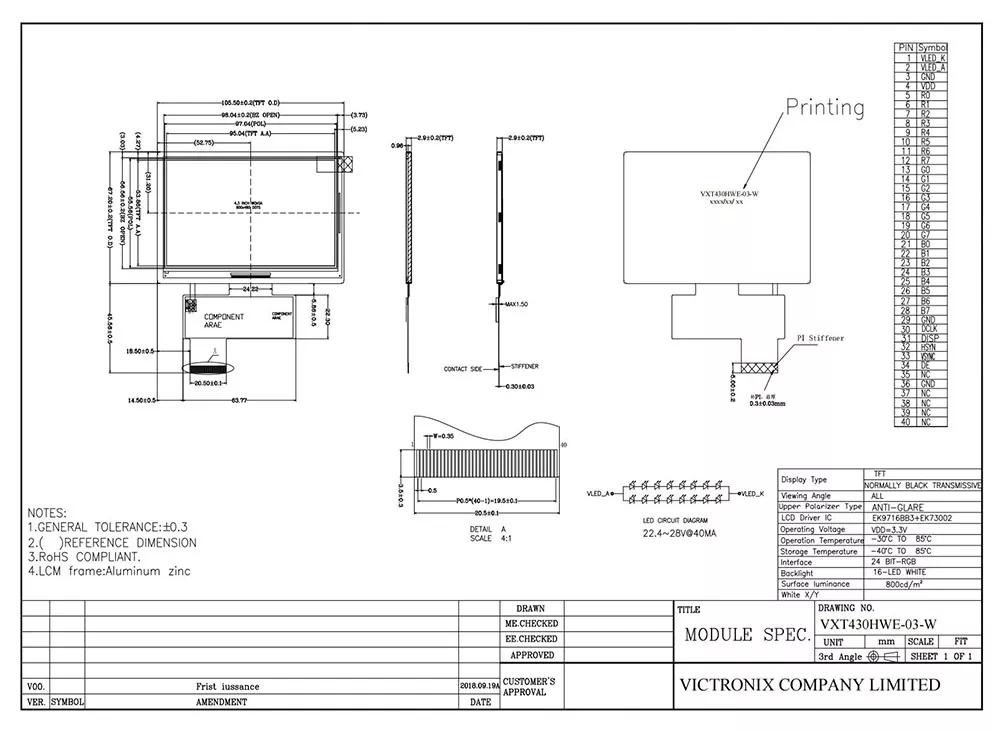

Outline Drawing
