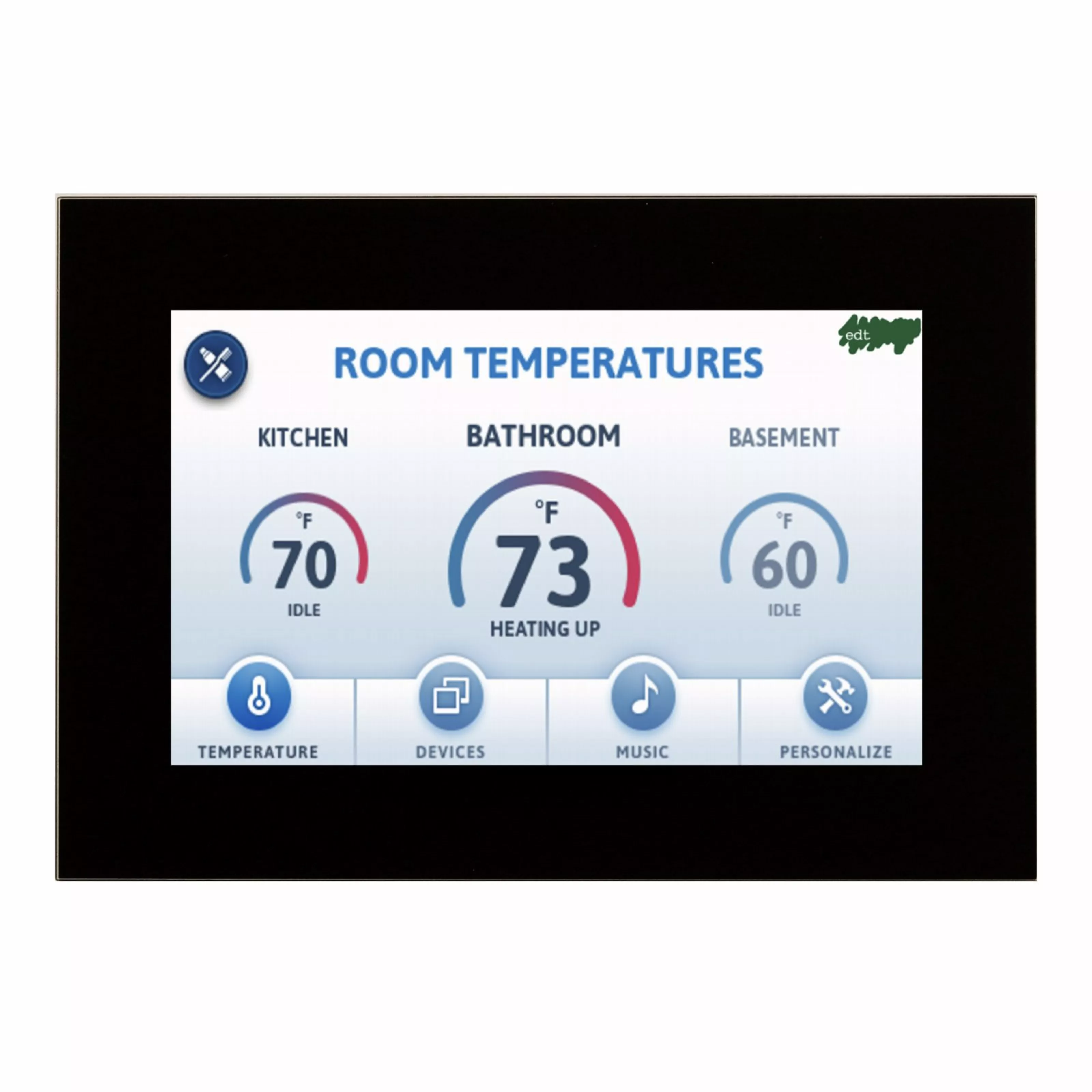

5 inch Outdoor Capacitive Touch TFT Module - VXT500BWS-03C0
  • 5 inch Outdoor Capacitive Touch TFT Module - VXT500BWS-03C05 inch Outdoor Capacitive Touch TFT Module - VXT500BWS-03C0
  • 5 inch Outdoor Capacitive Touch TFT Module - VXT500BWS-03C05 inch Outdoor Capacitive Touch TFT Module - VXT500BWS-03C0

5 inch Outdoor Capacitive Touch TFT Module - VXT500BWS-03C0

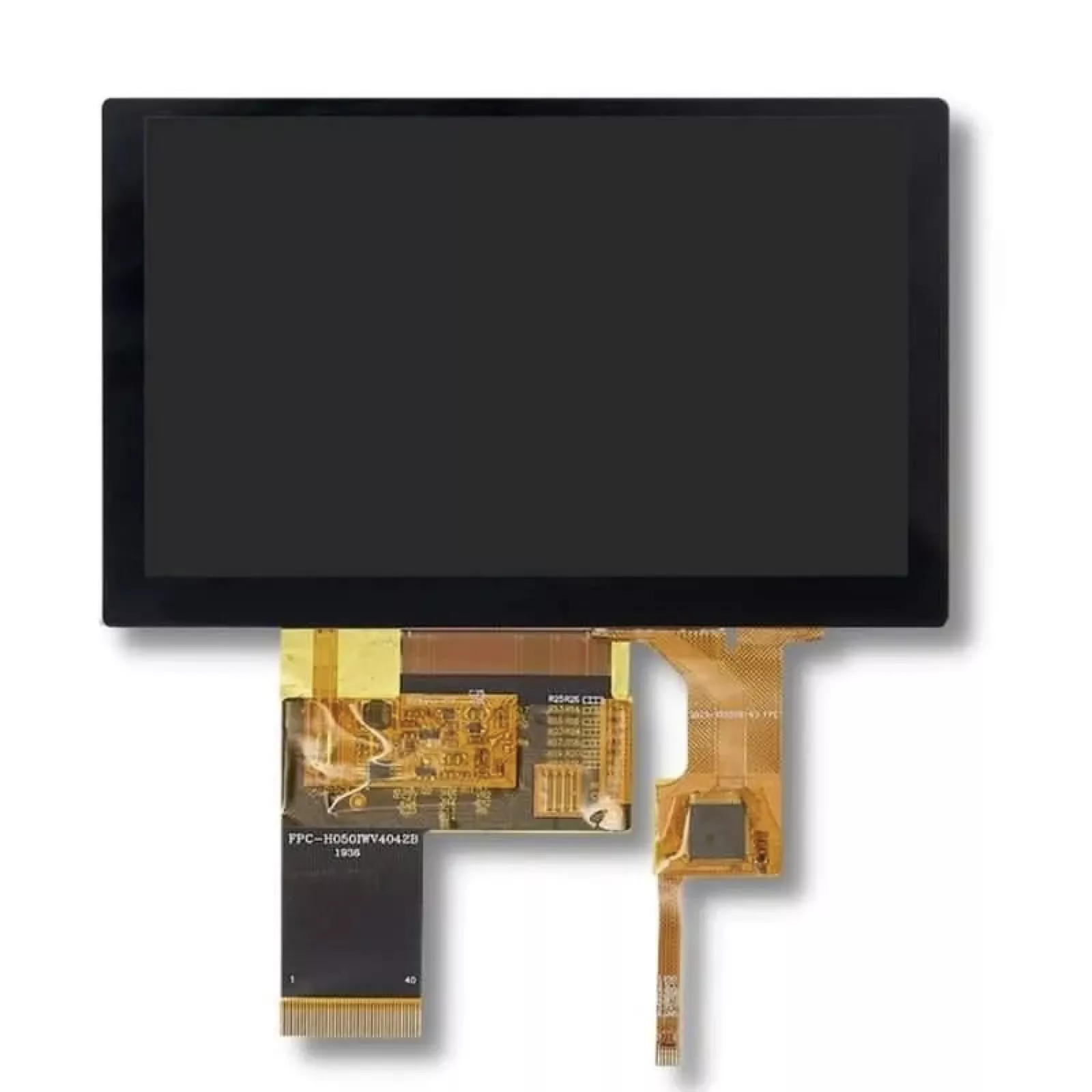

The VXT500BWS-03C0 is a 5.0-inch TFT LCD module with 800 x 480 pixels and a projected capacitive touch panel. Three things decide whether it suits your product. Brightness is 800 cd/m² minimum against 1000 typical — a stated floor you can hold us to, and roughly three times what our touchless 5-inch panel delivers. Viewing angle is 80° minimum in all four directions with no preferred orientation and no grey-scale inversion, so how you mount it is a mechanical decision rather than an optical one. And it shares an active area, resolution, pixel pitch and outline with our touchless 5-inch module, so an existing 5-inch 800x480 design takes it without recutting the enclosure. The display runs 24-bit RGB on a 40-pin FPC from a single 3.3 V rail, with touch on its own 10-pin I2C connector carrying reset and interrupt.

Model:VXT500BWS-03C0

Send Inquiry    PDF DownLoad

Product Description

General Specification

Item Contents Unit

Model

VXT500BWS-03C0

LCD TYPE TFT/TRANSMISSIVE
MODULE SIZE(W*H*T) 120.7*75.80*4.67 MM
ACTIVE SIZE (W*H) 108.00*64.80 MM
PIXEL PITCH(W*H) 0.135*0.135 MM
NUMBER OF DOTS 800*480
LCD DRIVER IC ST7262
CTP DIVER IC FT5446DQS
INTERFACE TYPE 24-BIT RGB
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND  VIEWING  DIRECTION ALL O'CLOCK
GRAY SCALE INVERSION DIRECTION N/A O'CLOCK
BACKLIGHT TYPE 18-DIES WHITE LED
BRIGHTNESS 1000cd/m²
TOUCH PANEL TYPE CTP

Mechanical Drawing
