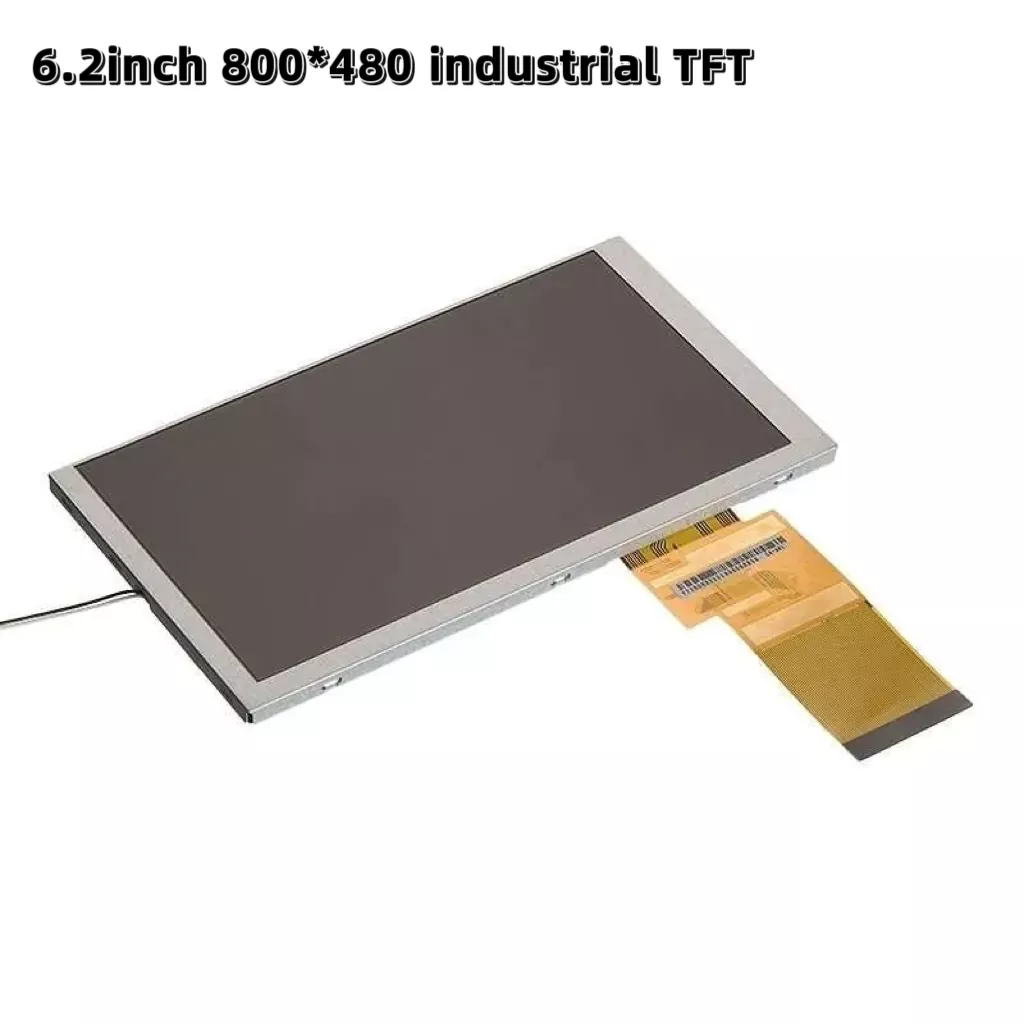

6.2 Inch 800x480 WVGA TFT LCD Module 24-Bit RGB - VXT620HWI-01
The VXT620HWI-01 is a 6.2-inch TFT LCD module with 800 x 480 WVGA pixels on a 24-bit parallel RGB interface, and its most useful property is not a headline number but how the optical table is written. Luminance is given as 400 minimum, 500 typical and 600 maximum. Contrast carries a 480 minimum against 600 typical. Uniformity is 70% minimum. The module runs on an ILI6123H and ILI5480. Ratings are -20 to +70 °C, and reliability runs 240 hours per condition with 100 thermal shock cycles and 100 G mechanical shock.
Model:VXT620HWI-01
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Industrial HMI and operator panels — 24-bit RGB suits controllers with an LCD peripheral, and 240-hour testing suits a long service life.
- Portable and handheld instruments — 100 G shock and 100 thermal shock cycles.
- Test and measurement equipment — anti-glare for bench lighting, with stated minimums on every optical figure.
- Control panels and process displays — 16:9 active area in a compact 6.2-inch module.
- Medical devices and monitors — the 400 cd/m² minimum is a figure you can specify.
- Marine and vehicle instruments — the vibration and shock ratings are the relevant ones here.
- Vending, kiosk and self-service terminals — anti-glare and a wide operating range.
| Item | Contents | Unit |
| Model |
VXT620HWI-01 |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE(W*H*T) | 155.2*88.2*5.00 | MM |
| ACTIVE SIZE(W*H) | 137.52*77.23 | MM |
| PIXEL PITCH(W*H) | 0.1926*0.1790 | MM |
| NUMBER OF DOTS | 800*480 | |
| DIVER IC | ILI6123H+ILI5480 | |
| INTERFACE TYPE | RGB | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | 6 | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 12 | O'CLOCK |
| BACKLIGHT TYPE | 18-CHIP WHITE LED | |
| Luminance |
500 typ / 600 max cd/m² |
|
| Backlight power | 1.152 W | |
|
Operating temperature |
−20 to +70 °C |
|
|
Storage temperature |
−30 to +80 °C |
|

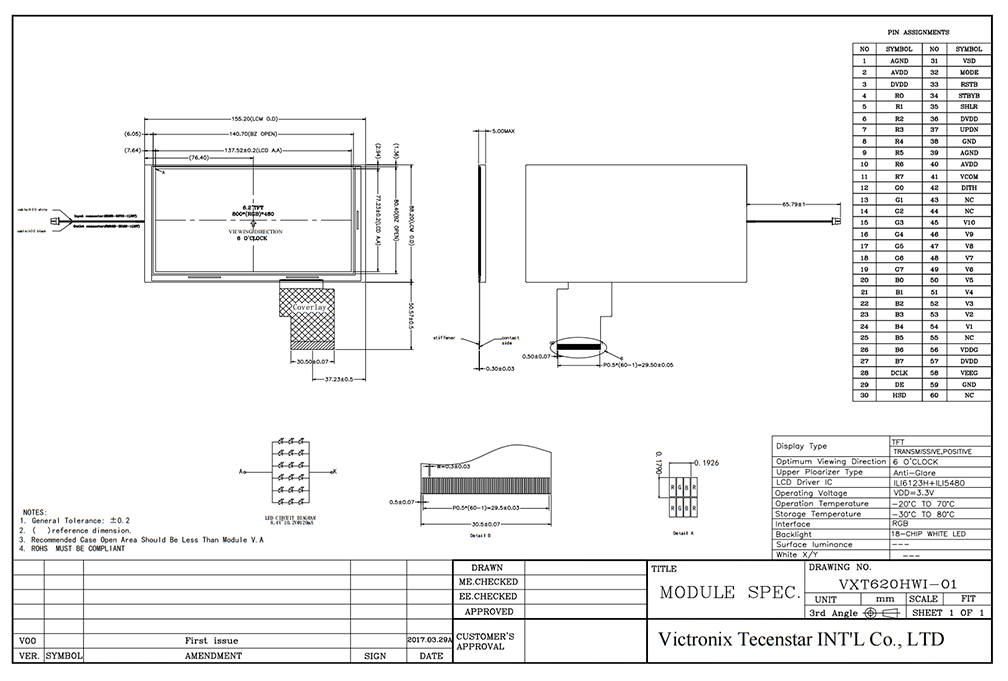

Mechanical Drawing
