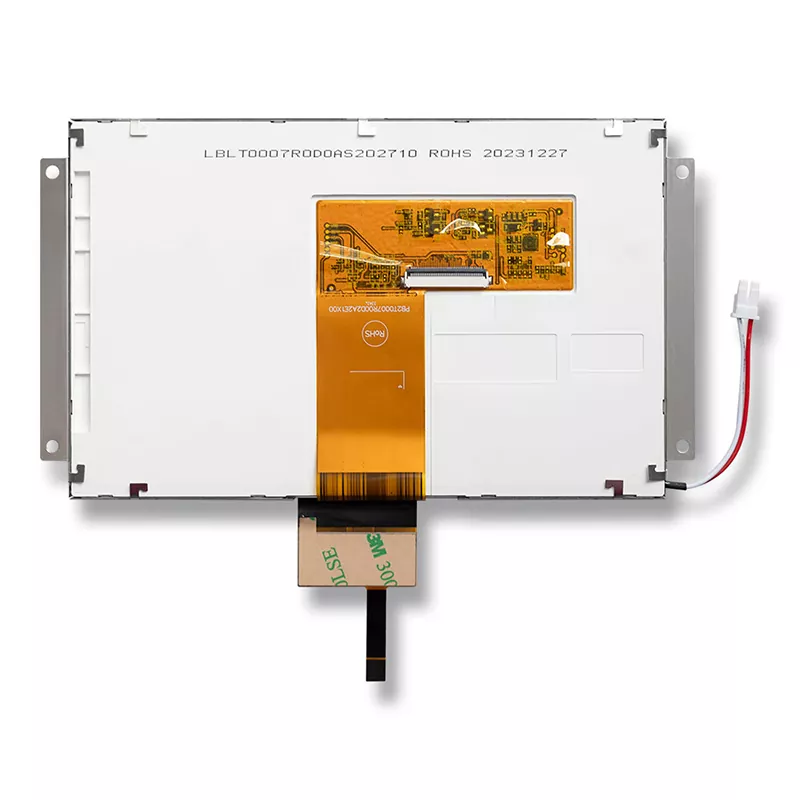

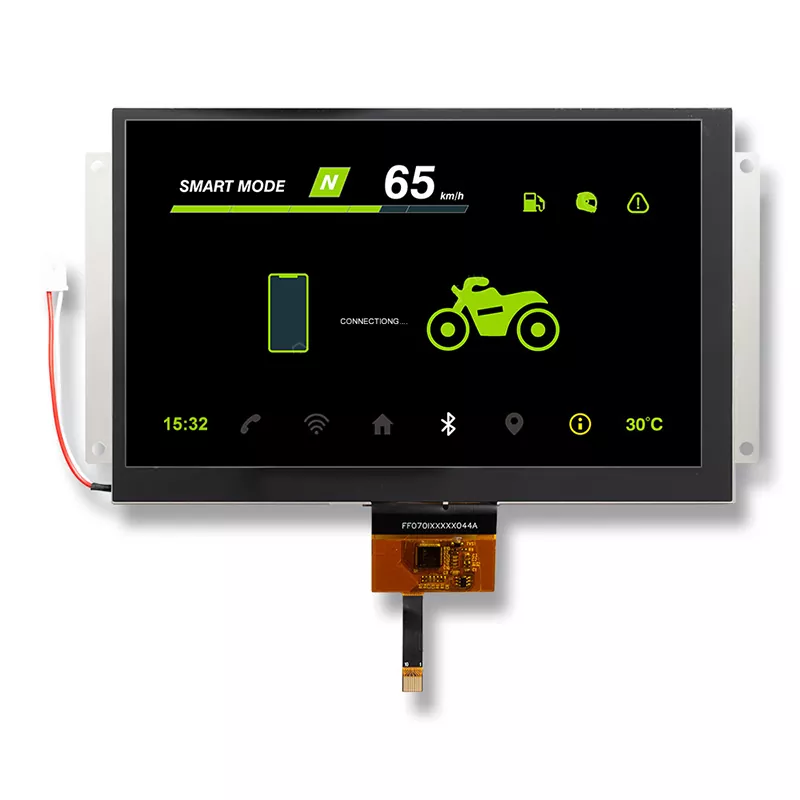

7.0" 800x480 Wide Temperature IPS TFT Module

The Victronix VXT700SWHW-01 is rated to +85°C, and down to -30°C — a 15°C wider window at the top and 10°C at the bottom than the usual industrial range. That difference is what lets a display live in a sealed enclosure under a hot roof, next to a power stage, or in a vehicle parked in direct sun, without a heater or a fan. Helping it along is a genuinely low power draw: just 100 mA typical at 3.3 V, about 0.33 W for the panel logic, so the module adds little heat of its own to an already hot box. The 800 x 480 panel uses square 0.1905 mm pixels for undistorted graphics, connects over single-channel LVDS on a compact 20-pin I-PEX or JAE connector, and offers MODE (6/8-bit) and SC (scan direction) control pins plus a separate 6-pin backlight connector with BLEN enable and VPDIM PWM dimming.

Model:VXT700SWHW-01

Send Inquiry PDF DownLoad

Product Description

Where Extreme Ratings Stop Being Optional

These are the applications where -30°C to +85°C is the requirement rather than a nice-to-have, and where a standard industrial panel forces a workaround:

Automotive and commercial vehicles — dashboards, instrument clusters, telematics and fleet terminals. A cabin in direct sun is one of the most demanding environments a display regularly meets.
Agricultural and construction machinery — tractor, harvester and excavator cab terminals that sit in the sun all day and start before dawn in cold weather.
Outdoor equipment and enclosures — traffic and roadside cabinets, environmental monitoring, outdoor power and telecom equipment with no climate control.
Oil, gas and mining — skid-mounted and field equipment in desert or high-temperature climates, where ambient ratings are audited rather than assumed.
Solar inverters and energy storage —逆变器 cabinets and battery enclosures run warm by design, and the display shares that space.
EV charging piles — curbside units in hot climates, sealed against weather, with the display behind a window that gains solar load.
Railway rolling stock — passenger information, driver consoles and wayside equipment with wide seasonal and geographic spread.
Fanless industrial PCs and HMIs — sealed panels where convection is the only cooling, so every watt counts.

Storage range is -35°C to +85°C, with humidity up to 85% RH at or below 40°C. Above 40°C, absolute humidity must stay below the level corresponding to 85% RH at 40°C — worth noting for sealed enclosures that see condensation.

General Specifications

Item	Contents	Unit	Note
Model	VXT700SWHW-01
Module Size	7.0 inch
LCD Type	TFT	-
Display color	16.7
Viewing Direction	ALL	O’Clock
Grayscale inversion direction	ALL	O’Clock
Operating temperature	-30~+85	℃
Storage temperature	-35~+85	℃
Module size	7.0	inch
Active Area(W×H)	152.40x91.44	mm
Number of Dots	800x480	dots
Controller	HX8249-A02 & HX8678-C01	-
Power Supply Voltage	3.3	V
Outline Dimensions	169.80x109.70x8.9	mm
Signal Connector	20-pin — I-PEX 20186-020E-11F or JAE FI-SEB20P-HFE
Backlight Connector	6-pin — JAE FI-S6P-HFE
Backlight Control	BLEN enable, VPDIM PWM dimming
Interface	LVDS	-
Operating Temperature	-30°C to +85°C
Storage Temperature	-30°C to +85°C
Humidity	≤85% RH at ≤40°C

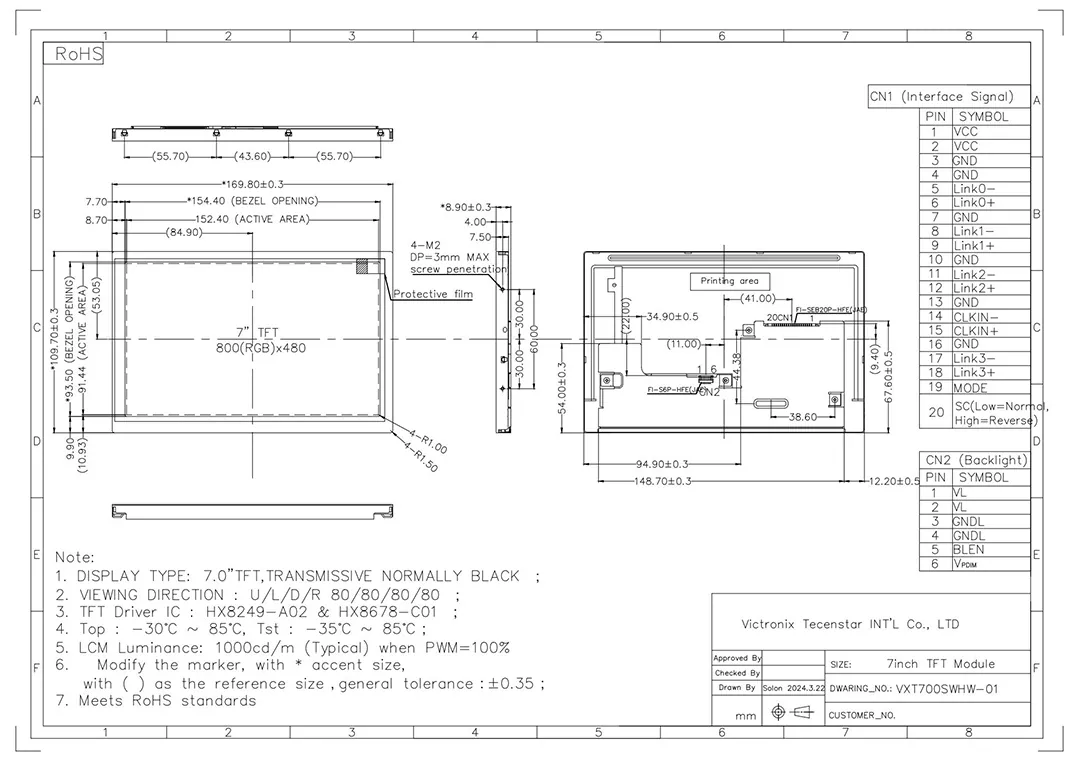

Outline Drawing
