7.0 Inch 1024x600 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT700AEA-24C
  • 7.0 Inch 1024x600 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT700AEA-24C7.0 Inch 1024x600 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT700AEA-24C
  • 7.0 Inch 1024x600 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT700AEA-24C7.0 Inch 1024x600 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT700AEA-24C

7.0 Inch 1024x600 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT700AEA-24C

This Victronix 7 inch 1024x600 MIPI IPS Touch TFT Module is a high-performance 7 inch TFT-LCD module with integrated capacitive touch panel (CTP). Engineered for reliability in demanding environments, this module combines a BOE-sourced IPS panel with 1024 × 600 resolution and 16.7 million colors for vivid visuals and wide viewing angles (80° at Cr≥10 at all directions). As a professional manufacturer and supplier of TFT modules in China, Victronix 7 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT700AEA-24C

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Industrial HMI and machine control panels — 1024 × 600 over MIPI DSI, with 10-point touch, from an applications processor.
  • Handheld and portable field instruments — two rails, no gate rail, and a standby that shuts the drivers down.
  • Point-of-sale and payment terminals — touch and display on separate, clearly defined connectors.
  • Access control, intercom and door panels — a keypad or directory view with touch.
  • Kiosk, vending and ticketing terminals — indoor, with a ≥6H surface.
  • Medical devices and portable monitors — 614,400 pixels for dense readouts, and a wipe-clean glass surface.
  • Smart home and building control panels — where the 2.0 mm cover glass and ≥85% transparency matter.
  • Test and measurement equipment — provided the UI is pre-corrected for the pixel aspect.
  • Factory automation panels — −20 to +70 °C covers most indoor industrial ambient.
  • Android and embedded Linux projects — a standard 4-lane DSI panel with a standard FT5426 touch controller.

Specification

Item Contents Unit Note
LCD Type TFT

LCD Brand BOE
Display color 16.7M
Viewing Direction ALL O'Clock 1
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃

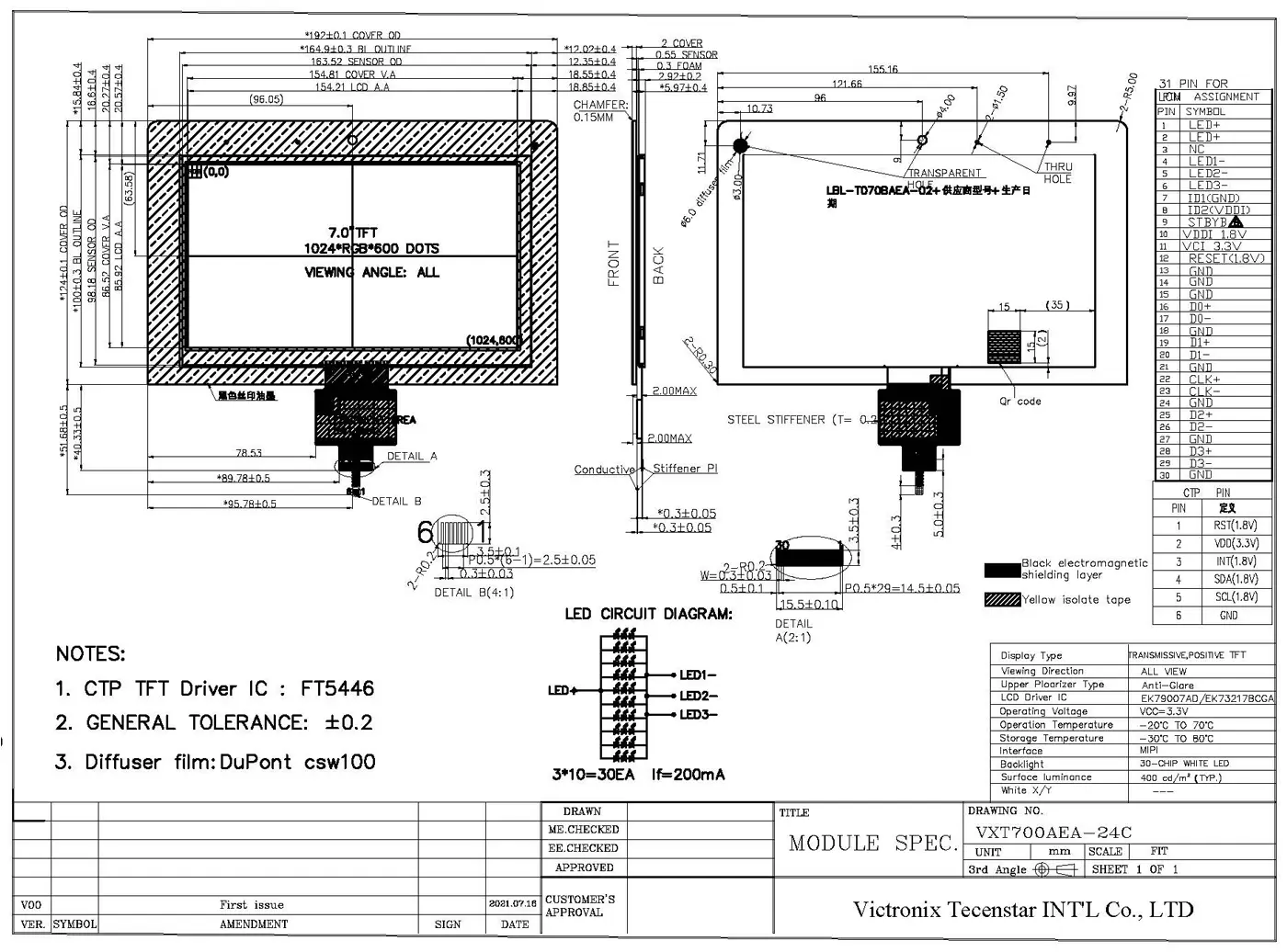

Module size 192.00x124.00x5.97 mm 2
Active Area(W×H) 154.21X85.92 mm
Number of Dots 1024*600 dots
LCM Controller EK79007AD/EK73217BCGA
Power Supply Voltage 1.8&3.3 V
Backlight 30-LEDs (white) pcS
LED Brand/Part No.  HuiChenXin/TY020/TC4
Weight --- g
Interface MIPI-4lanes


Item Specification Remarks
Outline Dimension 192.10×124.00 mm
Total Thickness 2.85  mm
View Area 154.81×86.52 mm
TP size 7  inch
Interface Type IIC
Operation Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Glass Thickness 2.0
Resolution 1024*600 Dots
Input force <10g
Surface hardness ≥6H
Control IC FT5426
Touch Point 10  point
Reporting Rate >100 Hz
Jitter <1 mm
Transparency ≥85%
Connection Type FPC(COF)
Win8 Certified No

7 inch 1024x600 MIPI IPS Touch TFT Module
