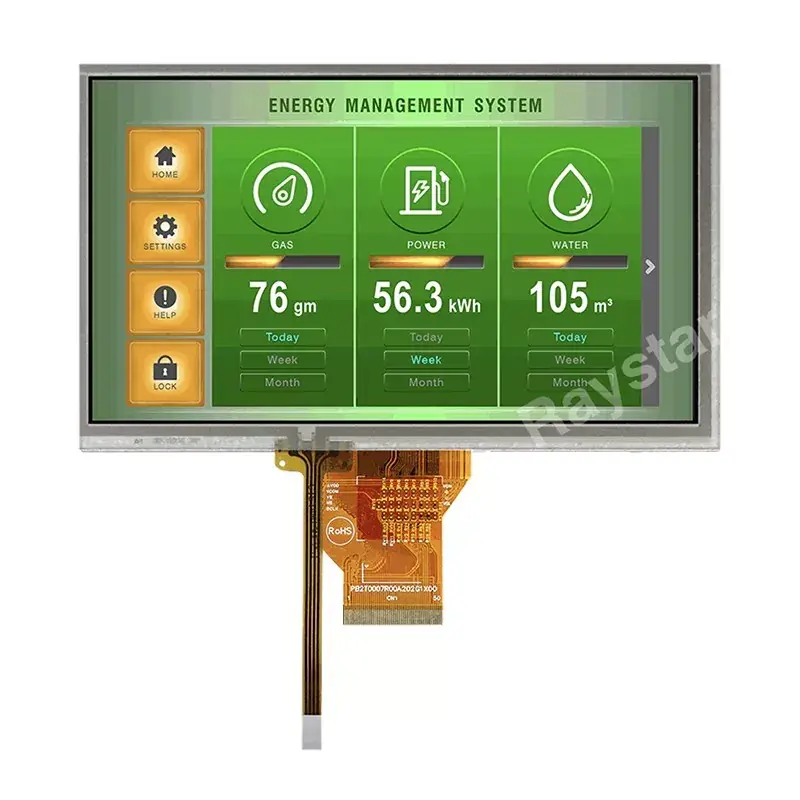

7.0 Inch 800x480 TFT LCD Module RGB Interface with Touch Panel - VXT700WHA-02P
  • 7.0 Inch 800x480 TFT LCD Module RGB Interface with Touch Panel - VXT700WHA-02P7.0 Inch 800x480 TFT LCD Module RGB Interface with Touch Panel - VXT700WHA-02P

7.0 Inch 800x480 TFT LCD Module RGB Interface with Touch Panel - VXT700WHA-02P

The Victronix VXT700WHA-02P​ is a 7.0-inch 800 × 480 TFT LCD module with a touch panel, driven by MOS_CHIP_G424A​ over an 18-bit parallel RGB interface on a 40-pin 0.5 mm Hirose FH19-40S-0.5SH connector. The reason to look at it is the interface freedom.​ A MODE pin selects between DE mode and SYNC mode, so it works with hosts that emit DE and hosts that emit only HS and VS. L/R and U/D give hardware scan inversion.​ And full numeric timing is published​ — 860 clocks by 528 lines at 27.2 MHz, which is exactly 60 Hz.

Model:VXT700WHA-02P

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Industrial HMI and machine control panels — 800 × 480 from a host with an RGB peripheral, in either DE or SYNC mode.
  • Retrofits into existing equipment — a MODE pin and scan straps mean fewer host changes.
  • Handheld and portable field instruments — 450 cd/m² and PWM dimming.
  • Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
  • Point-of-sale and payment terminals — with the touch panel, on its own FPC.
  • Access control, intercom and door panels — a keypad or directory view.
  • Kiosk, vending and ticketing terminals — indoor.
  • Medical devices and portable monitors — clean geometry for dense readouts.
  • Factory automation and smart home control panels — −20 to +70 °C covers most indoor industrial ambient.
  • Projects where artwork fidelity matters — exactly square pixels, exact 5:3, no pre-correction.

General Information

ltem Contents Unit Note

Model

VXT700WHA-02P


LCD Type TFT
Display color 16.7M
Viewing Direction FREE O'Clock
Gray scale inversion direction 6  O'Clock
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Module size Refer to outline drawing mm
Active Area(W×H) 152.4X91.44 mm
Number of Dots 800x480 dots
Controller MOS_CHIP_G424A
Power Supply Voltage 3.3  V
Outline Dimensions Refer to outline
drawing

Backlight 3*8-LEDs (white) pCS

Brightness

450 cd/m2
Interface RGB Interface
