VA Negative Segment LCD Module with On-Board Driver, Serial Interface, 12-Pin - VX50023-TY057LA
  • VA Negative Segment LCD Module with On-Board Driver, Serial Interface, 12-Pin - VX50023-TY057LAVA Negative Segment LCD Module with On-Board Driver, Serial Interface, 12-Pin - VX50023-TY057LA

VA Negative Segment LCD Module with On-Board Driver, Serial Interface, 12-Pin - VX50023-TY057LA

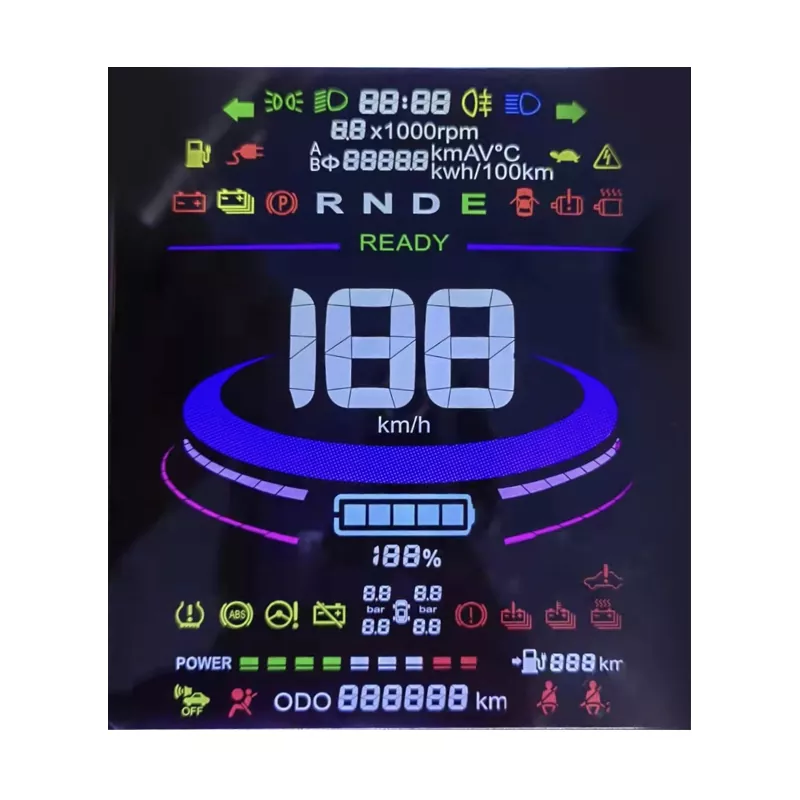

This Victronix Transflective Segment Color VA LCD Module is a sophisticated Color Vertical Alignment (VA) Liquid Crystal Display (LCD) Module, designed for applications requiring high segment count and advanced display capabilities. The module is centrally controlled by the UC2621c LCD driver IC, providing the necessary drive signals and interface management. This LCD module has 1/2D, 1/1B driver mode, and it operates from -30℃to +80℃. For industrial instruments, meters, handheld devices, smart home, bicycle, motor and e-car manufacturers.

Model:VX50023-TY057LA

Send Inquiry    PDF DownLoad

Product Description

General Information

Item Value
Model VX50023-TY057LA
Type Monochrome segment LCD module
Display type VA 6:00 TRANSMISSIVE, NEGATIVE
Viewing direction 6 o'clock
Polarizer Transmissive, negative
Driver IC UC2621C (COG — chip on glass)
Connector COG / FPC
Operating temperature −30 °C to +80 °C
Storage temperature −40 °C to +80 °C
LCD operating voltage VOP = VDD = 5.0 V
Logic supply VDD 5.0 V
LCD bias supply VLCD, pin 2 — relationship to VDD not stated
Drive mode 1/2 duty
Connector pins 12
Pins 1 SIGNAL GND · 2 VLCD · 3 VSS · 4 SCL · 5 SDO · 6 EVENT · 7 RSTB · 8 VDD · 9–11 NC · 12 GND
Grounds 3 — 1, 3, 12
Reset RSTB, pin 7, active low

Where It Gets Used

  • The content — ×1000 rpm, km/h, ODO, a 000 km trip field, R/N/D/E, READY, POWER, a percentage and FRONT — is a vehicle instrument cluster, and the VA negative construction with a −30 to +80 °C range is chosen precisely for that duty.
  • Electric motorcycle and scooter dashboards — speed, distance, READY and state of charge on a black face.
  • Electric vehicle and low-speed vehicle clusters — gear or drive-mode selection with POWER and READY.
  • Passenger car and commercial vehicle instrument panels — tachometer and speedometer with odometer and trip.
  • Construction, agricultural and special-purpose vehicle clusters — where the −30 to +80 °C range earns its place.
  • Generator sets, compressors and engine-driven equipment panels — rpm and hours or distance on one glass.
  • Marine and powersport instrument clusters — high-contrast VA negative stays readable in changing light.
  • Aftermarket and replacement cluster assemblies — a custom glass built to an existing layout.

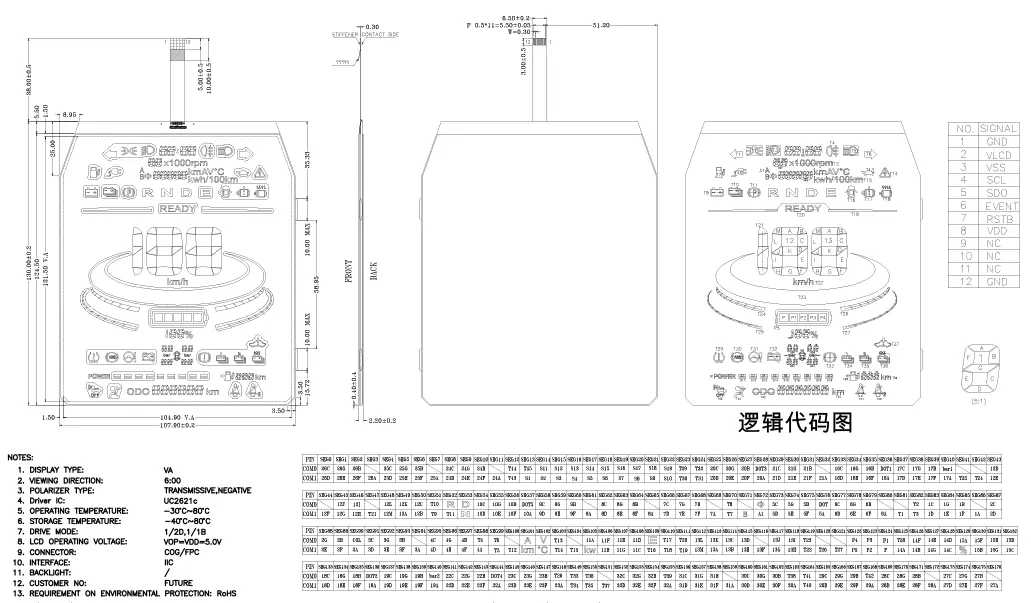

Outline Drawing

Color VA LCD Module

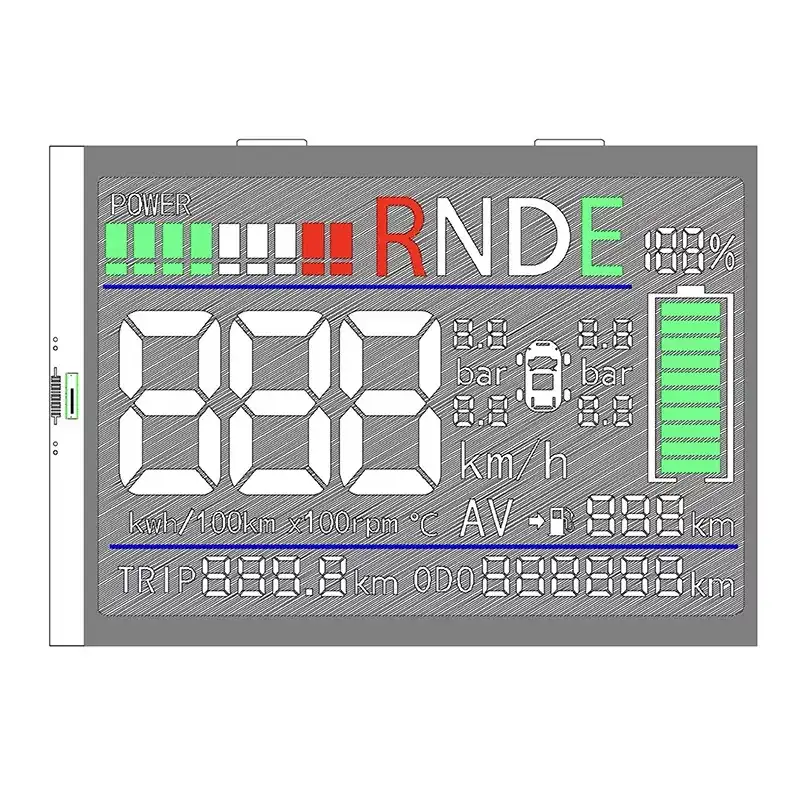

Related Category
