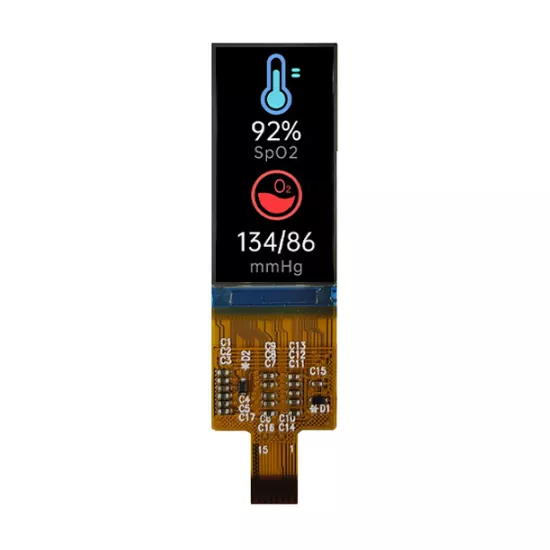

0.95 Inch 120x240 AMOLED Display Module for Smart Band with Touch - VXO-095AMA-107
The VXO-095AMA-107 is a 0.95-inch AMOLED in a 1:2 portrait format — the only display in our range shaped for a band rather than a watch. Its active area is 10.8 x 21.6 mm, exactly twice as tall as wide, which is the geometry a fitness band needs: it fits the strap, not a round case. It is also the smallest display we make, and it integrates touch with its own supply rail. Like our 1.19-inch AMOLED it has no backlight, giving 80,000:1 contrast, and it is brighter and faster — 450 cd/m² and 60 Hz against 350 and 45. About 0.055 W at full white, 0.1 µA deep standby. RM69310, SPI, -20 to +70°C.
Model:VXO-095AMA-107
Send Inquiry PDF DownLoad
Product Description
The Small Display Has Touch
Integrated touch matters more than it looks at this size. A band has no room for a separate touch panel bonded on top, and a 0.95-inch screen is far too small for physical buttons to carry much of the interface. Having touch specified on the module — with its own supply rail at 2.8 or 3.3 V and a current of 1.5 mA typical — means the interaction layer is part of the module rather than an extra assembly.
The glass is thin: 0.78 mm total, from 0.2 mm LTPS and 0.31 mm encapsulation. On a band, where the display sits close to the skin and the whole device has to stay slim, that is the point.
Where It Gets Used
-
Fitness bands and activity trackers — the stated application; 1:2 portrait fits a strap.
-
Wristband devices — narrow enough to sit along the band rather than across it.
-
Wearable medical monitors — pulse, oxygen, temperature, shown one reading at a time.
-
Small notification devices — a message preview, an icon, a time.
-
Bluetooth and IoT wearables — 0.1 µA standby between events.
-
Compact clip-on or strap-mounted gadgets — 0.78 mm thick, 10.8 mm wide.
-
Anything battery-powered that must last days — no backlight, about 0.055 W worst case.
GENERAL INFORMATION
| Item | Contents | Unit |
| Model |
VXO-095AMA-107 |
|
| Display Mode | AMOLED | / |
| LTPS Glass Outline(W×H×T) | 12.80×27.35×0.2 |
mm |
| Encapsulation Glass Outline(W×H×T) | 12.80×24.40×0.31 | mm |
| Active area (W×H) | 10.8×21.6 | mm |
| Number of Dots | 120×3(RGB)×240 | / |
| Diagonal Inch | 0.95 | inch |
| Pixel pitch (W×H) | 80×80 | um |
| Glass Thickness |
0.2 (LTPS) 0.31(Encap) |
mm |
| Total Thickness | 0.78 | mm |
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min | Max | Unit |
| Supply voltage (Display) | VCC | -0.3 | 5.5 | V |
| IOVCC | -0.3 | 5.5 | V | |
| ELVDD | 4.5 | 4.7 | V | |
| ELVSS | -4.0 | -0.6 | V | |
| Supply voltage (Touch) | VDD TP | -0.3 | 5.5 | V |
| Operating temperature | ToP | -20 | 70 | °C |
| Storage temperature | TsT | -30 | 80 | °C |
| Humidity | RH | 一 | 90 | %RH |
Note: Absolute maximum ratings means the product can withstand short-term, NOT more than 120 hours.
If the product is a long time to withstand these conditions, the life time would be shorter.

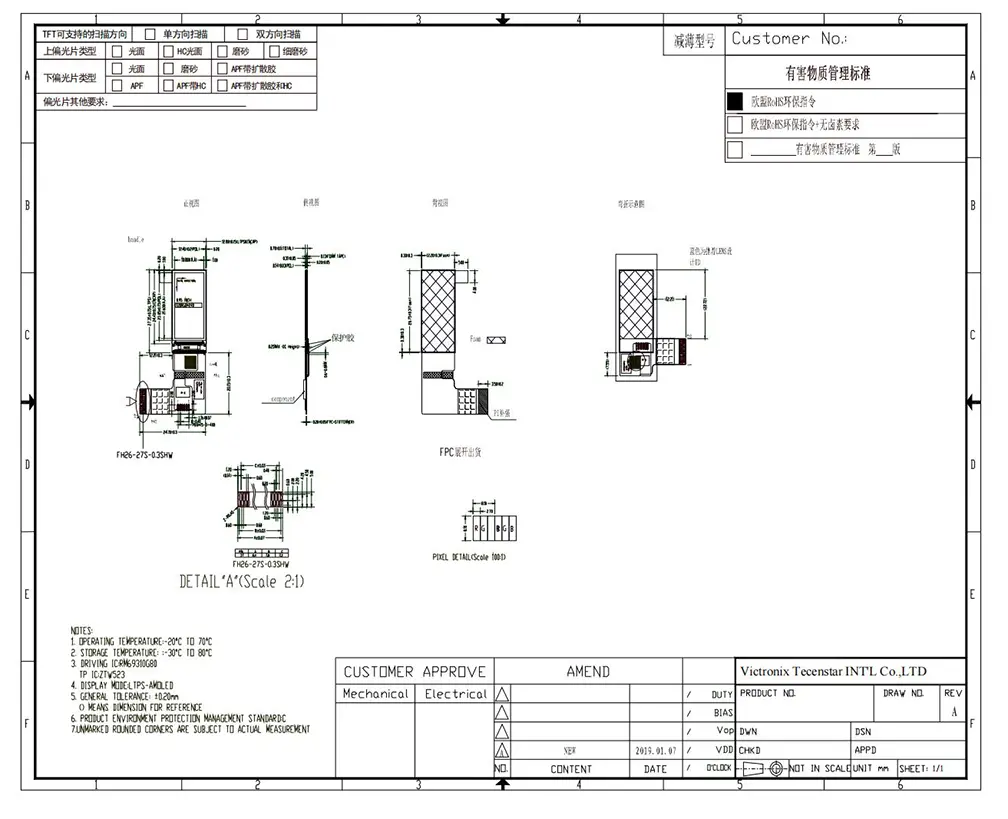

EXTERNAL DIMENSIONS
