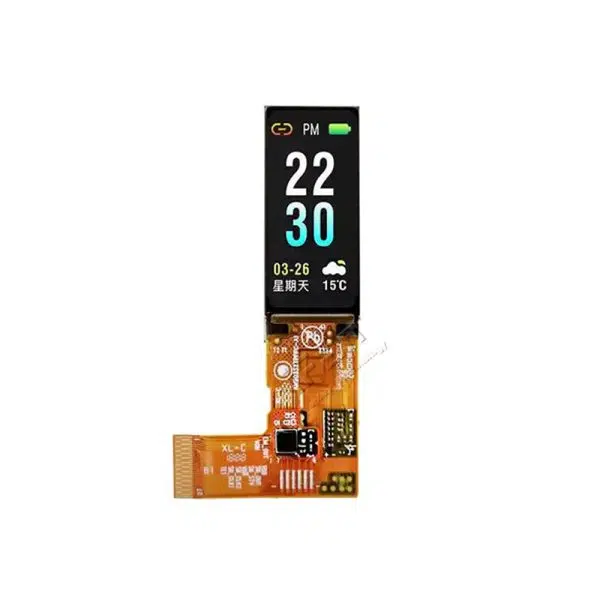

1.1 Inch 126x294 AMOLED Display Module for Smart Band with Touch - VXO-011AMA-097

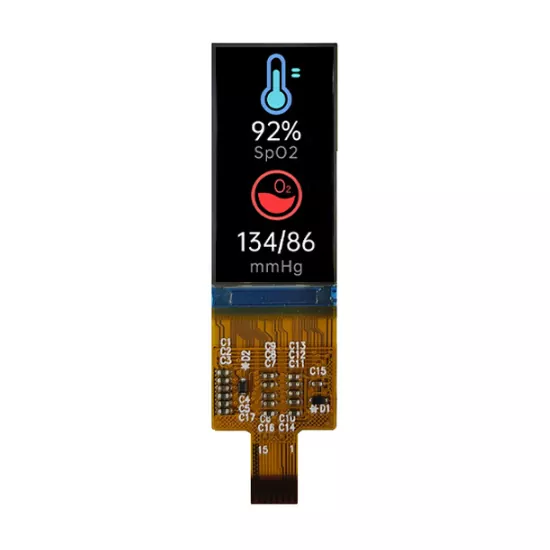

The VXO-011AMA-097 is a 1.1-inch AMOLED in a 7:3 portrait format — taller, relative to its width, than any other display we make. A band's width is fixed by the strap but its height is not, and against our 0.95-inch band module this panel gives 294 rows instead of 240: 22.5% more vertical content for 1.5% more width. Same driver, same interface, same touch — just more room to stack readings. It also has touch on its own independent supply rails, so the touch layer can stay awake while the display sleeps. No backlight, 60,000:1 contrast, 420 cd/m², about 0.058 W at full white. RM69310, SPI, -20 to +70°C.
Model:VXO-011AMA-097
Send Inquiry PDF DownLoad
Product Description
More Rows, Not a Wider Band
A band display is width-constrained in a way that almost no other display is. The strap is a fixed width — make the screen wider and the device gets wider, which is uncomfortable and looks wrong. Height is the one dimension you can grow.
Where It Gets Used
- Fitness bands with more to show — time, steps, heart rate and a progress bar without crowding.
- Activity trackers — 7:3 portrait fits a strap, 294 rows gives room for a second metric.
- Wearable medical monitors — several readings stacked, each legible.
- Smart bands with tap-to-wake — independent touch rails let the gesture cost microamps.
- Bluetooth and IoT wearables — notification text needs vertical room more than width.
- Strap-mounted or clip-on devices — 12.96 mm wide glass, narrow enough for a band.
- Battery products that must last days — no backlight, about 0.058 W worst case.
GENERAL INFORMATION
| Item | Contents | Unit |
| Item |
VXO-011AMA-097 |
|
| Display Mode | AMOLED | / |
|
Touch |
Integrated — TSP VCC 2.8 V and TSP IOVCC 1.8 V, independent rails |
|
| LTPS Glass Outline (W×H) | 12.96×30.94 | mm |
| Encapsulation Glass Outline (W×H) | 12.96×30.94 | mm |
| Active area (W×H) | 10.962×25.578 | mm |
| Number ofDots | 126×3(RGB)×294 | / |
| Diagonal Inch | 1.09 | inch |
| Pixel pitch (W×H) | 87×87 | um |
| Glass Thickness |
0.2 (LTPS) 0.3105(Encap) |
mm |
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min | Max | Unit |
| Supply voltage (Display) | VCC | -0.3 | 5.5 | V |
| IOVCC | -0.3 | 5.5 | V | |
| ELVDD | 0.0 | 6.0 | V | |
| ELVSS | -6.5 | 0.0 | V | |
| Supply voltage (TP) | TSP VCC | -0.5 | 6 | V |
| TSP IOVCC | -0.5 | 6 | V | |
| Operating temperature | Top | -20 | 70 | 0C |
| Storage temperature | TsT | -30 | 80 | OC |
| Humidity | RH | 一 | 90 | %RH |
Note: Absolute maximum ratings means the product can withstand short-term, NOT more than 120 hours. Ifthe product is a long time to withstand these conditions, the life time would be shorter.

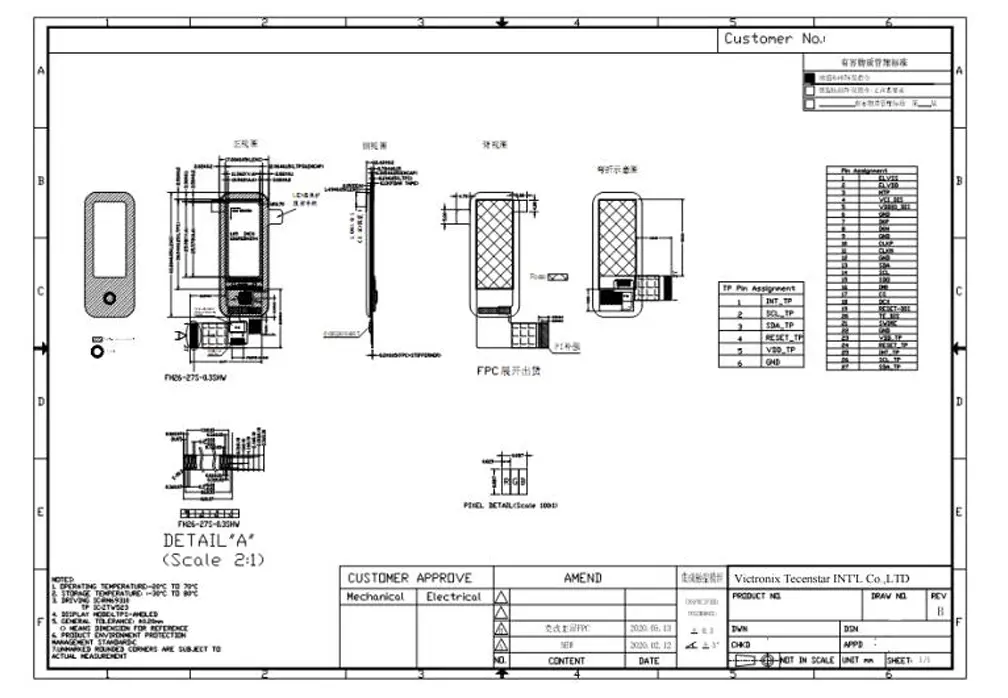

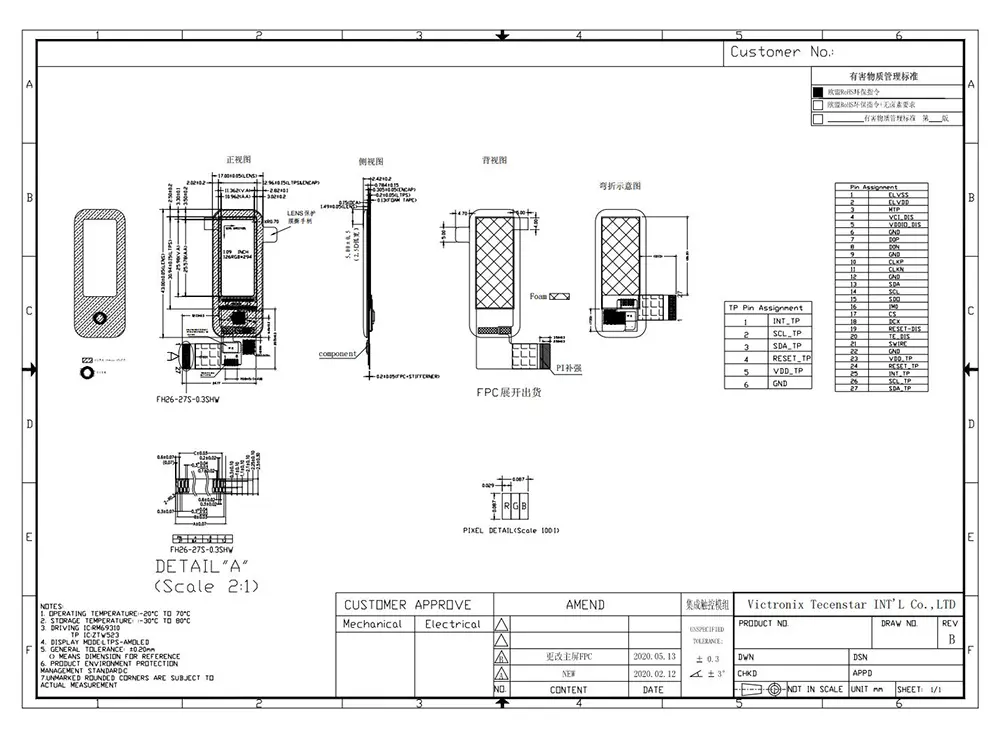

EXTERNAL DIMENSIONS
