10.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-02
  • 10.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-0210.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-02
  • 10.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-0210.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-02

10.1 Inch 1024x600 LVDS TFT LCD Module 16:9 - VXT101MBAH-02

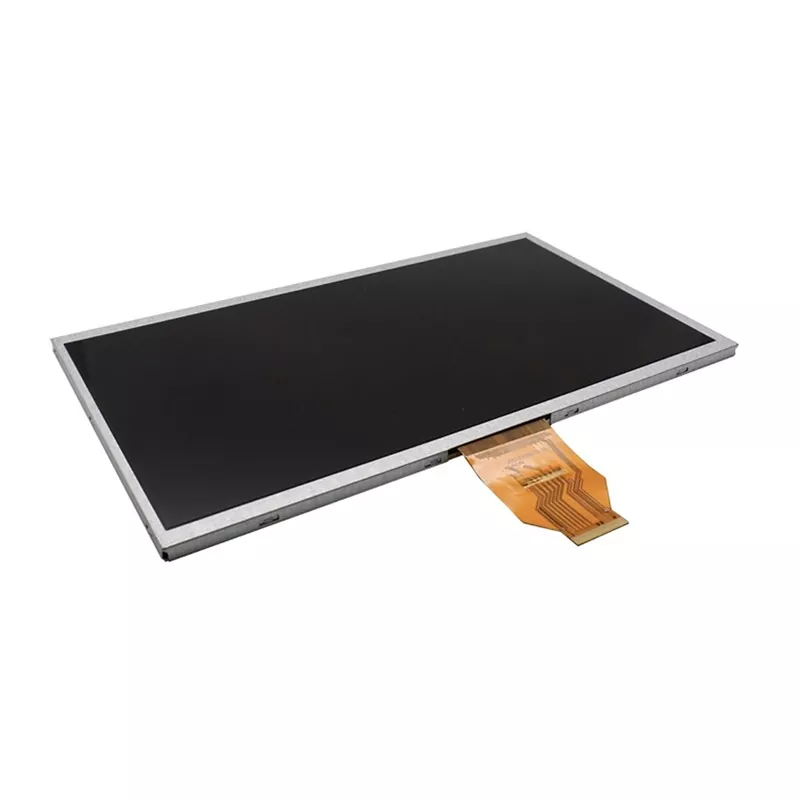

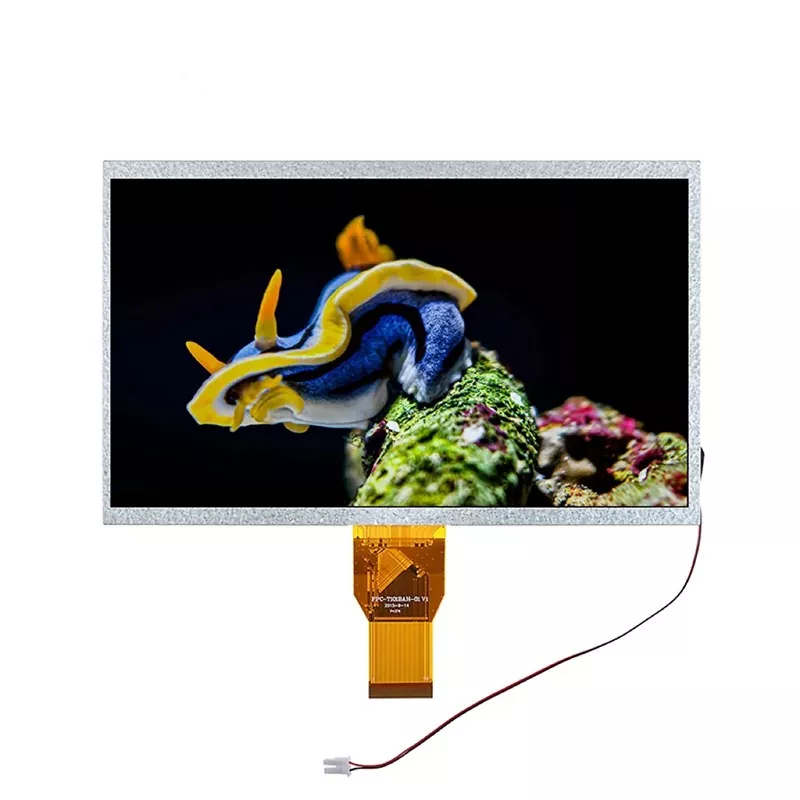

The VXT101MBAH-02 is a 10.1-inch TFT module with a 4-lane LVDS interface — the differential interface in our range. At 1024x600 with 16.7M colours, a parallel RGB bus would need around 28 signal lines switching at pixel-clock rates; LVDS carries the same payload over four data pairs and one clock pair, ten wires, with lower emissions and tolerance of real cable distance. It is a native 16:9 panel with a 222.72 x 125.28 mm active area, 380 cd/m² and 500:1 contrast. It needs five supply rails and 1.17 MB of external frame memory. Rated -20 to +70°C.

Model:VXT101MBAH-02

Send Inquiry    PDF DownLoad

Product Description

Where It Gets Used

  • Industrial HMI panels — 1024 × 600 suits a full SCADA or control screen.
  • Kiosks and self-service terminals — LVDS tolerates the distance between board and screen.
  • Medical monitors and carts — large format, low emissions.
  • Test and measurement instruments — 16:9 suits waveform and data views.
  • Vehicle and marine displays — -20°C cold end, dashboard and console formats.
  • Android or Linux SBC projects — LVDS is what those boards typically output.
  • Panel-mount terminals — 10.1-inch enclosures and windows exist as standard parts.

General Specifications

Item

Contents

Unit

Note

Model VXT101MBAH-02


LCD Type

TFT

-



Display color

16.7M





Viewing Direction

12

O'Clock



Gray scale inversion direction

6

O’Clock



Operating temperature

-20~+70

℃



Storage temperature

-30~+80

℃



Module size

Refer to outlinedrawing

mm



Active Area(W×H)

222.72X125.28

mm



Number of Dots

1024×600

dots



Controller

HX8282-A14 & HX8696

-



Power Supply Voltage

3.3

V



Outline Dimensions

Refer to outline

drawing

-



Backlight

3X13-LEDs (white)

pcs



Brightness

300 min / 380 typ cd/m²




Interface

LVDS

-

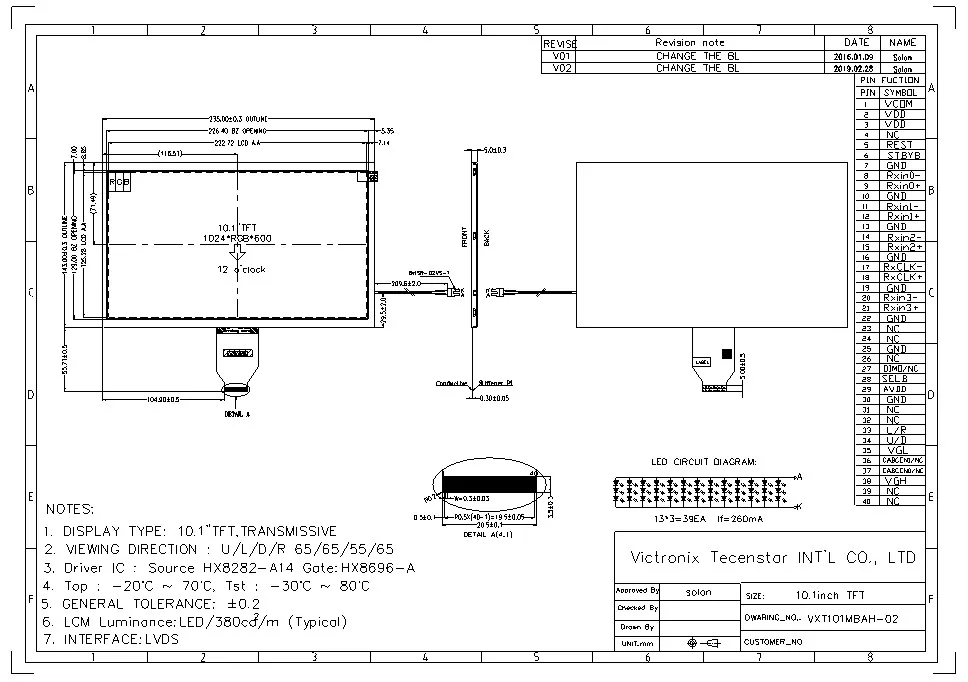

Outline Drawing
