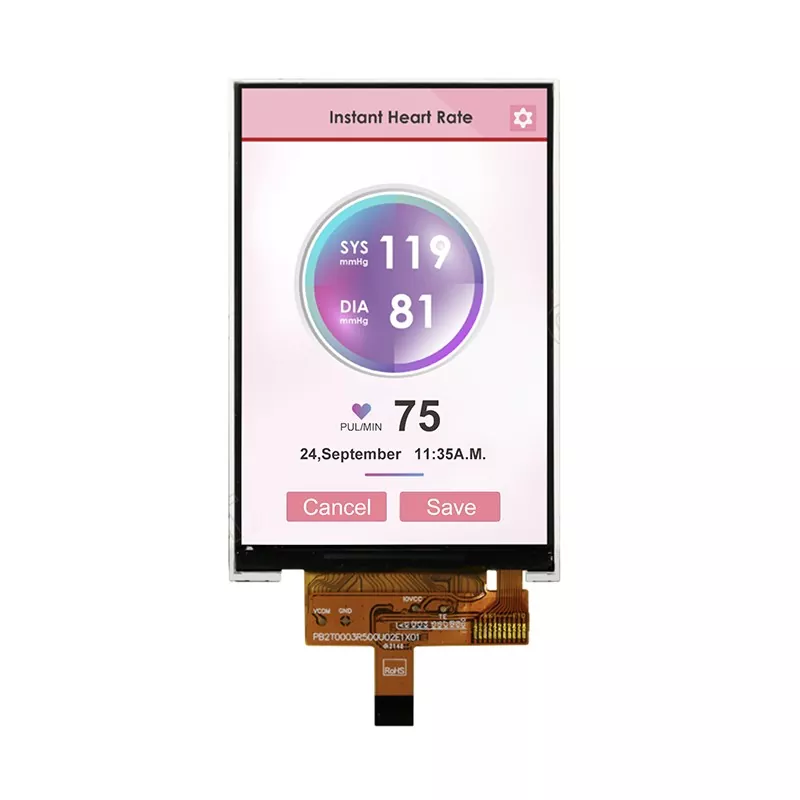

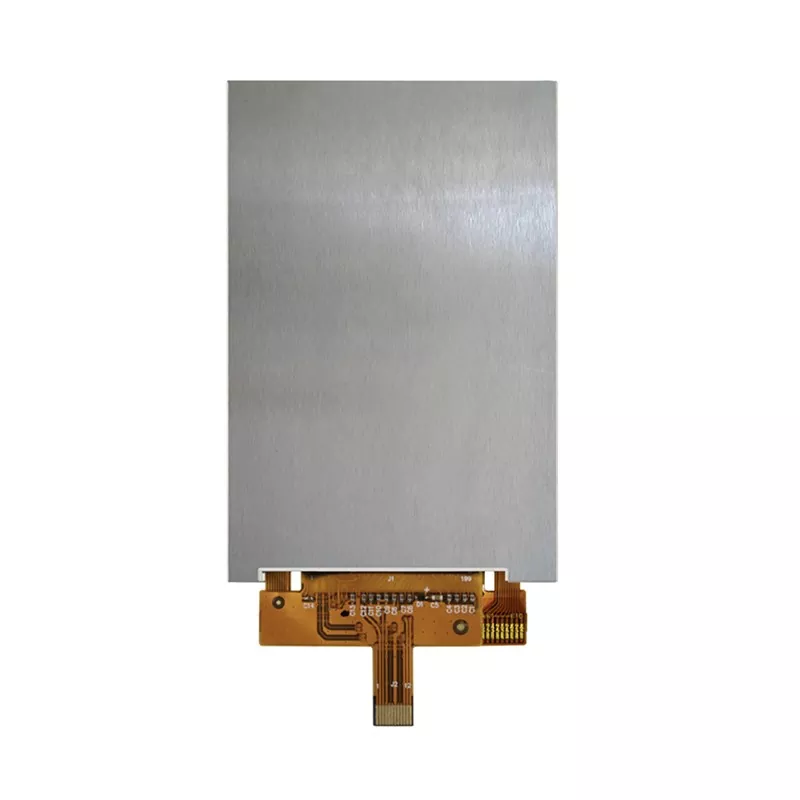

3.5inch 320x480 Portrait IPS TFT Module

TFT LCD is a type of liquid crystal display that uses thin-film-transistor technology to improve image quality and it has a wide range of applications in life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 3.5inch 320x480 Portrait IPS TFT Module different from other manufacturers? At first, its IPS technology ensures consistent color and clarity with an 80-degree viewing angle from all directions, 300 cd/m² typical brightness, and a high typical contrast ratio of 1000:1. Secondly, it integrates a backlight unit utilizing 6 LEDs with a typical lifetime from 20,000 to 50,000 hours (to 50% initial brightness) at 120mA drive current, ensuring clear visibility in all lighting conditions. Besides, it supports Multi-Interface including RGB Interface: supports 16-bit (RGB 565, 65K colors) or 18-bit (RGB 666, 262K colors) input, with DE (Data Enable) or HV (H/VSync) timing modes, SPI Interface: Compatible with both 3-line and 4-line Serial Peripheral Interface configurations for simplified control, and MCU Parallel Interface: Standard 8080-series parallel interface support. In addition, it passes rigorous environmental testing including High/Low Temperature Storage & Operation, Temperature Cycling, and High Temperature/Humidity Operation, ensuring long-term performance under harsh conditions.

This Victronix 3.5 inch TFT module is widely used in Industrial HMI, Medical Devices, Test & Measurement Equipment, Portable Diagnostics, Embedded Systems, Control Panels, and more.

General Specifications

VXT350MHSA-08 3.5inch 320x480 Portrait IPS TFT Module is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 3.5¢¢ display area contains 320X480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

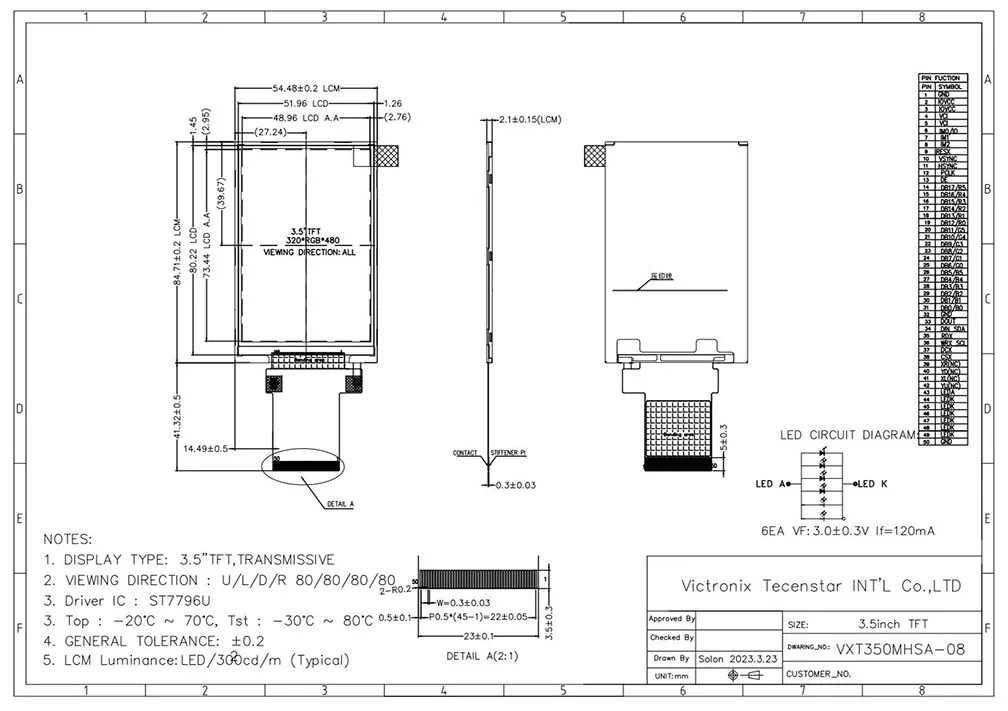

Outline Drawing
