4.3 Inch 480x272 TFT LCD Module RGB888 High Brightness - VXT430MPSA-16

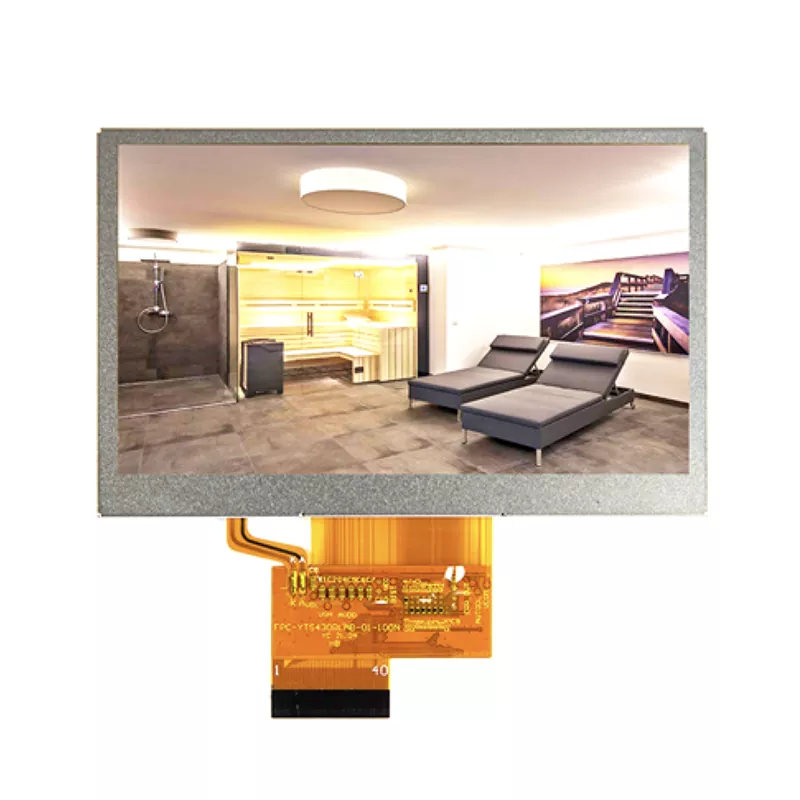

Victronix is a professional TFT module manufacturer and supplier in China. We have been in this field for 18 years and have developed several models. In addition to our standard products, we also offer a customized service to meet our customers' needs. This Victronix 4.3 inch automotive outdoor TFT module is a sturdy 4.3 inch TFT-LCD module designed for challenging automotive and outdoor applications. Combining high-brightness display technology with extended temperature resilience, this module delivers exceptional visual performance in harsh environments. Featuring a 480×RGB×272 resolution with 16.7 million colors within a compact 95.04×53.86 mm active area, it provides crisp visuals with wide viewing angles up to 80° (CR>10) in all directions.

Model:VXT430MPSA-16

Send Inquiry PDF DownLoad

Product Description

Where It Gets Used

Industrial HMI and control panels in bright interiors — 1000 cd/m² where a 350 cd/m² panel washes out.
Outdoor equipment under shade or behind a bezel — kiosks, vending machines, charging stations, ticketing terminals.
Vehicle and marine instrument consoles — cabins and helms where ambient light is high.
Handheld and portable instruments — all-direction viewing means the orientation is the user's choice, not the display's.
Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
Medical devices and portable monitors — 480 × 272 is a resolution a great deal of instrument software already targets.
Microcontroller projects — 255 KB frame buffer with no external RAM, and a timing table you can configure from.
Replacement displays in existing 4.3-inch equipment — the same active area as the other 480 × 272 panel in our range, at three times the brightness.

General Specifications

ltem	Contents	Unit	Note
Model	VXT430MPSA-16
LCD Type	TFT
Display color	16.7M	-	1
Viewing Direction	ALL	O'Clock
Operating temperature	-30~+80	℃
Storage temperature	-30~+80	℃
Module size	Refer to outline drawing	mm	2
Active Area(W×H)	95.04X53.86	mm
Number of Dots	480x272	dots
Controller	ST7283-G4	-
Power Supply Voltage	3.3	V
Backlight	8X2-LEDs	pcS
Brihtness	1000 cd/m²
Interface	RGB888	-

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder .

Outline Drawing
