4.3 Inch G+G Capacitive Touch Panel for 480x272 Displays - CTP-T430GF-04

EETI EXC3146

The controller is an EETI EXC3146, driving up to five simultaneous touch points over I2C. EETI has a long history in touch controllers, particularly in applications where the panel has to work across several operating systems without a custom driver — their parts are widely deployed in kiosk, POS and industrial-terminal products, and driver support for Windows, Linux and Android is generally available rather than something you have to write.

For this panel, the practical path is the same as any I2C touch device: wire VDD, ground, SDA, SCL, and use RST and INT if you want reset control and interrupt-driven operation. Confirm the address with us, and tell us your platform if you want a working reference — EETI parts are common enough that we can usually point you at one.

Where It Gets Used

• Indoor terminals and kiosks — reception, queue, information and self-service screens in conditioned buildings.
• Portable and handheld instruments — the 1.4 mm stack and small outline suit carried equipment.
• Control panels and instrumentation — bench equipment, process controllers, test and measurement.Commercial and retail equipment — counter units, operator screens, customer-facing ordering displays.Smart home and building control — wall panels, intercom, room controllers.
• Embedded and maker projects — 480 × 272 is a format many small single-board computers drive natively.
• Medical and laboratory devices — indoor clinical equipment, with glove-tolerant tuning available on request.

Specifications

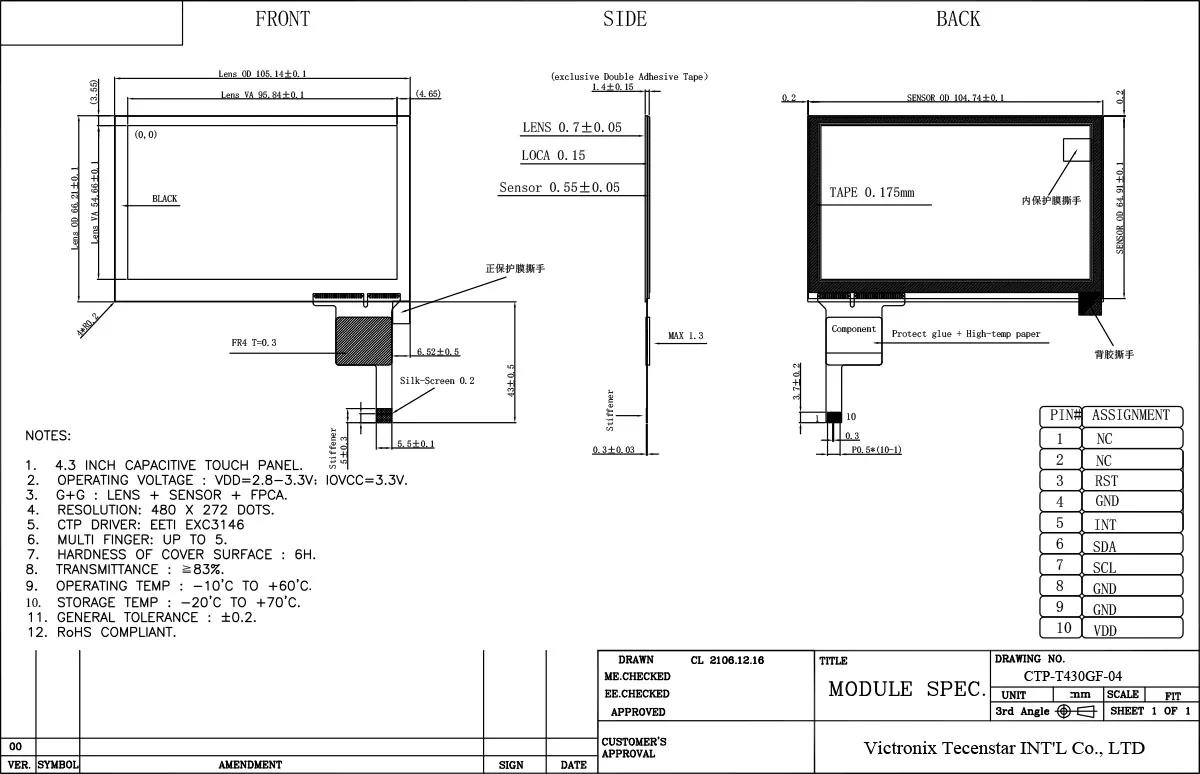

Outline Drawing
