7 inch 1080×1080 Round IPS TFT LCD

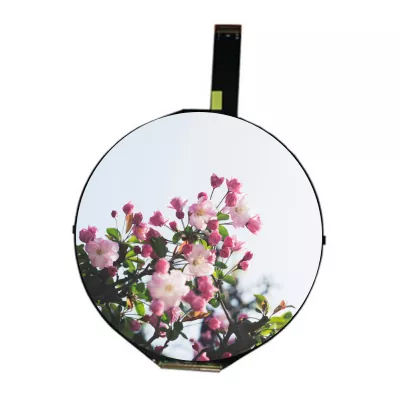

The VXT700TOSA-01 brings a circular display format to digital dials, status indicators and distinctive product interfaces. Its 1080×1080 resolution and 4-lane MIPI connection support detailed graphics designed around a central focal point.

Model:VXT700TOSA-01

Send Inquiry PDF DownLoad

Product Description

This Victronix 7 inch TFT Module is suitable for Industrial HMIs, embedded systems, portable diagnostic equipment, and any application requiring a durable, high-resolution square display.

LCD Parameter

Model	VXT700TOSA-01
Display Type	Round TFT LCD
Screen Size	7.0 inch
Resolution	1080 × 1080 pixels
Display Mode	Normally black, transmissive
Display Colors	16.7 million
Active Display Diameter	177.55 mm
Outline Dimensions (W × H × T)	186.25 × 191.38 × 5.06 mm, excluding FPC and solder
Brightness	500 cd/m² (typ.); 400 cd/m² (min.), per optical specification
Contrast Ratio	800:1 (typ.); 600:1 (min.)
Viewing Angle (L/R/U/D)	80°/80°/80°/80° (typ., CR ≥ 10)
Response Time (Tr + Tf)	20 ms (typ.); 25 ms (max.)
Brightness Uniformity	70% (min.)
Color Gamut	55% NTSC (typ.)
Display Interface	4-lane MIPI
Display Connection	30-pin FPC
TFT Controller	30-pin FPC
TFT Controller	FL5893DC
LCD Supply Voltage	3.3 V
Backlight Color	White
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder

A Circular Canvas for Product Design

The VXT700TOSA-01 gives designers a round viewing area for interfaces built around a central reading or graphic. Digital dials, progress rings and radial indicators can follow the screen's shape, creating a distinctive presentation for equipment data and product information.

Graphics That Follow the Form

Potential applications include instrument faces, appliance status displays and circular information panels. Place essential text and controls within the visible circle, and use the surrounding area for scales, icons or graphical status cues.

Preparing for Integration

The module connects to a compatible host through MIPI and requires an appropriate LED backlight drive. Check the host's display timing and initialization support, and allow space for the module outline and FPC when designing the enclosure. The circular viewing area and the overall mechanical dimensions serve different purposes and should both be considered during installation.

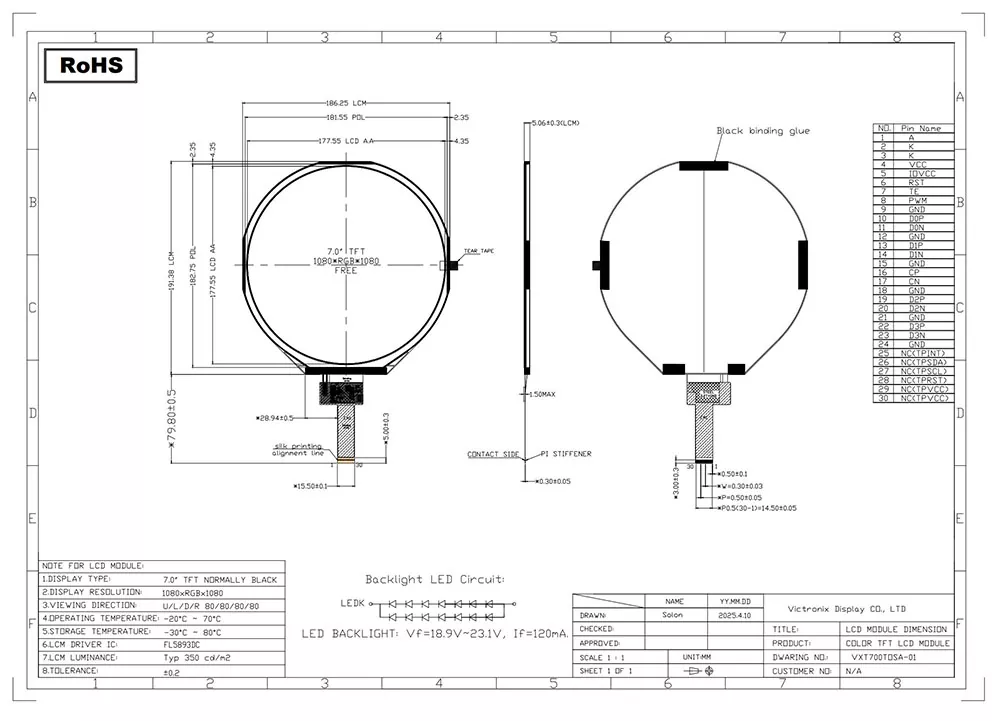

Outline Drawing
